GALVANISED STREET LIGHTING COLUMS
Our Galvanised Street Lighting Columns
Gemma Lighting stock and deliver a comprehensive collection of 3M, 4M, 5M, 6M, 8M, 10M and 12M galvanised street lighting columns and heavy duty solar street lighting columns (Poles / Lamp Posts), for roads, car parks and urban landscapes.
When lighting columns are purchased from Gemma Lighting we can support you to match the correct LED luminaire and lighting brackets.
Most of our galvanised lighting columns are available off the shelf for delivery within 7 days.
A selection of our most popular street lighting columns (Poles / Lamp Posts) are listed. However, please contact our sales team for further information.
Note: All galvanised lighting columns are designed with the European standard BS EN40 for lighting columns and manufactured from steel tube to EN10210.
Tubular Galvanised Street Lighting Columns (Root Mounted)
| Code |
 Size |
 Dia ∅ |
 Dia ∅ |
 Dia ∅ |
Door Opening |
 Size |
|---|---|---|---|---|---|---|
| 3TC-RM-76 | 3m | 140mm | 76mm | N/A | 500x100 | 800mm |
| 4TC-RM-76 | 4m | 140mm | 76mm | N/A | 500x100 | 800mm |
| 5TC-RM-76 | 5m | 140mm | 76mm | N/A | 500x100 | 800mm |
| 6TC-RM-76 | 6m | 140mm | 76mm | N/A | 500x100 | 1000mm |
| 8TC-RM-89-76 | 8m | 168mm | 89mm | 76mm | 600x115 | 1200mm |
| 10TC-RM-114-101 | 10m | 168mm | 114mm | 101mm | 600x115 | 1500mm |
| 12TC-RM-140-127 | 12m | 192mm | 140mm | 127mm | 600x115 | 1700mm |
Tubular Galvanised Street Lighting Columns (Flange Plate Mounted)
| Code |
Size |
Dia ∅ |
Dia ∅ |
Dia ∅ |
Door Opening | Bolt Code |
|---|---|---|---|---|---|---|
| 3TC-FP-76 | 3m | 140mm | 76mm | N/A | 500x100 | FIX-0034 |
| 4TC-FP-76 | 4m | 140mm | 76mm | N/A | 500x100 | FIX-0034 |
| 5TC-FP-76 | 5m | 140mm | 76mm | N/A | 500x100 | FIX-0034 |
| 6TC-FP-76 | 6m | 140mm | 76mm | N/A | 500x100 | FIX-0034 |
| 8TC-FP-89-76 | 8m | 168mm | 89mm | 76mm | 600x115 | FIX-0035 |
| 10TC-FP-114-101 | 10m | 168mm | 114mm | 101mm | 600x115 | FIX-0035 |
| 12TC-FP-140-127 | 12m | 192mm | 140mm | 127mm | 600x115 | FIX-0035 |
Tubular Galvanised Street Lighting Columns (Accessories)
| Code | Description |
|---|---|
| Keys: | |
| KEY-01 | 8mm Tri Head Column Key |
| Flange Plate Bolts: | |
| FIX-0034 | Flange plate bolt kit suitable for 3-6M tubular columns |
| FIX-0035 | Flange plate bolt kit suitable for 8-12M tubular columns |
| Flange Plate Stencils: | |
| FIX-0039 | Stencil for flange plate bolt pattern of 3M-6M tubular columns |
| FIX-0040 | Stencil for flange plate bolt pattern of 8M-12M tubular columns |

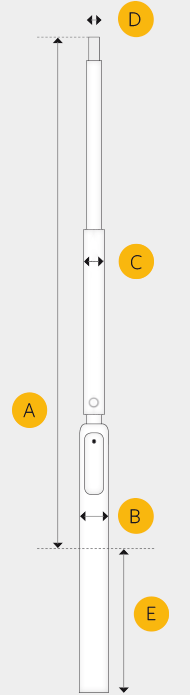

Mid-Hinged Tubular Galvanised Street Lighting Columns (Root Mounted)
| Code |
Size |
Dia ∅ |
Dia ∅ |
Dia ∅ |
Door Opening |
Size |
|---|---|---|---|---|---|---|
| 4MH-RM-89-76 | 4m | 140mm | 89mm | 76mm | 600x115 | 800mm |
| 5MH-RM-89-76 | 5m | 140mm | 89mm | 76mm | 600x115 | 800mm |
| 6MH-RM-89-76 | 6m | 140mm | 89mm | 76mm | 600x115 | 1000mm |
| 8MH-RM-89-76 | 8m | 168mm | 89mm | 76mm | 600x115 | 1200mm |
Mid-Hinged Tubular Galvanised Street Lighting Columns (Flange Plate Mounted)
| Code |
Size |
Dia ∅ |
Dia ∅ |
Dia ∅ |
Door Opening | Bolt Code |
|---|---|---|---|---|---|---|
| 4MH-FP-89-76 | 4m | 140mm | 89mm | 76mm | 600x115 | FIX-0208 |
| 5MH-FP-89-76 | 5m | 140mm | 89mm | 76mm | 600x115 | FIX-0208 |
| 6MH-FP-89-76 | 6m | 140mm | 89mm | 76mm | 600x115 | FIX-0208 |
| 8MH-FP-89-76 | 8m | 168mm | 89mm | 76mm | 600x115 | FIX-0211 |
Mid-Hinged Tubular Galvanised Street Lighting Columns (Accessories)
| Code | Description |
|---|---|
| Keys: | |
| KEY-02 | Key set for 3-6M mid-hinged tubular columns |
| KEY-03 | Key set for 8M mid-hinged tubular columns |
| Flange Plate Bolts: | |
| FIX-0208 | Flange plate bolt kit suitable for 4-6M mid-hinged tubular columns |
| FIX-0211 | Flange plate bolt kit suitable for 8M mid-hinged tubular columns |
| Flange Plate Stencils: | |
| FIX-0039 | Stencil for flange plate bolt pattern of 4M-6M mid-hinged tubular columns |
| FIX-0040 | Stencil for flange plate bolt pattern of 8M mid-hinged tubular columns |
| Rope: | |
| ROPE-4-6M-18KG | Rope for 4-6m mid-hinged column - Max. head load 18Kg |
| ROPE-8M-18KG | Rope for 8m mid-hinged column - Max. head load 18Kg |
| Winch: | |
| FIX-0210 | Winch for 4M-6M mid-hinged tubular columns |
| FIX-0213 | Winch for 8M mid-hinged tubular columns |
