LED Amenity Lighting

Albion 30W

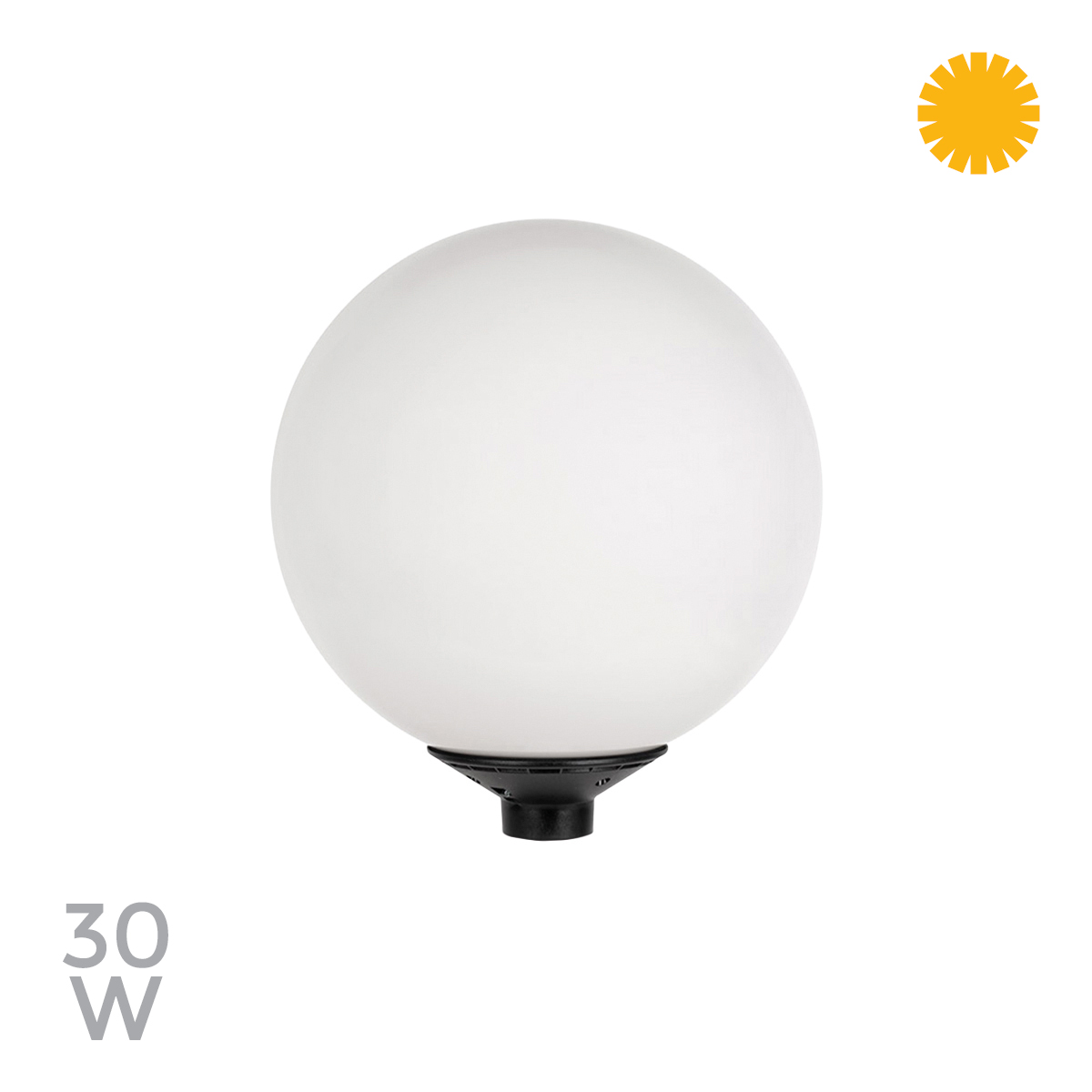

LED Globe Light

The Albion 30W is a popular IP65 – IK08 White/Opal LED Globe Light with a traditional feel.

Manufactured with the latest High Power LEDs from Osram and featuring a premium Osram Driver.

Note: Also available with a clear diffuser (See Dauntless range) or a clear diffuser with coated upper canopy (see Jaguar range).

Options available are Colour Temperature, DALI, Mini Photocell, and Spigot Size / Adaptors.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard - 76mm Spigot
AL30-A3C-00W-76 Albion - 30W - LED - AC - 6000K - Std - White - 76mm  4,356 30 3,245 108
AL30-A3N-00W-76 Albion - 30W - LED - AC - 4000K - Std - White - 76mm 4,356 30 3,245 108
AL30-A3W-00W-76 Albion - 30W - LED - AC - 3000K - Std - White - 76mm 3,685 30 2,746 92
AL30-A3X-00W-76 Albion - 30W - LED - AC - 2700K - Std - White - 76mm 3,685 30 2,746 92
Standard - 60mm Spigot
AL30-A3C-00W-60 Albion - 30W - LED - AC - 6000K - Std - White - 60mm  4,356 30 3,245 108
AL30-A3N-00W-60 Albion - 30W - LED - AC - 4000K - Std - White - 60mm  4,356 30 3,245 108
AL30-A3W-00W-60 Albion - 30W - LED - AC - 3000K - Std - White - 60mm  3,685 30 2,746 92
AL30-A3X-00W-60 Albion - 30W - LED - AC - 2700K - Std - White - 60mm  3,685 30 2,746 92
Standard - Mini Photocell - 76mm Spigot
AL30-A3C-04W-76 Albion - 30W - LED - AC - 6000K - Std - M/Photocell - White - 76mm  4,356 30 3,245 108
AL30-A3N-04W-76 Albion - 30W - LED - AC - 4000K - Std - M/Photocell - White - 76mm 4,356 30 3,245 108
AL30-A3W-04W-76 Albion - 30W - LED - AC - 3000K - Std - M/Photocell - White - 76mm 3,685 30 2,746 92
AL30-A3X-04W-76 Albion - 30W - LED - AC - 2700K - Std - M/Photocell - White - 76mm 3,685 30 2,746 92
Standard - Mini Photocell - 60mm Spigot
AL30-A3C-04W-60 Albion - 30W - LED - AC - 6000K - Std - M/Photocell - White - 60mm  4,356 30 3,245 108
AL30-A3N-04W-60 Albion - 30W - LED - AC - 4000K - Std - M/Photocell - White - 60mm  4,356 30 3,245 108
AL30-A3W-04W-60 Albion - 30W - LED - AC - 3000K - Std - M/Photocell - White - 60mm  3,685 30 2,746 92
AL30-A3X-04W-60 Albion - 30W - LED - AC - 2700K - Std - M/Photocell - White - 60mm  3,685 30 2,746 92
Dali - 76mm Spigot
AL30-A3C-20W-76 Albion - 30W - LED - AC - 6000K - DALI - White - 76mm 4,356 30 3,245 108
AL30-A3N-20W-76 Albion - 30W - LED - AC - 4000K - DALI - White - 76mm 4,356 30 3,245 108
AL30-A3W-20W-76 Albion - 30W - LED - AC - 3000K - DALI - White - 76mm  3,685 30 2,746 92
AL30-A3X-20W-76 Albion - 30W - LED - AC - 2700K - DALI - White - 76mm  3,685 30 2,746 92
Dali - 60mm Spigot
AL30-A3C-20W-60 Albion - 30W - LED - AC - 6000K - DALI - White - 60mm  4,356 30 3,245 108
AL30-A3N-20W-60 Albion - 30W - LED - AC - 4000K - DALI - White - 60mm  4,356 30 3,245 108
AL30-A3W-20W-60 Albion - 30W - LED - AC - 3000K - DALI - White - 60mm  3,685 30 2,746 92
AL30-A3X-20W-60 Albion - 30W - LED - AC - 2700K - DALI - White - 60mm  3,685 30 2,746 92
Legend: Std = Standard. DALI = DALI Driver. M/Photocell = Mini Photocell. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). Options: Silver Top = Change 'B' to 'S'. 60mm Spigot = Change '76' to '60'.

Features & benefits

  • LED rating 3,960lm (6000K & 4000K).
  • LED rating 3,350lm (3000K & 2700K).
  • Luminaire flux 2,950lm (6000K & 4000K).
  • Luminaire flux 2,496lm (3000K & 2700K).
  • Total wattage 30W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature.
  • IP65 / IK08 rated.
  • LED life span > 100,000hrs.
  • Easy access to LED and Driver via a removable head.
  • Osram LED and Osram Driver.
  • Control options available are DALI and Mini Photocell.
  • Manufactured from UV stabilised PMMA.
  • Prismatic refractor inside for high uniformity.
  • Tamper proof fixings for increased vandal resistance.
  • Available with a 76mm / 60mm spigot as standard.
  • Optional amenity brackets, adaptors and wall mount brackets available separately.
Width: ⌀500mm
Height: 557mm
Length: N/A
Weight: 5.0Kg

Albion 30W [6000K – Cool White]:

IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 30W with 3,960lm LED rating and minimum Luminaire Flux of 2,950lm from 6000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 30W.

Albion 30W [4000K – Neutral White]:

IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 30W with 3,960lm LED rating and minimum Luminaire Flux of 2,950lm from 4000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 30W.

Albion 30W [3000K – Warm White]:

IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 30W with 3,350lm LED rating and minimum Luminaire Flux of 2,496lm from 3000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 30W.

Albion 30W [2700K – Extra Warm White]:

IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 30W with 3,350lm LED rating and minimum Luminaire Flux of 2,496lm from 2700K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 30W.

Notes: Delete as required.

Car Parks
Retail
Walkways
Parks & Gardens
Amenity Areas
Security
