Albion 45W
LED Globe Light
The Albion 45W is a popular IP65 – IK08 White/Opal LED Globe Light with a traditional feel.
Manufactured with the latest High Power LEDs from Osram and featuring a premium Osram Driver.
Note: Also available with a clear diffuser (See Dauntless range) or a clear diffuser with coated upper canopy (see Jaguar range).
Options available are Colour Temperature, DALI, Mini Photocell, and Spigot Size / Adaptors.
Gallery
Datasheet
Install Guide
Photometry
Images
BIM files
| Code | Description |
LED Rating (lm) |
Total Power (W) |
Lum. Flux (lm) |
Efficacy (llm/cW) |
|---|---|---|---|---|---|
| Standard - 76mm Spigot | |||||
| AL45-A5C-00W-76 | Albion-45W-LED-AC-6K-Std-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-00W-76 | Albion-45W-LED-AC-4K-Std-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-00W-76 | Albion-45W-LED-AC-3K-Std-White-76mm | 4,974 | 45 | 3,706 | 82 |
| Standard - 60mm Spigot | |||||
| AL45-A5C-00W-60 | Albion-45W-LED-AC-6K-Std-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-00W-60 | Albion-45W-LED-AC-4K-Std-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-00W-60 | Albion-45W-LED-AC-3K-Std-White-60mm | 4,974 | 45 | 3,706 | 82 |
| Standard - Mini Photocell - 76mm Spigot | |||||
| AL45-A5C-04W-76 | Albion-45W-LED-AC-6K-Std-M/Photocell-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-04W-76 | Albion-45W-LED-AC-4K-Std-M/Photocell-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-04W-76 | Albion-45W-LED-AC-3K-Std-M/Photocell-White-76mm | 4,974 | 45 | 3,706 | 82 |
| Standard - Mini Photocell - 60mm Spigot | |||||
| AL45-A5C-04W-60 | Albion-45W-LED-AC-6K-Std-M/Photocell-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-04W-60 | Albion-45W-LED-AC-4K-Std-M/Photocell-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-04W-60 | Albion-45W-LED-AC-3K-Std-M/Photocell-White-60mm | 4,974 | 45 | 3,706 | 82 |
| Dali - 76mm Spigot | |||||
| AL45-A5C-20W-76 | Albion-45W-LED-AC-6K-Dali-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-20W-76 | Albion-45W-LED-AC-4K-Dali-White-76mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-20W-76 | Albion-45W-LED-AC-3K-Dali-White-76mm | 4,974 | 45 | 3,706 | 82 |
| Dali - 60mm Spigot | |||||
| AL45-A5C-20W-60 | Albion-45W-LED-AC-6K-Dali-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5N-20W-60 | Albion-45W-LED-AC-4K-Dali-White-60mm | 5,880 | 45 | 4,381 | 97 |
| AL45-A5W-20W-60 | Albion-45W-LED-AC-3K-Dali-White-60mm | 4,974 | 45 | 3,706 | 82 |
Features & benefits
- LED rating 5,880lm (6000K & 4000K).
- LED rating 4,974lm (3000K & 2700K).
- Luminaire flux 4,381lm (6000K & 4000K).
- Luminaire flux 3,706lm (3000K & 2700K).
- Total wattage 45W.
- Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
- -20 to +40°C operating temperature.
- IP65 / IK08 rated.
- LED life span > 100,000hrs.
- Easy access to LED and Driver via a removable head.
- Osram LED and Osram Driver.
- Control options available are DALI and Mini Photocell.
- Manufactured from UV stabilised PMMA.
- Prismatic refractor inside for high uniformity.
- Tamper proof fixings for increased vandal resistance.
- Available with a 76mm / 60mm spigot as standard.
- Optional amenity brackets, adaptors and wall mount brackets available separately.
Albion 45W [6000K – Cool White]:

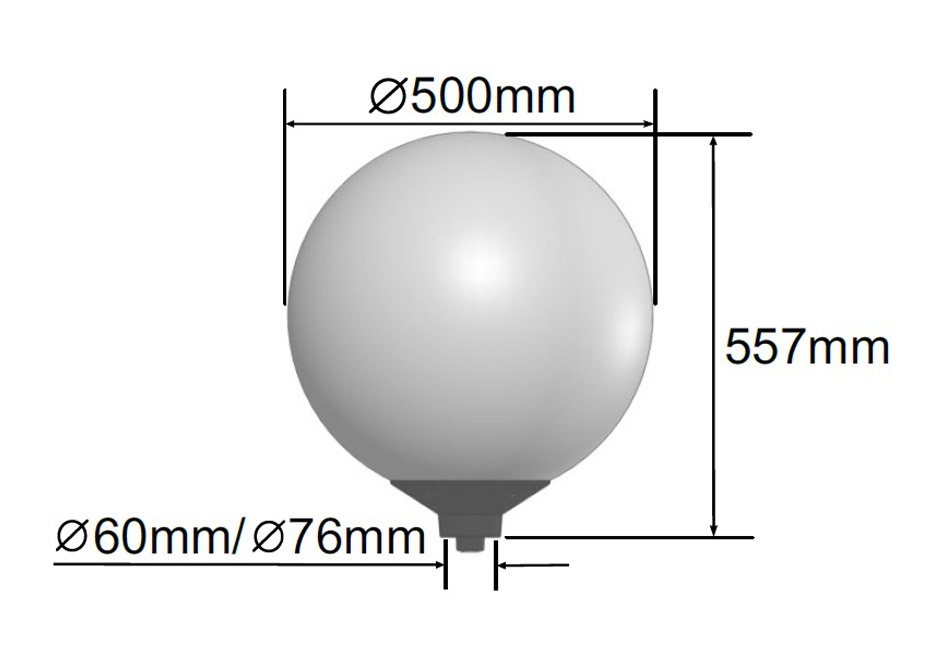

IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 45W with 5,880lm LED rating and minimum Luminaire Flux of 4,381lm from 6000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 45W.
Albion 45W [4000K – Neutral White]:
IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 45W with 5,880lm LED rating and minimum Luminaire Flux of 4,381lm from 4000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 45W.
Albion 45W [3000K – Warm White]:
IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 45W with 4,974lm LED rating and minimum Luminaire Flux of 3,706lm from 3000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 45W.
Albion 45W [2700K – Extra Warm White]:
IP65 LED Post Top with prismatic refactor and featuring a opal white canopy – Size: ø500mm x 557mm. 45W with 4,974lm LED rating and minimum Luminaire Flux of 3,706lm from 2700K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell] . and [76mm/60mm] spigot entry. As Gemma Lighting – Albion 45W.
Notes: Delete as required.
