LED Amenity Lighting

Middleton 50W
LED Post Top

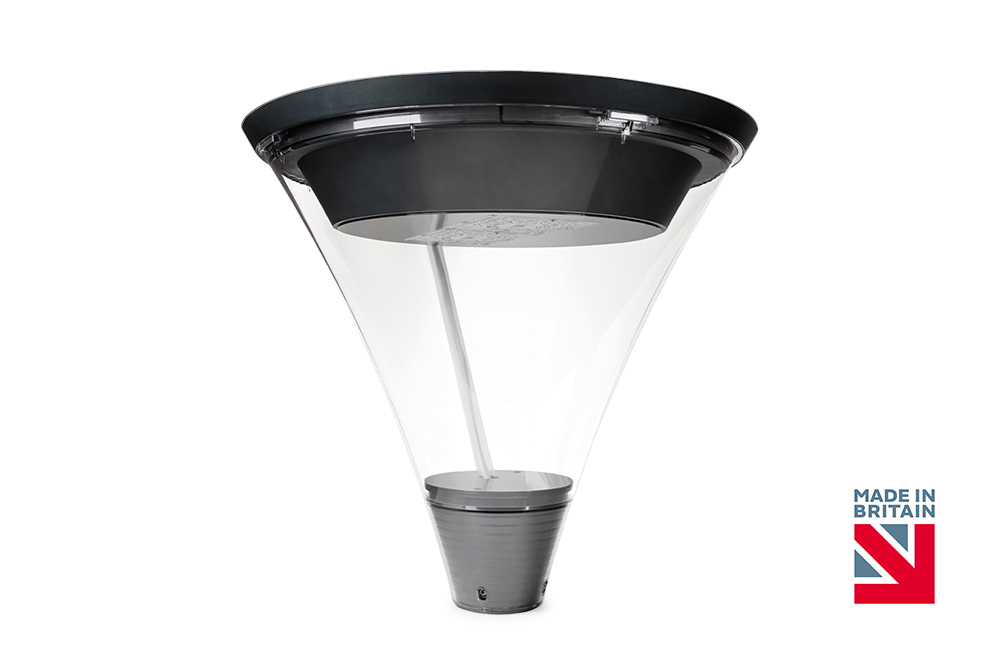

The Middleton 50W is a modern IP65 – IK08 LED Post Top with a choice of asymmetric or symmetric light distribution.

Manufactured from UV stabilised polycarbonate and incorporating the latest LED and driver technology.

Options available are Colour Temperature, DALI, NEMA Socket, Mini Photocell, 3Hr Emergency, Spill Shield, and Spigot Size / Adaptors.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Middleton - 50W - Standard - 76mm Spigot
MP50-AC-00B-76-SYM Middleton-50W-LED-AC-6000K-Std-Black-76mm-SYM 7,952 50 7,315 146
MP50-AC-00B-76-A/SYM Middleton-50W-LED-AC-6000K-Std-Black-76mm-A/SYM 7,952 50 7,315 146
MP50-AN-00B-76-SYM Middleton-50W-LED-AC-4000K-Std-Black-76mm-SYM 7,952 50 7,315 146
MP50-AN-00B-76-A/SYM Middleton-50W-LED-AC-4000K-Std-Black-76mm-A/SYM 7,952 50 7,315 146
MP50-AW-00B-76-SYM Middleton-50W-LED-AC-3000K-Std-Black-76mm-SYM 6,743 50 6,203 124
MP50-AW-00B-76-A/SYM Middleton-50W-LED-AC-3000K-Std-Black-76mm-A/SYM 6,743 50 6,203 124
MP50-AX-00B-76-SYM Middleton-50W-LED-AC-2700K-Std-Black-76mm-SYM 6,743 50 6,203 124
MP50-AX-00B-76-A/SYM Middleton-50W-LED-AC-2700K-Std-Black-76mm-A/SYM 6,743 50 6,203 124
Middleton - 50W - Standard - 60mm Spigot
MP50-AC-00B-60-SYM Middleton-50W-LED-AC-6000K-Std-Black-60mm-SYM 7,952 50 7,315 146
MP50-AC-00B-60-A/SYM Middleton-50W-LED-AC-6000K-Std-Black-60mm-A/SYM 7,952 50 7,315 146
MP50-AN-00B-60-SYM Middleton-50W-LED-AC-4000K-Std-Black-60mm-SYM 7,952 50 7,315 146
MP50-AN-00B-60-A/SYM Middleton-50W-LED-AC-4000K-Std-Black-60mm-A/SYM 7,952 50 7,315 146
MP50-AW-00B-60-SYM Middleton-50W-LED-AC-3000K-Std-Black-60mm-SYM 6,743 50 6,203 124
MP50-AW-00B-60-A/SYM Middleton-50W-LED-AC-3000K-Std-Black-60mm-A/SYM 6,743 50 6,203 124
MP50-AX-00B-60-SYM Middleton-50W-LED-AC-2700K-Std-Black-60mm-SYM 6,743 50 6,203 124
MP50-AX-00B-60-A/SYM Middleton-50W-LED-AC-2700K-Std-Black-60mm-A/SYM 6,743 50 6,203 124
Middleton - 50W - Standard - Mini Photocell - 76mm Spigot
MP50-AC-04B-76-SYM Middleton-50W-LED-AC-6000K-Std-M/Photocell-Black-76mm-SYM 7,952 50 7,315 146
MP50-AC-04B-76-A/SYM Middleton-50W-LED-AC-6000K-Std-M/Photocell-Black-76mm-A/SYM 7,952 50 7,315 146
MP50-AN-04B-76-SYM Middleton-50W-LED-AC-4000K-Std-M/Photocell-Black-76mm-SYM 7,952 50 7,315 146
MP50-AN-04B-76-A/SYM Middleton-50W-LED-AC-4000K-Std-M/Photocell-Black-76mm-A/SYM 7,952 50 7,315 146
MP50-AW-04B-76-SYM Middleton-50W-LED-AC-3000K-Std-M/Photocell-Black-76mm-SYM 6,743 50 6,203 124
MP50-AW-04B-76-A/SYM Middleton-50W-LED-AC-3000K-Std-M/Photocell-Black-76mm-A/SYM 6,743 50 6,203 124
MP50-AX-04B-76-SYM Middleton-50W-LED-AC-2700K-Std-M/Photocell-Black-76mm-SYM 6,743 50 6,203 124
MP50-AX-04B-76-A/SYM Middleton-50W-LED-AC-2700K-Std-M/Photocell-Black-76mm-A/SYM 6,743 50 6,203 124
Middleton - 50W - Standard - Mini Photocell - 60mm Spigot
MP50-AC-04B-60-SYM Middleton-50W-LED-AC-6000K-Std-M/Photocell-Black-60mm-SYM 7,952 50 7,315 146
MP50-AC-04B-60-A/SYM Middleton-50W-LED-AC-6000K-Std-M/Photocell-Black-60mm-A/SYM 7,952 50 7,315 146
MP50-AN-04B-60-SYM Middleton-50W-LED-AC-4000K-Std-M/Photocell-Black-60mm-SYM 7,952 50 7,315 146
MP50-AN-04B-60-A/SYM Middleton-50W-LED-AC-4000K-Std-M/Photocell-Black-60mm-A/SYM 7,952 50 7,315 146
MP50-AW-04B-60-SYM Middleton-50W-LED-AC-3000K-Std-M/Photocell-Black-60mm-SYM 6,743 50 6,203 124
MP50-AW-04B-60-A/SYM Middleton-50W-LED-AC-3000K-Std-M/Photocell-Black-60mm-A/SYM 6,743 50 6,203 124
MP50-AX-04B-60-SYM Middleton-50W-LED-AC-2700K-Std-M/Photocell-Black-60mm-SYM 6,743 50 6,203 124
MP50-AX-04B-60-A/SYM Middleton-50W-LED-AC-2700K-Std-M/Photocell-Black-60mm-A/SYM 6,743 50 6,203 124
Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. NEMA/Skt = Nema Socket. M/Photocell = Mini Photocell. E3 = 3Hr Emergency. SYM = Symmetrical. A/SYM = Asymmetrical. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). NB: Nema Photocell not included with Nema Socket, to purchase separately, use code: LIT-0010.

Features & benefits

  • LED rating 7,952lm (6000K & 4000K).
  • LED rating 6,743lm (3000K & 2700K).
  • Luminaire flux 7,315lm (6000K & 4000K).
  • Luminaire flux 6,203lm (3000K & 2700K).
  • Total wattage 50W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK08 rated.
  • LED life span > 100,000hrs.
  • Osram LEDs & Osram Driver.
  • Easy access to LED and Driver via a removable head.
  • Symmetrical & Asymmetrical LED Optics.
  • Control options available are DALI, NEMA socket, Mini Photocell, 3Hr Emergency, and 180° Spill Shield (FIX-0488).
  • Manufactured from UV stabilised polycarbonate.
  • RAL 9006 (Black).
  • Available with a 76mm / 60mm spigot as standard.
  • Optional amenity brackets, adaptors and wall mount brackets available separately.
  • Compliant with Dark Skies recommendations (3000K + dimmable option).
  • Bat & Insect friendly (2700K + dimmable option).
Width: ⌀565mm
Height: 555mm
Length: N/A
Weight: 9.0Kg

Middleton 50W [6000K – Cool White]:

IP65 / IK08 LED Post Top with removable LED module / driver and featuring a black upper canopy – Size: 565mm x 555mm. 50W fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2] and 6000K LEDs with 7,952lm LED rating and minimum Luminaire Flux of 7,315lm and [Osram / Dali / AstroDIM] LED driver. To contain [NEMA Socket / Mini Photocell / 3Hr Emergency] and [76mm/60mm] spigot entry. As Gemma Lighting – Middleton 50W

Middleton 50W [4000K – Neutral White]:

IP65 / IK08 LED Post Top with removable LED module / driver and featuring a black upper canopy – Size: 565mm x 555mm. 50W fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2] and 4000K LEDs with 7,952lm LED rating and minimum Luminaire Flux of 7,315lm and [Osram / Dali / AstroDIM] LED driver. To contain [NEMA Socket / Mini Photocell / 3Hr Emergency] and [76mm/60mm] spigot entry. As Gemma Lighting – Middleton 50W.

Middleton 50W [3000K – Warm White]:

IP65 / IK08 LED Post Top with removable LED module / driver and featuring a black upper canopy – Size: 565mm x 555mm. 50W fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2] and 3000K LEDs with 6,743lm LED rating and minimum Luminaire Flux of 6,203lm and [Osram / Dali / AstroDIM] LED driver. To contain [NEMA Socket / Mini Photocell / 3Hr Emergency] and [76mm/60mm] spigot entry. As Gemma Lighting – Middleton 50W.

Middleton 50W [2700K – Extra Warm White]:

IP65 / IK08 LED Post Top with removable LED module / driver and featuring a black upper canopy – Size: 565mm x 555mm. 50W fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2] and 2700K LEDs with 6,743lm LED rating and minimum Luminaire Flux of 6,203lm and [Osram / Dali / AstroDIM] LED driver. To contain [NEMA Socket / Mini Photocell / 3Hr Emergency] and [76mm/60mm] spigot entry. As Gemma Lighting – Middleton 50W.

Notes: Delete as required.
