Jaguar 30W
LED Street Light Globe (500mm)

Street Light Globe 76mm

Street Light Globe:

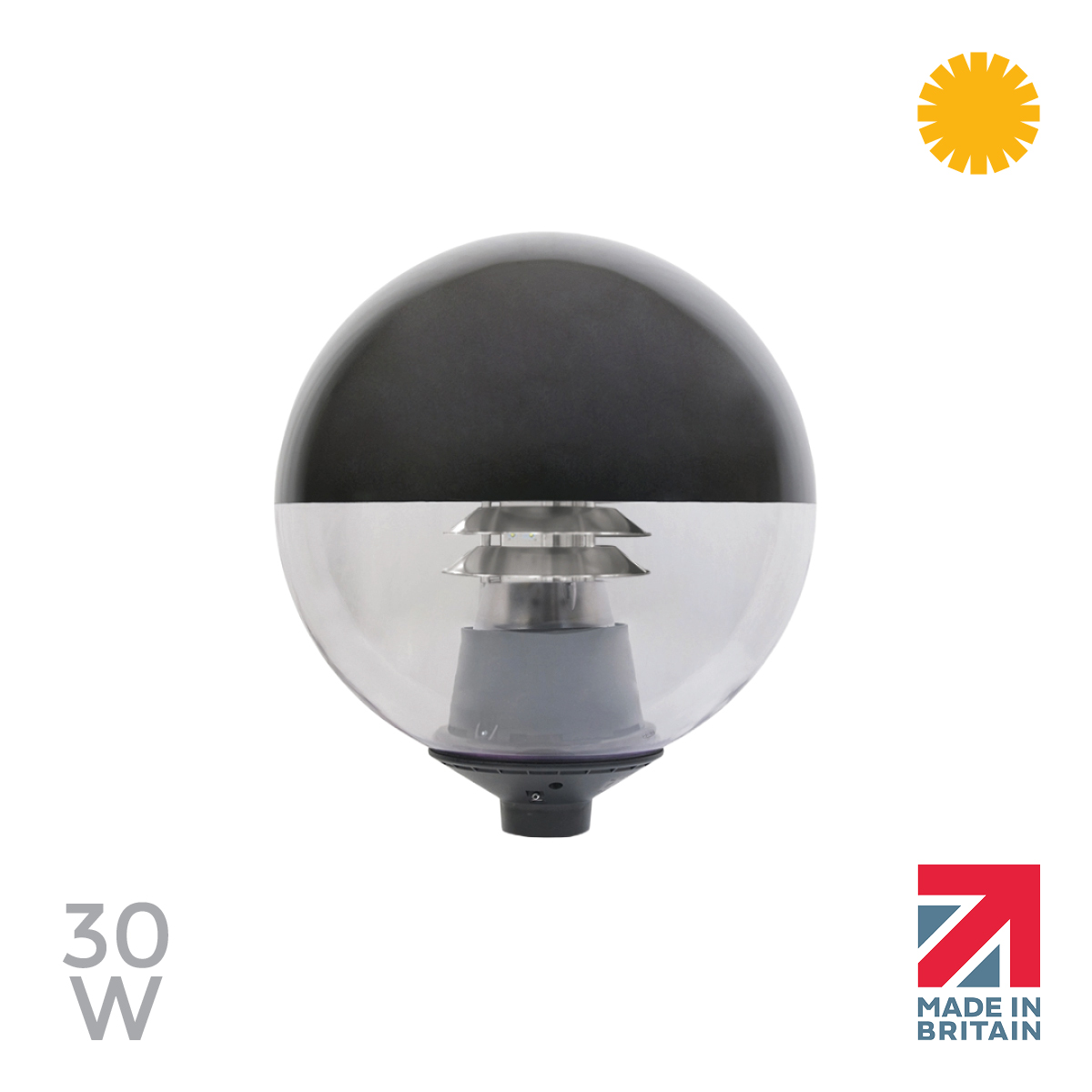

The Jaguar 30W is a popular IP65 – IK08 rated LED Post Top with a modern and stylish feel. Manufactured with a beautiful aluminium louvre stack and featuring a coated black/silver upper canopy to ensure a controlled distribution of light with minimal glare. Note: Also available with a clear diffuser (See Dauntless range) or a translucent opal diffuser (see Albion range). Options available are Colour Temperature, DALI, Mini Photocell, 110V Operation, Spill Shield, Spigot Size / Adaptors, and any painted RAL colour finish.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard-Black Top
JG30-A3C-00B-60 Jaguar-30W-LED-AC-6K-Std-Black-60mm 3,960 30 3,445 115
JG30-A3C-00B-76 Jaguar-30W-LED-AC-6K-Std-Black-76mm 3,960 30 3,445 115
JG30-A3N-00B-60 Jaguar-30W-LED-AC-4K-Std-Black-60mm 3,960 30 3,445 115
JG30-A3N-00B-76 Jaguar-30W-LED-AC-4K-Std-Black-76mm 3,960 30 3,445 115
JG30-A3W-00B-60 Jaguar-30W-LED-AC-3K-Std-Black-60mm 3,350 30 2,915 97
JG30-A3W-00B-76 Jaguar-30W-LED-AC-3K-Std-Black-76mm 3,350 30 2,915 97
Standard-Silver Top
JG30-A3C-00S-60 Jaguar-30W-LED-AC-6K-Std-Silver-60mm 3,960 30 3,445 115
JG30-A3C-00S-76 Jaguar-30W-LED-AC-6K-Std-Silver-76mm 3,960 30 3,445 115
JG30-A3N-00S-60 Jaguar-30W-LED-AC-4K-Std-Silver-60mm 3,960 30 3,445 115
JG30-A3N-00S-76 Jaguar-30W-LED-AC-4K-Std-Silver-76mm 3,960 30 3,445 115
JG30-A3W-00S-60 Jaguar-30W-LED-AC-3K-Std-Silver-60mm 3,350 30 2,915 97
JG30-A3W-00S-76 Jaguar-30W-LED-AC-3K-Std-Silver-76mm 3,350 30 2,915 97
Standard-Black Top-Mini Photocell
JG30-A3C-04B-60 Jaguar-30W-LED-AC-6K-Std-M/Photocell-Black-60mm 3,960 30 3,445 115
JG30-A3C-04B-76 Jaguar-30W-LED-AC-6K-Std-M/Photocell-Black-76mm 3,960 30 3,445 115
JG30-A3N-04B-60 Jaguar-30W-LED-AC-4K-Std-M/Photocell-Black-60mm 3,960 30 3,445 115
JG30-A3N-04B-76 Jaguar-30W-LED-AC-4K-Std-M/Photocell-Black-76mm 3,960 30 3,445 115
JG30-A3W-04B-60 Jaguar-30W-LED-AC-3K-Std-M/Photocell-Black-60mm 3,350 30 2,915 97
JG30-A3W-04B-76 Jaguar-30W-LED-AC-3K-Std-M/Photocell-Black-76mm 3,350 30 2,915 97
Standard-Silver Top-Mini Photocell
JG30-A3C-04S-60 Jaguar-30W-LED-AC-6K-Std-M/Photocell-Silver-60mm 3,960 30 3,445 115
JG30-A3C-04S-76 Jaguar-30W-LED-AC-6K-Std-M/Photocell-Silver-76mm 3,960 30 3,445 115
JG30-A3N-04S-60 Jaguar-30W-LED-AC-4K-Std-M/Photocell-Silver-60mm 3,960 30 3,445 115
JG30-A3N-04S-76 Jaguar-30W-LED-AC-4K-Std-M/Photocell-Silver-76mm 3,960 30 3,445 115
JG30-A3W-04S-60 Jaguar-30W-LED-AC-3K-Std-M/Photocell-Silver-60mm 3,350 30 2,915 97
JG30-A3W-04S-76 Jaguar-30W-LED-AC-3K-Std-M/Photocell-Silver-76mm 3,350 30 2,915 97
Dali-Black Top
JG30-A3C-20B-60 Jaguar-30W-LED-AC-6K-Dali-Black-60mm 3,960 30 3,445 115
JG30-A3C-20B-76 Jaguar-30W-LED-AC-6K-Dali-Black-76mm 3,960 30 3,445 115
JG30-A3N-20B-60 Jaguar-30W-LED-AC-4K-Dali-Black-60mm 3,960 30 3,445 115
JG30-A3N-20B-76 Jaguar-30W-LED-AC-4K-Dali-Black-76mm 3,960 30 3,445 115
JG30-A3W-20B-60 Jaguar-30W-LED-AC-3K-Dali-Black-60mm 3,350 30 2,915 97
JG30-A3W-20B-76 Jaguar-30W-LED-AC-3K-Dali-Black-76mm 3,350 30 2,915 97
Dali-Silver Top
JG30-A3C-20S-60 Jaguar-30W-LED-AC-6K-Dali-Silver-60mm 3,960 30 3,445 115
JG30-A3C-20S-76 Jaguar-30W-LED-AC-6K-Dali-Silver-76mm 3,960 30 3,445 115
JG30-A3N-20S-60 Jaguar-30W-LED-AC-4K-Dali-Silver-60mm 3,960 30 3,445 115
JG30-A3N-20S-76 Jaguar-30W-LED-AC-4K-Dali-Silver-76mm 3,960 30 3,445 115
JG30-A3W-20S-60 Jaguar-30W-LED-AC-3K-Dali-Silver-60mm 3,350 30 2,915 97
JG30-A3W-20S-76 Jaguar-30W-LED-AC-3K-Dali-Silver-76mm 3,350 30 2,915 97
Legend: Std = Standard. DALI = DALI Driver. M/Photocell = Mini Photocell. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). Options: Silver Top = Change 'B' to 'S'. 60mm Spigot = Change '76' to '60'.

Features & benefits

  • LED rating 3,960lm (6000K & 4000K).
  • LED rating 3,350lm (3000K & 2700K).
  • Luminaire flux 3,445lm (6000K & 4000K).
  • Luminaire flux 2,915lm (3000K & 2700K).
  • Total wattage 30W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature.
  • IP65 / IK08 rated.
  • LED life span > 100,000hrs.
  • Easy access to LED and Driver via a removable head.
  • Osram LED and Osram Driver.
  • Control options available are DALI, Mini Photocell, 110V Operation, and 180° Spill Shield.
  • Any painted RAL colour finish.
  • Manufactured from UV stabilised polycarbonate.
  • Louvres for optimum performance and minimal upward light.
  • Tamper proof fixings for increased vandal resistance.
  • Available with a 76mm / 60mm spigot as standard.
  • Optional amenity brackets, adaptors and wall mount brackets available separately.
Width: ⌀500mm
Height: 557mm
Length: N/A
Weight: 5.0Kg

Jaguar 30W [6000K – Cool White]:

IP65 LED Street Light Globe with aluminium louvre stack and featuring a coated black upper canopy – Size: ø500mm x 557mm. 30W with 3,960lm LED rating and minimum Luminaire Flux of 3,445lm from 6000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Jaguar 30W.

Jaguar 30W [4000K – Neutral White]:

IP65 LED Street Light globe with aluminium louvre stack and featuring a coated black upper canopy – Size: ø500mm x 557mm. 30W with 3,960lm LED rating and minimum Luminaire Flux of 3,445lm from 4000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Jaguar 30W.

Jaguar 30W [3000K – Warm White]:

IP65 LED Street Light Globe with aluminium louvre stack and featuring a coated black upper canopy – Size: ø500mm x 557mm. 30W with 3,350lm LED rating and minimum Luminaire Flux of 2,915lm from 3000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Jaguar 30W.

Jaguar 30W [2700K – Extra Warm White]:

IP65 LED Street Light Globe with aluminium louvre stack and featuring a coated black upper canopy – Size: ø500mm x 557mm. 30W with 3,350lm LED rating and minimum Luminaire Flux of 2,915lm from 2700K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Jaguar 30W.

Notes: Delete as required.
