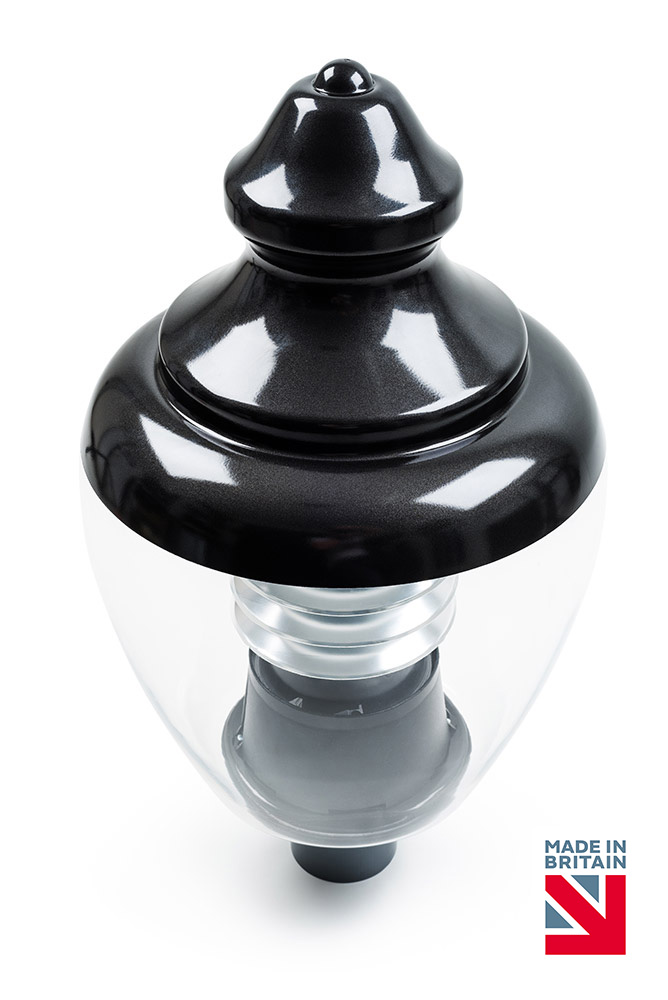

Buckingham 30W
Decorative LED Post Top
The Buckingham is a stunning IP65 / IK08 rated LED Post Top with a stylish and elegant feel.
Manufactured with a beautiful aluminium louvre stack and featuring a coated black upper canopy to ensure a controlled distribution of light with minimal glare.
Options include Mini Photocell, Dali, spill shield and spigot size.
Gallery
Datasheet
Install Guide
Photometry
Images
BIM files
| Code | Description |
LED Rating (lm) |
Total Wattage (W) |
Lum. Flux (lm) |
Lum. Efficacy (lm/W) |
|---|---|---|---|---|---|
| Standard-Black Top | |||||
| B30-A3C-00B-60 | Buckingham-30W-LED-AC-6K-Std-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-00B-76 | Buckingham-30W-LED-AC-6K-Std-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-00B-60 | Buckingham-30W-LED-AC-4K-Std-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-00B-76 | Buckingham-30W-LED-AC-4K-Std-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-00B-60 | Buckingham-30W-LED-AC-3K-Std-Black-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-00B-76 | Buckingham-30W-LED-AC-3K-Std-Black-76mm | 3,350 | 30 | 2,915 | 97 |
| Standard-Silver Top | |||||
| B30-A3C-00S-60 | Buckingham-30W-LED-AC-6K-Std-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-00S-76 | Buckingham-30W-LED-AC-6K-Std-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-00S-60 | Buckingham-30W-LED-AC-4K-Std-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-00S-76 | Buckingham-30W-LED-AC-4K-Std-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-00S-60 | Buckingham-30W-LED-AC-3K-Std-Silver-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-00S-76 | Buckingham-30W-LED-AC-3K-Std-Silver-76mm | 3,350 | 30 | 2,915 | 97 |
| Standard-Black-Mini Photocell | |||||
| B30-A3C-04B-60 | Buckingham-30W-LED-AC-6K-Std-M/Photocell-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-04B-76 | Buckingham-30W-LED-AC-6K-Std-M/Photocell-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-04B-60 | Buckingham-30W-LED-AC-4K-Std-M/Photocell-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-04B-76 | Buckingham-30W-LED-AC-4K-Std-M/Photocell-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-04B-60 | Buckingham-30W-LED-AC-3K-Std-M/Photocell-Black-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-04B-76 | Buckingham-30W-LED-AC-3K-Std-M/Photocell-Black-76mm | 3,350 | 30 | 2,915 | 97 |
| Standard-Silver-Mini Photocell | |||||
| B30-A3C-04S-60 | Buckingham-30W-LED-AC-6K-Std-M/Photocell-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-04S-76 | Buckingham-30W-LED-AC-6K-Std-M/Photocell-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-04S-60 | Buckingham-30W-LED-AC-4K-Std-M/Photocell-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-04S-76 | Buckingham-30W-LED-AC-4K-Std-M/Photocell-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-04S-60 | Buckingham-30W-LED-AC-3K-Std-M/Photocell-Silver-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-00S-76 | Buckingham-30W-LED-AC-3K-Std-M/Photocell-Silver-76mm | 3,350 | 30 | 2,915 | 97 |
| Dali-Black Top | |||||
| B30-A3C-20B-60 | Buckingham-30W-LED-AC-6K-Dali-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-20B-76 | Buckingham-30W-LED-AC-6K-Dali-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-20B-60 | Buckingham-30W-LED-AC-4K-Dali-Black-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-20B-76 | Buckingham-30W-LED-AC-4K-Dali-Black-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-20B-60 | Buckingham-30W-LED-AC-3K-Dali-Black-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-20B-76 | Buckingham-30W-LED-AC-3K-Dali-Black-76mm | 3,350 | 30 | 2,915 | 97 |
| Dali-Silver Top | |||||
| B30-A3C-20S-60 | Buckingham-30W-LED-AC-6K-Dali-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3C-20S-76 | Buckingham-30W-LED-AC-6K-Dali-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-20S-60 | Buckingham-30W-LED-AC-4K-Dali-Silver-60mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3N-20S-76 | Buckingham-30W-LED-AC-4K-Dali-Silver-76mm | 3,960 | 30 | 3,445 | 115 |
| B30-A3W-20S-60 | Buckingham-30W-LED-AC-3K-Dali-Silver-60mm | 3,350 | 30 | 2,915 | 97 |
| B30-A3W-20S-76 | Buckingham-30W-LED-AC-3K-Dali-Silver-76mm | 3,350 | 30 | 2,915 | 97 |
Legend: Std = Standard. M/Photocell = Mini Photocell. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K).
Features & benefits
- LED rating 3,960lm (4000K & 6000K).
- LED rating 3,350lm (3000K).
- Luminaire flux 3,445lm (4000K & 6000K).
- Luminaire flux 2,915lm (3000K).
- Total wattage 30W.
- 3000K (WW), 4000K (NW) and 6000K (CW) colour temperature options.
- IP65/IK08 rated.
- -20 to +40°C operating temperature.
- LED life span > 100,000hrs.
- Osram LED and Osram Driver.
- Easy access to LED and Driver via a removable head.
- Options available include Mini Photocell, Dali and 180° Spill Shield.
- Manufactured from UV stabilised polycarbonate.
- Louvres for optimum performance and minimal upward light.
- Tamper proof fixings for increased resistance against vandalism.
Buckingham 30W [6000K – Cool White and 4000K – Neutral White]:
IP65 LED Post Top with aluminium louvre stack and featuring a coated black upper canopy – Size: 390mm x 690mm. 30W with 3,960lm LED Rating and minimum Luminaire Flux of 3,445lm from [4000K / 6000K] LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Buckingham.
Buckingham 30W [3000K – Warm White]:
IP65 LED Post Top with aluminium louvre stack and featuring a coated black upper canopy – Size: 390mm x 690mm. 30W with 3,350lm LED Rating and minimum Luminaire Flux of 2,915lm from 3000K LEDs and [Osram / Dali] LED driver. To contain [Mini Photocell]. As Gemma Lighting – Buckingham.
Notes: Delete as required.
