LED Bollard Lighting

Solent 20W
Stainless Steel LED Bollard

The Solent 20W is an IP65 – IK10 rated LED bollard featuring a silver optical controller to ensure minimal upward glare and a symmetrical spread for an enhanced visual experience.

Manufactured from 316 marine grade stainless steel and a transparent strong UV stabilised polycarbonate diffuser for high efficiency and vandal resistance.

Options available are Colour Temperature, DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 180° Spill Shield, and Surface Mount Flange Plate or Bolt-on Root Mount.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard
SB20-A3C-00-SS316 Solent - 20W - LED - AC - 6K - Std - SS316 2,640 20 2,249 112
SB20-A3N-00-SS316 Solent - 20W - LED - AC - 4K - Std - SS316 2,640 20 2,249 112
SB20-A3W-00-SS316 Solent - 20W - LED - AC - 3K - Std - SS316 2,233 20 1,898 95
Standard-Emergency
SB20-A3C-01-SS316 Solent - 20W - LED - AC - 6K - Std - E3 - SS316 2,640 20 2,249 112
SB20-A3N-01-SS316 Solent - 20W - LED - AC - 4K - Std - E3 - SS316 2,640 20 2,249 112
SB20-A3W-01-SS316 Solent - 20W - LED - AC - 3K - Std - E3 - SS316 2,233 20 1,898 95
Dali
SB20-A3C-20-SS316 Solent - 20W - LED - AC - 6K - Dali - SS316 2,640 20 2,249 112
SB20-A3N-20-SS316 Solent - 20W - LED - AC - 4K - Dali - SS316 2,640 20 2,249 112
SB20-A3W-20-SS316 Solent - 20W - LED - AC - 3K - Dali - SS316 2,233 20 1,898 95
Note: Bollard will continue to work at 50% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 2,640lm (6000K & 4000K).
  • LED rating 2,233lm (3000K & 2700K).
  • Luminaire flux 2,249lm (6000K & 4000K).
  • Luminaire flux 1,898lm (3000K & 2700K).
  • Total wattage 20W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK10 rated.
  • LED life span > 100,000hrs.
  • Osram LED and Osram driver.
  • Easy access to LED and driver via a removable head.
  • Control options available are DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency and 180° Spill Shield.
  • Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
  • Tamper proof fixings for increased vandal resistance.
  • Fused main terminal block.
  • 316 marine grade stainless steel with strong UV stabilised polycarbonate diffuser.
  • Compliant with Dark Skies recommendations (3000K + dimmable option).
  • Bat & Insect friendly (2700K + dimmable option).

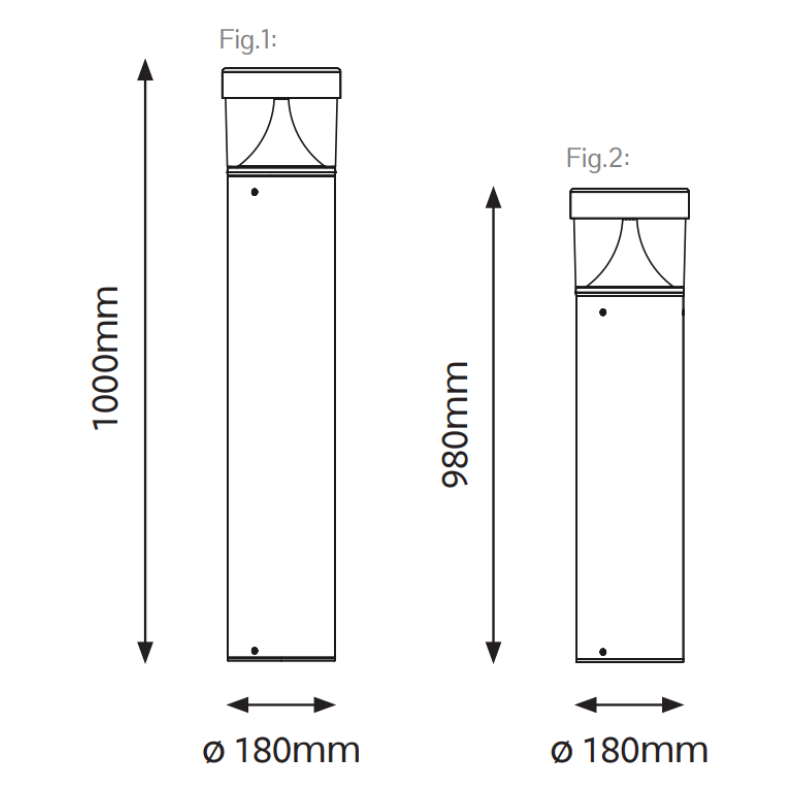

Width: ⌀180mm
Height: 1000mm
Length: N/A
Weight: 8.25kg/9.0kg

Solent 20W [6000K – Cool White]:

IP65 316 stainless steel marine grade LED Bollard with silver optical controller and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,640lm LED rating and minimum Luminaire Flux of 2,249lm from 6000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Solent 20W.

Solent 20W [4000K – Neutral White]:

IP65 316 stainless steel marine grade LED Bollard with silver optical controller and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,640lm LED rating and minimum Luminaire Flux of 2,249lm from 4000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Solent 20W.

Solent 20W [3000K – Warm White]:

IP65 316 stainless steel marine grade LED Bollard with silver optical controller and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,233lm LED rating and minimum Luminaire Flux of 1,898lm from 3000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Solent 20W.

Solent 20W [2700K – Extra Warm White]:

IP65 316 stainless steel marine grade LED Bollard with silver optical controller and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,233lm LED rating and minimum Luminaire Flux of 1,898lm from 2700K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Solent 20W.

Notes: Delete as required.

Prestigious Grounds
Car Parks
Parks & Gardens
Walkways
Security
Amenity
