Westminster 10W

Name: Lighting Bollards - Westminster 10W - Gemma Lighting
Brand: Gemma Lighting
Availability: InStock

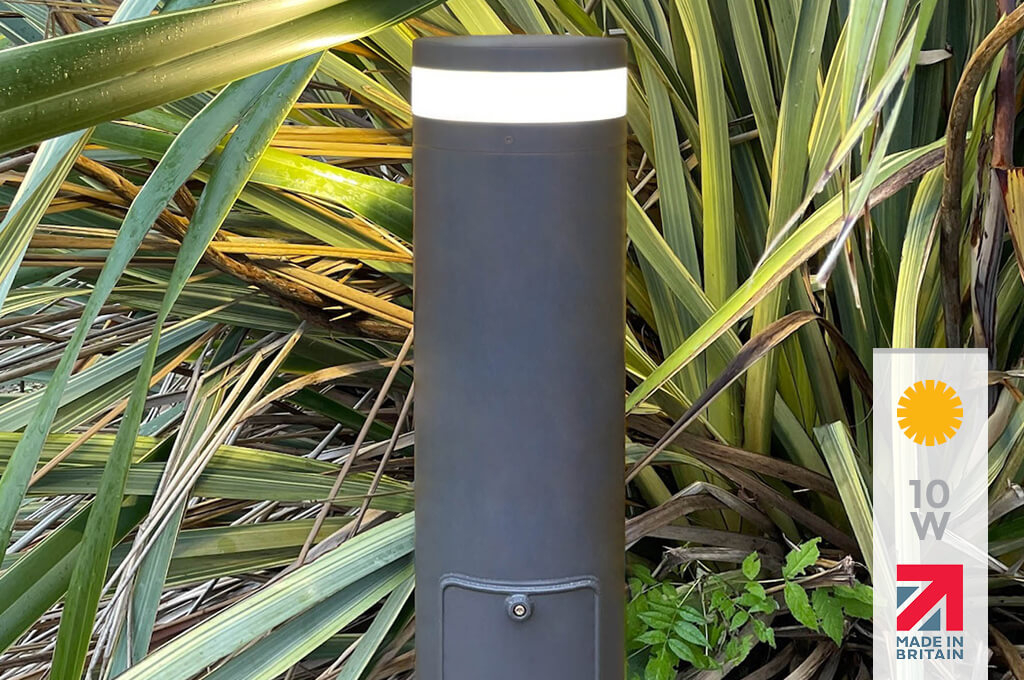

The Westminster 10W architectural bollard is an IP65 – IK10 and offers both aesthetic appeal and high performance illumination.

Designed for easy maintenance and installation with removable head, access door and factory fitted fuse cut out as standard.

Manufactured from extruded aluminium alloy (grade 6063) with die-cast aluminium components and non-corrosive stainless steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint.

Options available are Colour Temperature, DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 180° Asymmetric Head, Surface Mount Flange Plate or Bolt-on Root Mount, and any painted RAL colour finish.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Request a consultation

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code	Description	LED Rating (lm)	Total Power (W)	Lum. Flux (lm)	Efficacy (llm/cW)
Standard
WBD10-AC-00GH-950	Westminster-360°-Door-10W-AC-6000K-Std-RAL7024-950mm	1,320	10	884	88
WBD10-AN-00GH-950	Westminster-360°-Door-10W-AC-4000K-Std-RAL7024-950mm	1,320	10	884	88
WBD10-AW-00GH-950	Westminster-360°-Door-10W-AC-3000K-Std-RAL7024-950mm	1,117	10	748	75
WBD10-AX-00GH-950	Westminster-360°-Door-10W-AC-2700K-Std-RAL7024-950mm	1,117	10	748	75
Standard - Emergency
WBD10-AC-01GH-950	Westminster-360°-Door-10W-AC-6000K-Std-E3-RAL7024-950mm	1,320	10	884	88
WBD10-AN-01GH-950	Westminster-360°-Door-10W-AC-4000K-Std-E3-RAL7024-950mm	1,320	10	884	88
WBD10-AW-01GH-950	Westminster-360°-Door-10W-AC-3000K-Std-E3-RAL7024-950mm	1,117	10	748	75
WBD10-AX-01GH-950	Westminster-360°-Door-10W-AC-2700K-Std-E3-RAL7024-950mm	1,117	10	748	75
Standard - Mini Photocell
WBD10-AC-04GH-950	Westminster-360°-Door-10W-AC-6000K-Std-M/Photocell-RAL7024-950mm	1,320	10	884	88
WBD10-AN-04GH-950	Westminster-360°-Door-10W-AC-4000K-Std-M/Photocell-RAL7024-950mm	1,320	10	884	88
WBD10-AW-04GH-950	Westminster-360°-Door-10W-AC-3000K-Std-M/Photocell-RAL7024-950mm	1,117	10	748	75
WBD10-AX-04GH-950	Westminster-360°-Door-10W-AC-2700K-Std-M/Photocell-RAL7024-950mm	1,117	10	748	75
Standard - Mini Photocell - Emergency
WBD10-AC-10GH-950	Westminster-360°-Door-10W-AC-6000K-Std-M/Photocell-E3-RAL7024-950mm	1,320	10	884	88
WBD10-AN-10GH-950	Westminster-360°-Door-10W-AC-4000K-Std-M/Photocell-E3-RAL7024-950mm	1,320	10	884	88
WBD10-AW-10GH-950	Westminster-360°-Door-10W-AC-3000K-Std-M/Photocell-E3-RAL7024-950mm	1,117	10	748	75
WBD10-AX-10GH-950	Westminster-360°-Door-10W-AC-2700K-Std-M/Photocell-E3-RAL7024-950mm	1,117	10	748	75
Standard - PIR Sensor
WBD10-AC-13GH-950	Westminster-360°-Door-10W-AC-6000K-Std-PIR-RAL7024-950mm	1,320	10	884	88
WBD10-AN-13GH-950	Westminster-360°-Door-10W-AC-4000K-Std-PIR-RAL7024-950mm	1,320	10	884	88
WBD10-AW-13GH-950	Westminster-360°-Door-10W-AC-3000K-Std-PIR-RAL7024-950mm	1,117	10	748	75
WBD10-AX-13GH-950	Westminster-360°-Door-10W-AC-2700K-Std-PIR-RAL7024-950mm	1,117	10	748	75
Dali
WBD10-AC-20GH-950	Westminster-360°-Door-10W-AC-6000K-Dali-RAL7024-950mm	1,320	10	884	88
WBD10-AN-20GH-950	Westminster-360°-Door-10W-AC-4000K-Dali-RAL7024-950mm	1,320	10	884	88
WBD10-AW-20GH-950	Westminster-360°-Door-10W-AC-3000K-Dali-RAL7024-950mm	1,117	10	748	75
WBD10-AX-20GH-950	Westminster-360°-Door-10W-AC-2700K-Dali-RAL7024-950mm	1,117	10	748	75
Dali - Emergency
WBD10-AC-32GH-950	Westminster-360°-Door-10W-AC-6000K-Dali-Dali/E3-RAL7024-950mm	1,320	10	884	88
WBD10-AN-32GH-950	Westminster-360°-Door-10W-AC-4000K-Dali-Dali/E3-RAL7024-950mm	1,320	10	884	88
WBD10-AW-32GH-950	Westminster-360°-Door-10W-AC-3000K-Dali-Dali/E3-RAL7024-950mm	1,117	10	748	75
WBD10-AX-32GH-950	Westminster-360°-Door-10W-AC-2700K-Dali-Dali/E3-RAL7024-950mm	1,117	10	748	75
Dali - Mini Photocell - Emergency
WBD10-AC-34GH-950	Westminster-360°-Door-10W-AC-6000K-Dali-M/Photocell-Dali/E3-RAL7024-950mm	1,320	10	884	88
WBD10-AN-34GH-950	Westminster-360°-Door-10W-AC-4000K-Dali-M/Photocell-Dali/E3-RAL7024-950mm	1,320	10	884	88
WBD10-AW-34GH-950	Westminster-360°-Door-10W-AC-3000K-Dali-M/Photocell-Dali/E3-RAL7024-950mm	1,117	10	748	75
WBD10-AX-34GH-950	Westminster-360°-Door-10W-AC-2700K-Dali-M/Photocell-Dali/E3-RAL7024-950mm	1,117	10	748	75
DALI - PIR Sensor
WBD10-AC-33GH-950	Westminster-360°-Door-10W-AC-6000K-DALI-PIR-RAL7024-950mm	1,320	10	884	88
WBD10-AN-33GH-950	Westminster-360°-Door-10W-AC-4000K-DALI-PIR-RAL7024-950mm	1,320	10	884	88
WBD10-AW-33GH-950	Westminster-360°-Door-10W-AC-3000K-DALI-PIR-RAL7024-950mm	1,117	10	748	75
WBD10-AX-33GH-950	Westminster-360°-Door-10W-AC-2700K-DALI-PIR-RAL7024-950mm	1,117	10	748	75

Note: Bollard will continue to work at 100% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

LED rating 1,320lm (4000K & 6000K).
LED rating 1,117lm (3000K & 2700K).
Luminaire flux 884lm (4000K & 6000K).
Luminaire flux 748lm (3000K & 2700K).
Total wattage 10W.
Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
-20 to +40°C operating temperature (Emergency 0 to +40°C).
IP65 / IK10 rated.
LED life span > 100,000hrs.
Osram LED and Osram driver with easy access to LED and driver via a removable head & access door.
Control options available are DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency and 180° Asymmetric Head.
Any painted RAL colour finish.
Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
6 Amp double pole, single fuse cut out, complete with brass plate with 2 x 20mm holes fitted as standard.
Tamper proof fixings for increased vandal resistance.
Manufactured from extruded die-cast aluminium with strong UV stabilised polycarbonate lens.
Compliant with Dark Skies recommendations (3000K + dimmable option).
Bat & Insect friendly (2700K + dimmable option).

Width: ⌀166mm

Height: 950mm

Length: N/A

Weight: 7.5kg/8kg

Westminster 10W [6000K – Cool White]:

10W – IP65/IK10 Rated LED Bollard compete with access door. Manufactured from extruded 3.5mm aluminium alloy (grade 6063) and stainless-steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint. Size 950mm x ø166mm. To include access door with two tamper-resistant fixing bolts and factory fitted 6amp fuse cut out. [Asymmetrical / Symmetrical] light distribution from High Power 6000K Osram LEDs with additional Open Circuit Protection. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Westminster 10W.

Westminster 10W [4000K – Neutral White]:

10W – IP65/IK10 Rated LED Bollard compete with access door. Manufactured from extruded 3.5mm aluminium alloy (grade 6063) and stainless-steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint. Size 950mm x ø166mm. To include access door with two tamper-resistant fixing bolts and factory fitted 6amp fuse cut out. [Asymmetrical / Symmetrical] light distribution from High Power 4000K Osram LEDs with additional Open Circuit Protection. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Westminster 10W.

Westminster 10W [3000K – Warm White]:

10W – IP65/IK10 Rated LED Bollard compete with access door. Manufactured from extruded 3.5mm aluminium alloy (grade 6063) and stainless-steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint. Size 950mm x ø166mm. To include access door with two tamper-resistant fixing bolts and factory fitted 6amp fuse cut out. [Asymmetrical / Symmetrical] light distribution from High Power 3000K Osram LEDs with additional Open Circuit Protection. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Westminster 10W.

Westminster 10W [2700K – Extra Warm White]:

10W – IP65/IK10 Rated LED Bollard compete with access door. Manufactured from extruded 3.5mm aluminium alloy (grade 6063) and stainless-steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint. Size 950mm x ø166mm. To include access door with two tamper-resistant fixing bolts and factory fitted 6amp fuse cut out. [Asymmetrical / Symmetrical] light distribution from High Power 2700K Osram LEDs with additional Open Circuit Protection. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Westminster 10W.

Notes: Delete as required.
