Dome Top Louvered LED Bollard
Nelson 30W

Name: Dome Top Louvered LED Bollard – Nelson 30W
Brand: Gemma Lighting
Availability: InStock

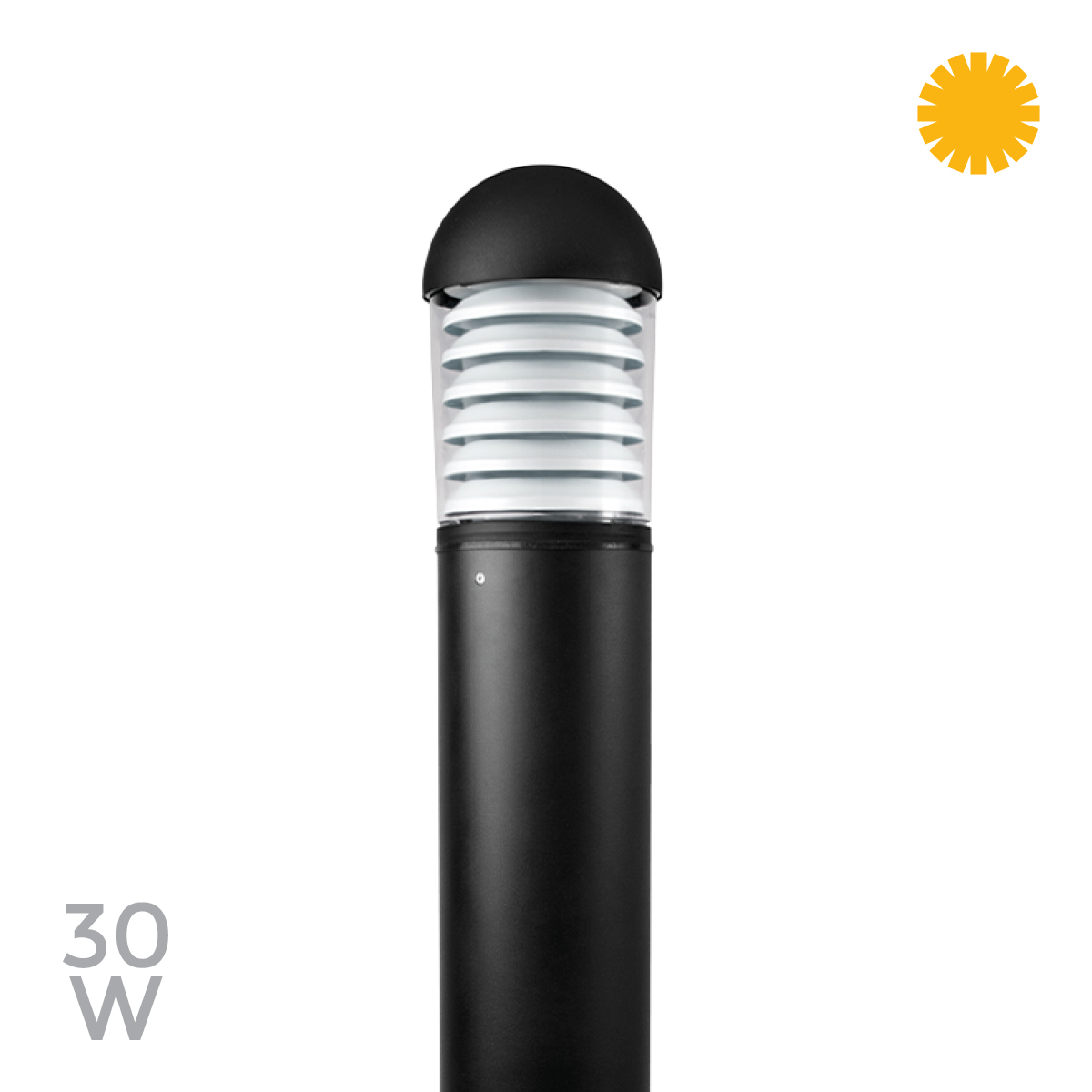

30W Emergency Dome-Top Louvered LED Bollard

The Nelson 30W Dome Top Louvered LED Bollard offers powerful lighting for outdoor areas. With a wattage of 30W, it produces an impressive 4,471 lumens of light and a luminaire flux of 3,130 lumens. This ensures bright and clear illumination. Its luminaire efficacy of 104 lumens per watt combines best performance with energy savings.

Additionally, the bollard is available in a warm white option, offering an LED rating of 3,867 lumens, luminaire flux of 2,707 lumens, and luminaire efficacy of 90 lumens per watt. Designed to provide high-quality lighting, this bollard is perfect for enhancing walkways, car parks, and other external areas.

Request a consultation

Gallery

30W DALI Emergency Dome Head Bollard for Care Homes

30W Black Dome-Top Louvered LED Bollard for Football Clubs

30W Dome-Top Louvered LED Bollard for Parish Councils

Datasheet

Install Guide

Photometry

Images

BIM files

Code	Description	LED Rating (lm)	Total Power (W)	Lum. Flux (lm)	Efficacy (llm/cW)
Standard
NB30-A5C-00B	Nelson - 30W - LED - AC - 6000K - Std - Black	4,471	30	3,130	104
NB30-A5N-00B	Nelson - 30W - LED - AC - 4000K - Std - Black	4,471	30	3,130	104
NB30-A5W-00B	Nelson - 30W - LED - AC - 3000K - Std - Black	3,867	30	2,707	90
NB30-A5X-00B	Nelson - 30W - LED - AC - 2700K - Std - Black	3,867	30	2,707	90
Standard-Emergency
NB30-A5C-01B	Nelson - 30W - LED - AC - 6000K - Std - E3 - Black	4,471	30	3,130	104
NB30-A5N-01B	Nelson - 30W - LED - AC - 4000K - Std - E3 - Black	4,471	30	3,130	104
NB30-A5W-01B	Nelson - 30W - LED - AC - 3000K - Std - E3 - Black	3,867	30	2,707	90
NB30-A5X-01B	Nelson - 30W - LED - AC - 2700K - Std - E3 - Black	3,867	30	2,707	90
Standard - Mini Photocell
NB30-A5C-04B	Nelson - 30W - LED - AC - 6000K - Std - M/Photocell - Black	4,471	30	3,130	104
NB30-A5N-04B	Nelson - 30W - LED - AC - 4000K - Std - M/Photocell - Black	4,471	30	3,130	104
NB30-A5W-04B	Nelson - 30W - LED - AC - 3000K - Std - M/Photocell - Black	3,867	30	2,707	90
NB30-A5X-04B	Nelson - 30W - LED - AC - 2700K - Std - M/Photocell - Black	3,867	30	2,707	90
Standard - Mini Photocell - Emergency
NB30-A5C-10B	Nelson - 30W - LED - AC - 6000K - Std - M/Photocell - E3 - Black	4,471	30	3,130	104
NB30-A5N-10B	Nelson - 30W - LED - AC - 4000K - Std - M/Photocell - E3 - Black	4,471	30	3,130	104
NB30-A5W-10B	Nelson - 30W - LED - AC - 3000K - Std - M/Photocell - E3 - Black	3,867	30	2,707	90
NB30-A5X-10B	Nelson - 30W - LED - AC - 2700K - Std - M/Photocell - E3 - Black	3,867	30	2,707	90
Dali
NB30-A5C-20B	Nelson - 30W - LED - AC - 6000K - Dali - Black	4,471	30	3,130	104
NB30-A5N-20B	Nelson - 30W - LED - AC - 4000K - Dali - Black	4,471	30	3,130	104
NB30-A5W-20B	Nelson - 30W - LED - AC - 3000K - Dali - Black	3,867	30	2,707	90
NB30-A5X-20B	Nelson - 30W - LED - AC - 2700K - Dali - Black	3,867	30	2,707	90
Dali - Emergency
NB30-A5C-21B	Nelson - 30W - LED - AC - 6000K - Dali - E3 - Black	4,471	30	3,130	104
NB30-A5N-21B	Nelson - 30W - LED - AC - 4000K - Dali - E3 - Black	4,471	30	3,130	104
NB30-A5W-21B	Nelson - 30W - LED - AC - 3000K - Dali - E3 - Black	3,867	30	2,707	90
NB30-A5X-21B	Nelson - 30W - LED - AC - 2700K - Dali - E3 - Black	3,867	30	2,707	90

Note: Bollard will continue to work at 33% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Key Features & Benefits:

Wattage: 30W
LED Rating (lm): 4,471 (4000K & 6000K) | 3,867 (2700K & 3000K)
Luminaire Flux (lm): 3,130 (4000K & 6000K) | 2,707 (2700K & 3000K)
Luminaire Efficacy (lm/W): 104 (4000K & 6000K) | 90 (2700K & 3000K)
Material: Strong die-cast aluminium and UV-stabilised polycarbonate for durability.
Louvre Design: Directs light efficiently and reduces upward light spill.
Colour Temperature Options: Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K), Cool White (6000K).
LED Lifespan: Over 100,000 hours.
Control Options: DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency.
Mounting Options: Flange plate or bolt-on root mount.
Vandal Resistance: Tamper-proof fixings for added security.
Easy Access: Removable head for quick maintenance.
Operating Temperature Range: Standard: -20°C to +40°C, Emergency: 0°C to +40°C.
Customisation: Available in RAL custom colours.
180° Spill Shield: For controlled light distribution.

The Nelson 30W Dome Top Louvered Bollard is perfect for architects and contractors who need high-performance outdoor lighting. Its durable construction, reliable components, and customisable features make it ideal for walkways, car parks, and other large outdoor spaces.

Width: ⌀180mm

Height: 1000mm

Length: N/A

Weight: 7.0kg/8.0kg

Nelson 30W [6000K – Cool White]:

IP65 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 30W with 3,920lm LED rating and minimum Luminaire Flux of 2,744lm from 6000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 30W.

Nelson 30W [4000K – Neutral White]:

IP65 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 30W with 3,920lm LED rating and minimum Luminaire Flux of 2,744lm from 4000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 30W.

Nelson 30W [3000K – Warm White]:

IP65 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 30W with 3,316lm LED rating and minimum Luminaire Flux of 2,321lm from 3000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 30W.

Nelson 30W [2700K – Extra Warm White]:

IP65 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 30W with 3,316lm LED rating and minimum Luminaire Flux of 2,321lm from 2700K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 30W.

Notes: Delete as required.
