LED Bollard Lighting

Nelson 10W
Black Dome LED Bollard

The Nelson 10W is a classic IP65 – IK10 rated Black Dome Head LED bollard, creating an energy efficient and stylish outdoor feature.

Manufactured from extruded die-cast aluminium, featuring louvres for optimum performance and a transparent strong UV stabilised polycarbonate diffuser.

Options available are Colour Temperature, DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 180° Spill Shield, and Surface Mount Flange Plate or Bolt-on Root Mount.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Wattage (W)

Lum. Flux (lm)

Lum. Efficacy (lm/W)

Standard
NB10-A1C-00B Nelson - 10W - LED - AC - 6K - Std - Black 1,320 10 924 92
NB10-A1N-00B Nelson - 10W - LED - AC - 4K - Std - Black 1,320 10 924 92
NB10-A1W-00B Nelson - 10W - LED - AC - 3K - Std - Black 1,117 10 782 78
Standard-Emergency
NB10-A1C-01B Nelson - 10W - LED - AC - 6K - Std - E3 - Black 1,320 10 924 92
NB10-A1N-01B Nelson - 10W - LED - AC - 4K - Std - E3 - Black 1,320 10 924 92
NB10-A1W-01B Nelson - 10W - LED - AC - 3K - Std - E3 - Black 1,117 10 782 78
Standard - Mini Photocell
NB10-A1C-04B Nelson - 10W - LED - AC - 6K - Std - M/Photocell - Black 1,320 10 924 92
NB10-A1N-04B Nelson - 10W - LED - AC - 4K - Std - M/Photocell - Black 1,320 10 924 92
NB10-A1W-04B Nelson - 10W - LED - AC - 3K - Std - M/Photocell - Black 1,117 10 782 78
Standard - Mini Photocell - Emergency
NB10-A1C-10B Nelson - 10W - LED - AC - 6K - Std - M/Photocell - E3 - Black 1,320 10 924 92
NB10-A1N-10B Nelson - 10W - LED - AC - 4K - Std - M/Photocell - E3 - Black 1,320 10 924 92
NB10-A1W-10B Nelson - 10W - LED - AC - 3K - Std - M/Photocell - E3 - Black 1,117 10 782 78
Dali
NB10-A1C-20B Nelson - 10W - LED - AC - 6K - Dali - Black 1,320 10 924 92
NB10-A1N-20B Nelson - 10W - LED - AC - 4K - Dali - Black 1,320 10 924 92
NB10-A1W-20B Nelson - 10W - LED - AC - 3K - Dali - Black 1,117 10 782 78
Dali - Emergency
NB10-A1C-21B Nelson - 10W - LED - AC - 6K - Dali - E3 - Black 1,320 10 924 92
NB10-A1N-21B Nelson - 10W - LED - AC - 4K - Dali - E3 - Black 1,320 10 924 92
NB10-A1W-21B Nelson - 10W - LED - AC - 3K - Dali - E3 - Black 1,117 10 782 78
Note: Bollard will continue to work at 100% for 3Hrs in emergency mode. Legend: Std = Standard. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 1,320lm (6000K & 4000K).
  • LED rating 1,117lm (3000K & 2700K).
  • Luminaire flux 924lm (6000K & 4000K).
  • Luminaire flux 793lm (3000K & 2700K).
  • Total wattage 10W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK10 rated.
  • LED Life span > 100,000hrs.
  • Osram LED and Osram Driver.
  • Easy access to LED and Driver via a removable head.
  • Control options available are DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency and 180° Spill Shield.
  • Any painted RAL colour finish.
  • Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
  • Aluminium louvres for optimum performance and minimal upward light.
  • Tamper proof fixings for increased vandal resistance.
  • Manufactured from extruded die-cast aluminium with strong UV stabilised polycarbonate diffuser.
  • Small (Mini / Short) bollard version available.

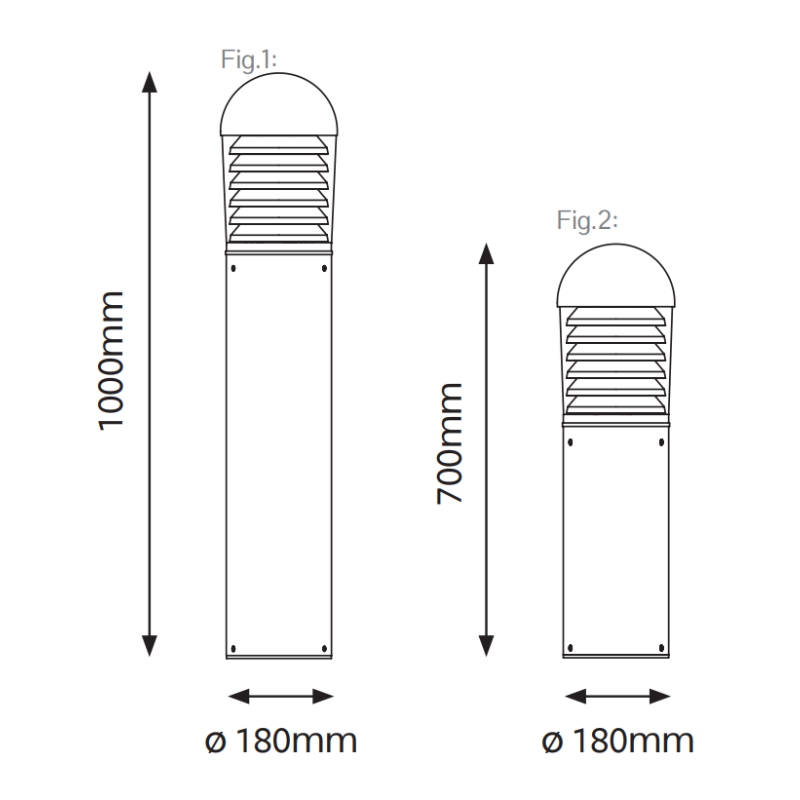

Width: ⌀180mm
Height: 1000mm
Length: N/A
Weight: 7.0kg/8.0kg

Nelson 10W [6000K – Cool White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 10W with 1,320lm LED rating and minimum Luminaire Flux of 924lm from 6000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 10W.

Nelson 10W [4000K – Neutral White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 10W with 1,320lm LED rating and minimum Luminaire Flux of 924lm from 4000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 10W.

Nelson 10W [3000K – Warm White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 10W with 1,117lm LED rating and minimum Luminaire Flux of 782lm from 3000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 10W.

Nelson 10W [2700K – Extra Warm White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 10W with 1,117lm LED rating and minimum Luminaire Flux of 782lm from 2700K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 10W.

Notes: Delete as required.

Car Parks
Parks & Gardens
Walkways
Retail
Security
Amenity
