Black Dome LED Bollard
Nelson 20W

LED Bollard Black Dome Head

Black Dome LED Bollard

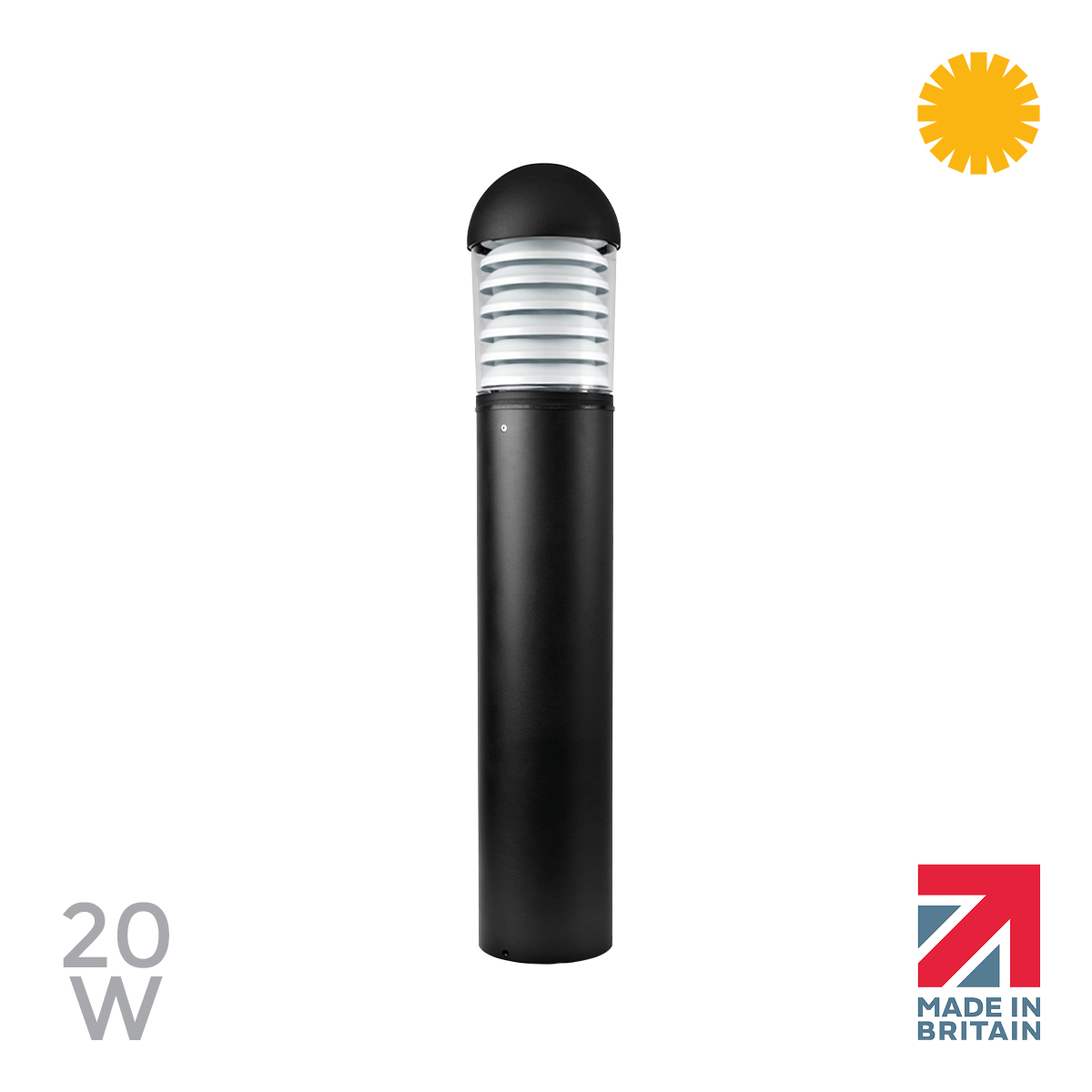

The Nelson 20W is a classic IP65 – IK10 rated Black Dome Head LED bollard, creating an energy efficient and stylish outdoor feature. Manufactured from extruded die-cast aluminium, featuring louvres for optimum performance and a transparent strong UV stabilised polycarbonate diffuser. Options available are Colour Temperature, DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 180° Spill Shield, 110V Operation, and Surface Mount Flange Plate or Bolt-on Root Mount. Note: As Black Dome Top LED Bollard manufacturers we can customise the height of the LED bollard light to meet your project requirements. We also offer a full OEM brown box service to meet your bespoke requirements.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

20W LED Bollard
NB20-A3C-00B Nelson - 20W - LED - AC - 6000K - Std - Black 2,640 20 1,848 92
NB20-A3N-00B Nelson - 20W - LED - AC - 4000K - Std - Black 2,640 20 1,848 92
NB20-A3W-00B Nelson - 20W - LED - AC - 3000K - Std - Black 2,233 20 1,563 78
NB20-A3X-00B Nelson - 20W - LED - AC - 2700K - Std - Black 2,233 20 1,563 78
20W Emergency LED Bollard
NB20-A3C-01B Nelson - 20W - LED - AC - 6000K - Std - E3 - Black 2,640 20 1,848 92
NB20-A3N-01B Nelson - 20W - LED - AC - 4000K - Std - E3 - Black 2,640 20 1,848 92
NB20-A3W-01B Nelson - 20W - LED - AC - 3000K - Std - E3 - Black 2,233 20 1,563 78
NB20-A3X-01B Nelson - 20W - LED - AC - 2700K - Std - E3 - Black 2,233 20 1,563 78
20W Mini Photocell LED Bollard
NB20-A3C-04B Nelson - 20W - LED - AC - 6000K - Std - M/Photocell - Black 2,640 20 1,848 92
NB20-A3N-04B Nelson - 20W - LED - AC - 4000K - Std - M/Photocell - Black 2,640 20 1,848 92
NB20-A3W-04B Nelson - 20W - LED - AC - 3000K - Std - M/Photocell - Black 2,233 20 1,563 78
NB20-A3X-04B Nelson - 20W - LED - AC - 2700K - Std - M/Photocell - Black 2,233 20 1,563 78
20W Mini Photocell - Emergency LED Bollard
NB20-A3C-10B Nelson - 20W - LED - AC - 6000K - Std - M/Photocell - E3 - Black 2,640 20 1,848 92
NB20-A3N-10B Nelson - 20W - LED - AC - 4000K - Std - M/Photocell - E3 - Black 2,640 20 1,848 92
NB20-A3W-10B Nelson - 20W - LED - AC - 3000K - Std - M/Photocell - E3 - Black 2,233 20 1,563 78
NB20-A3X-10B Nelson - 20W - LED - AC - 2700K - Std - M/Photocell - E3 - Black 2,233 20 1,563 78
20W PIR LED Bollard (Function: Off / On via presence detector)
NB20-A3C-13B Nelson - 20W - LED - AC - 6000K - Std - PIR - Black 2,640 20 1,848 92
NB20-A3N-13B Nelson - 20W - LED - AC - 4000K - Std - PIR - Black 2,640 20 1,848 92
NB20-A3W-13B Nelson - 20W - LED - AC - 3000K - Std - PIR - Black 2,233 20 1,563 78
NB20-A3X-13B Nelson - 20W - LED - AC - 2700K - Std - PIR - Black 2,233 20 1,563 78
20W PIR - Emergency LED Bollard (Function: Off / On via presence detector)
NB20-A3C-17B Nelson - 20W - LED - AC - 6000K - Std - PIR - E3 - Black 2,640 20 1,848 92
NB20-A3N-17B Nelson - 20W - LED - AC - 4000K - Std - PIR - E3 - Black 2,640 20 1,848 92
NB20-A3W-17B Nelson - 20W - LED - AC - 3000K - Std - PIR - E3 -Black 2,233 20 1,563 78
NB20-A3X-17B Nelson - 20W - LED - AC - 2700K - Std - PIR - E3 -Black 2,233 20 1,563 78
20W Dali LED Bollard
NB20-A3C-20B Nelson - 20W - LED - AC - 6000K - Dali - Black 2,640 20 1,848 92
NB20-A3N-20B Nelson - 20W - LED - AC - 4000K - Dali - Black 2,640 20 1,848 92
NB20-A3W-20B Nelson - 20W - LED - AC - 3000K - Dali - Black 2,233 20 1,563 78
NB20-A3X-20B Nelson - 20W - LED - AC - 2700K - Dali - Black 2,233 20 1,563 78
20W Dali - Dali/Emergency LED Bollard
NB20-A3C-32B Nelson - 20W - LED - AC - 6000K - Dali - Dali/E3 - Black 2,640 20 1,848 92
NB20-A3N-32B Nelson - 20W - LED - AC - 4000K - Dali - Dali/E3 - Black 2,640 20 1,848 92
NB20-A3W-32B Nelson - 20W - LED - AC - 3000K - Dali - Dali/E3 - Black 2,233 20 1,563 78
NB20-A3X-32B Nelson - 20W - LED - AC - 2700K - Dali - Dali/E3 - Black 2,233 20 1,563 78
20W Dali - PIR LED Bollard (Function: 30% On / 100% On via presence detector)
NB20-A3C-33B Nelson - 20W - LED - AC - 6000K - Dali - PIR - Black 2,640 20 1,848 92
NB20-A3N-33B Nelson - 20W - LED - AC - 4000K - Dali - PIR -Black 2,640 20 1,848 92
NB20-A3W-33B Nelson - 20W - LED - AC - 3000K - Dali - PIR -Black 2,233 20 1,563 78
NB20-A3X-33B Nelson - 20W - LED - AC - 2700K - Dali - PIR -Black 2,233 20 1,563 78
20W Dali - PIR - Dali/Emergency LED Bollard (Function: 30% On / 100% On via presence detector)
NB20-A3C-37B Nelson - 20W - LED - AC - 6000K - Dali - PIR - Dali/E3 - Black 2,640 20 1,848 92
NB20-A3N-37B Nelson - 20W - LED - AC - 4000K - Dali - PIR - Dali/E3 - Black 2,640 20 1,848 92
NB20-A3W-37B Nelson - 20W - LED - AC - 3000K - Dali - PIR - Dali/E3 - Black 2,233 20 1,563 78
NB20-A3X-37B Nelson - 20W - LED - AC - 2700K - Dali - PIR - Dali/E3 - Black 2,233 20 1,563 78
20W 110V LED Bollard
NB20-A3C-80B Nelson - 20W - LED - AC - 6000K - 110V - Black 2,640 20 1,848 92
NB20-A3N-80B Nelson - 20W - LED - AC - 4000K - 110V - Black 2,640 20 1,848 92
NB20-A3W-80B Nelson - 20W - LED - AC - 3000K - 110V - Black 2,233 20 1,563 78
NB20-A3X-80B Nelson - 20W - LED - AC - 2700K - 110V - Black 2,233 20 1,563 78
20W 12V DC LED Bollard
NB20-DAC-00B Nelson - 20W - LED - DC - 6000K - 12V - Black 2,640 20 1,848 92
NB20-DAN-00B Nelson - 20W - LED - DC - 4000K - 12V - Black 2,640 20 1,848 92
NB20-DAW-00B Nelson - 20W - LED - DC - 3000K - 12V - Black 2,233 20 1,563 78
NB20-DAX-00B Nelson - 20W - LED - DC - 2700K - 12V - Black 2,233 20 1,563 78
Note: Bollard will continue to work at 50% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 2,640lm (6000K & 4000K).
  • LED rating 2,233lm (3000K & 2700K).
  • Luminaire flux 1,848lm (6000K & 4000K).
  • Luminaire flux 1,563lm (3000K & 2700K).
  • Total wattage 20W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK10 rated.
  • LED Life span > 100,000hrs.
  • Osram LED and Osram Driver.
  • Easy access to LED and Driver via a removable head.
  • Control options available are DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 110V Operation, and 180° Spill Shield.
  • Any painted RAL colour finish.
  • Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
  • Aluminium louvres for optimum performance and minimal upward light.
  • Tamper proof fixings for increased vandal resistance.
  • Manufactured from extruded die-cast aluminium with strong UV stabilised polycarbonate diffuser.
  • Small (Mini / Short) bollard version available.
Width: ⌀180mm
Height: 1000mm
Length: N/A
Weight: 7.0kg/8.0kg

Nelson 20W [6000K – Cool White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,640lm LED rating and minimum Luminaire Flux of 1,848lm from 6000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 20W.

Nelson 20W [4000K – Neutral White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,640lm LED rating and minimum Luminaire Flux of 1,848lm from 4000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 20W.

Nelson 20W [3000K – Warm White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,233lm LED rating and minimum Luminaire Flux of 1,563lm from 3000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 20W.

Nelson 20W [2700K – Extra Warm White]:

IP55 Black Dome Head LED Bollard with white coated steel louvres and UV stabilised polycarbonate diffuser – Size 1000mm x ø180mm. 20W with 2,233lm LED rating and minimum Luminaire Flux of 1,563lm from 2700K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Nelson 20W.

Notes: Delete as required.
