Admiralty 20W
Stainless Steel LED Bollard
The Admiralty is a modern and stylish IP55 / IK10 rated stainless steel LED Bollard.
Manufactured from 316 Stainless Steel, featuring aluminium louvres for optimum performance and a transparent strong UV stabilised polycarbonate diffuser.

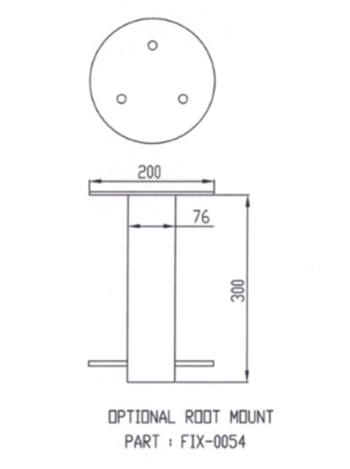

Options available include bolt-on root, 180° spill shield and 3hr emergency.
Gallery
Datasheet
Install Guide
Photometry
Images
BIM files
| Code | Description |
LED Rating (lm) |
Total Wattage (W) |
Lum. Flux (lm) |
Lum. Efficacy (lm/W) |
|---|---|---|---|---|---|
| Standard | |||||
| AB20-A3C-00-SS316 | Admiralty - 20W - LED - AC - 6K - Std - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3N-00-SS316 | Admiralty - 20W - LED - AC - 4K - Std - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3W-00-SS316 | Admiralty - 20W - LED - AC - 3K - Std - SS316 | 2,233 | 20 | 1,586 | 79 |
| Standard-Emergency | |||||
| AB20-A3C-01-SS316 | Admiralty - 20W - LED - AC - 6K - Std - E3 - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3N-01-SS316 | Admiralty - 20W - LED - AC - 4K - Std - E3 - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3W-01-SS316 | Admiralty - 20W - LED - AC - 3K - Std - E3 - SS316 | 2,233 | 20 | 1,586 | 79 |
| Dali | |||||
| AB20-A3C-20-SS316 | Admiralty - 20W - LED - AC - 6K - Dali - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3N-20-SS316 | Admiralty - 20W - LED - AC - 4K - Dali - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3W-20-SS316 | Admiralty - 20W - LED - AC - 3K - Dali - SS316 | 2,233 | 20 | 1,586 | 79 |
| Dali - Emergency | |||||
| AB20-A3C-21-SS316 | Admiralty - 20W - LED - AC - 6K - Dali - E3 - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3N-21-SS316 | Admiralty - 20W - LED - AC - 4K - Dali - E3 - SS316 | 2,640 | 20 | 1,874 | 94 |
| AB20-A3W-21-SS316 | Admiralty - 20W - LED - AC - 3K - Dali - E3 - SS316 | 2,233 | 20 | 1,586 | 79 |
Legend: Std = Standard. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K).
Features & benefits
- LED rating 2,640lm (6000K & 4000K).
- LED rating 2,233lm (3000K).
- Luminaire flux 1,874lm (6000K & 4000K).
- Luminaire flux 1,586lm (3000K).
- Total wattage 20W.
- 6000K (CW), 4000K (NW) and 3000K (WW) colour temperature.
- -20 to +40°C operating temperature (Emergency 0 to +40°C).
- IP55/IK10 rated.
- LED life span > 100,000hrs.
- Standard Weight 8.5Kg/9.5Kg.
- Osram LED and Osram Driver.
- Easy access to LED and Driver via a removable head.
- Options available include bolt-on root, 180° spill shield and 3hr emergency.
- Aluminium louvres for optimum performance and minimal upward light.
- Tamper proof fixings for increased vandal resistance.
- 304 stainless steel with strong UV stabilised polycarbonate lens.
Admiralty 20W [6000K – Cool White]:
IP55 304 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 20W with 2,640lm LED Rating and minimum Luminaire Flux of 1,874lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency]. As Gemma Lighting – Admiralty 20W.
Admiralty 20W [4000K – Neutral White]:
IP55 304 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 20W with 2,640lm LED Rating and minimum Luminaire Flux of 1,874lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency]. As Gemma Lighting – Admiralty 20W.
Admiralty 20W [3000K – Warm White]:
IP55 304 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 20W with 2,233lm LED Rating and minimum Luminaire Flux of 1,586lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency]. As Gemma Lighting – Admiralty 20W.
Notes: Delete as required.
