LED Bollard Lighting

Stainless Steel LED Bollard
Admiralty 30W

Stainless Steel LED Bollard

The Admiralty 30W is a modern and stylish IP55 – IK10 316 marine grade stainless steel LED Bollard.

Manufactured from 316 marine grade stainless steel, featuring aluminium louvres for optimum performance and a transparent strong UV stabilised polycarbonate diffuser.

Options available are Colour Temperature, DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 180° Spill Shield, 110V Operation, and Surface Mount Flange Plate or Bolt-on Root Mount.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard
AB30-A5C-00-SS316 Admiralty - 30W - LED - AC - 6K - Std - SS316 3,920 30 2,783 93
AB30-A5N-00-SS316 Admiralty - 30W - LED - AC - 4K - Std - SS316 3,920 30 2,783 93
AB30-A5W-00-SS316 Admiralty - 30W - LED - AC - 3K - Std - SS316 3,316 30 2,355 78
Standard-Emergency
AB30-A5C-01-SS316 Admiralty - 30W - LED - AC - 6K - Std - E3 - SS316 3,920 30 2,783 93
AB30-A5N-01-SS316 Admiralty - 30W - LED - AC - 4K - Std - E3 - SS316 3,920 30 2,783 93
AB30-A5W-01-SS316 Admiralty - 30W - LED - AC - 3K - Std - E3 - SS316 3,316 30 2,355 78
Dali
AB30-A5C-20-SS316 Admiralty - 30W - LED - AC - 6K - Dali - SS316 3,920 30 2,783 93
AB30-A5N-20-SS316 Admiralty - 30W - LED - AC - 4K - Dali - SS316 3,920 30 2,783 93
AB30-A5W-20-SS316 Admiralty - 30W - LED - AC - 3K - Dali - SS316 3,316 30 2,355 78
Dali - Emergency
AB30-A5C-21-SS316 Admiralty - 30W - LED - AC - 6K - Dali - E3 - SS316 3,920 30 2,783 93
AB30-A5N-21-SS316 Admiralty - 30W - LED - AC - 4K - Dali - E3 - SS316 3,920 30 2,783 93
AB30-A5W-21-SS316 Admiralty - 30W - LED - AC - 3K - Dali - E3 - SS316 3,316 30 2,355 78
Note: Bollard will continue to work at 33% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 3,920lm (6000K & 4000K).
  • LED rating 3,316lm (3000K & 2700K).
  • Luminaire flux 2,783lm (6000K & 4000K).
  • Luminaire flux 2,355lm (3000K & 2700K).
  • Total wattage 30W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP55 / IK10 rated.
  • LED life span > 100,000hrs.
  • Standard Weight 8.5Kg.
  • Osram LED and Osram Driver.
  • Easy access to LED and Driver via a removable head.
  • Control options available are DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 110V Operation, and 180° Spill Shield.
  • Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
  • Aluminium louvres for optimum performance and minimal upward light.
  • Tamper proof fixings for increased vandal resistance.
  • 316 marine grade stainless steel with strong UV stabilised polycarbonate diffuser.

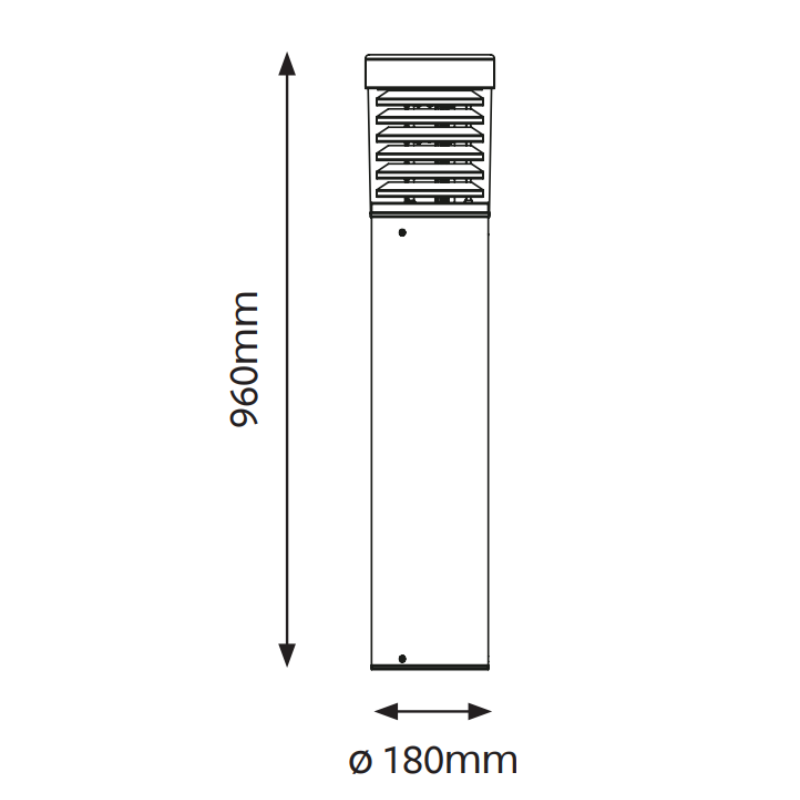

Width: ⌀180mm
Height: 960mm
Length: N/A
Weight: 8.5Kg/9.5Kg

Admiralty 30W [6000K – Cool White]:

IP65 316 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 30W with 3,920lm LED Rating and minimum Luminaire Flux of 2,783lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Admiralty 30W.

Admiralty 30W [4000K – Neutral White]:

IP65 316 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 30W with 3,920lm LED Rating and minimum Luminaire Flux of 2,783lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Admiralty 30W.

Admiralty 30W [3000K – Warm White]:

IP65 316 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 30W with 3,316lm LED Rating and minimum Luminaire Flux of 2,355lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Admiralty 30W.

Admiralty 30W [2700K – Extra Warm White]:

IP65 316 stainless steel LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 30W with 3,316lm LED Rating and minimum Luminaire Flux of 2,355lm. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Admiralty 30W.

Notes: Delete as required.
