LED Bollard Lighting

Neptune 5W
Wooden LED Bollard

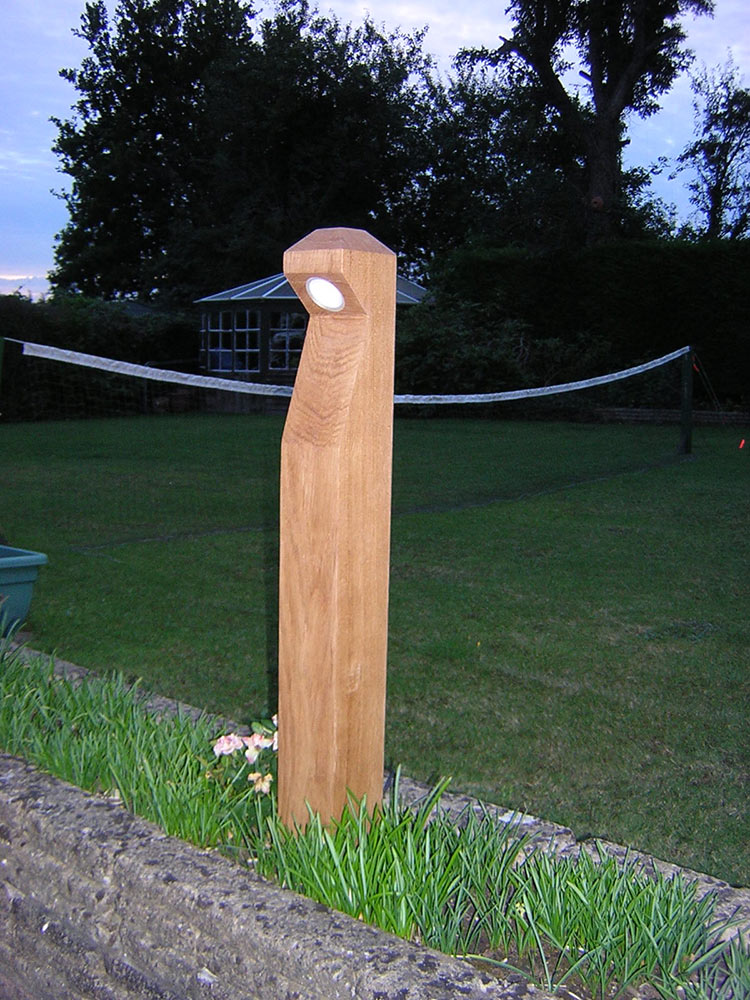

The Neptune 5W is a beautifully designed IP65 / IP68* – IK08 rated wooden bollard with a 120° beam LED, making an impressive addition to any project.

Manufactured from Iroko wood or Oak wood, the cleverly designed notch and chamfers look fantastic when approached from any direction.

Options include 2700K Extra Warm White, 3000K Warm White, 4000K Neutral White and 6000K Cool White colour temperatures, and Surface Mount Flange Plate or Bolt-on Root Mount.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Wattage (W)

Lum. Flux (lm)

Lum. Efficacy (lm/W)

Standard
NWPM-A5C-00-IR Neptune - 5 Watt - LED - AC - 6K - Iroko 450 5 340 68
NWPM-A5N-00-IR Neptune - 5 Watt - LED - AC - 4K - Iroko 450 5 340 68
NWPM-A5W-00-IR Neptune - 5 Watt - LED - AC - 3K - Iroko 400 5 302 60
Legend: 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 450lm (6000K & 4000K).
  • LED rating 400lm (3000K).
  • Luminaire flux 340lm (6000K & 4000K).
  • Luminaire flux 302lm (3000K).
  • Total wattage 5W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65-IP68 / IK08 rated.
  • LED life span > 70,000hrs.
  • Standard weight 4.0Kg.
  • Iroko wood / Oak wood with cleverly designed cut angles.
  • Contains an LED lamp that can be changed at end of life.
  • Optional Surface Mount Flange Plate or Bolt-on Root Mount available separately.
Width: 94mm
Height: 1100mm
Length: 94mm
Weight: 4.0kg

Neptune 5W [6000K – Cool White]:

Wooden 120° beam exterior LED bollard – Size:1100mm x 94mm. 5W with 450lm rating and minimum Luminaire Flux of 340lm from 6000K LEDs. [Iroko wood / Oak wood] with overall impact rating of IK08. LED Life span of 25,000hrs with ability to change LED lamp at end of life. As Gemma Lighting – Neptune 5W.

Neptune 5W [4000K – Neutral White]:

Wooden 120° beam exterior LED bollard – Size:1100mm x 94mm. 5W with 450lm rating and minimum Luminaire Flux of 340lm from 4000K LEDs. [Iroko wood / Oak wood] with overall impact rating of IK08. LED Life span of 25,000hrs with ability to change LED lamp at end of life. As Gemma Lighting – Neptune 5W.

Neptune 5W [3000K – Warm White]:

Wooden 120° beam exterior LED bollard – Size:1100mm x 94mm. 5W with 400lm rating and minimum Luminaire Flux of 302lm from 3000K LEDs. [Iroko wood / Oak wood] with overall impact rating of IK08. LED Life span of 25,000hrs with ability to change LED lamp at end of life. As Gemma Lighting – Neptune 5W.

Neptune 5W [2700K – Extra Warm White]:

Wooden 120° beam exterior LED bollard – Size:1100mm x 94mm. 5W with 400lm rating and minimum Luminaire Flux of 302lm from 2700K LEDs. [Iroko wood / Oak wood] with overall impact rating of IK08. LED Life span of 25,000hrs with ability to change LED lamp at end of life. As Gemma Lighting – Neptune 5W.

Notes: Delete as required.

Parks & Gardens
Car Parks
Walkways
Retail
Amenity Areas
Prestigious Grounds
