LED Flood Lighting

Drayton 100W
LED Flood Light

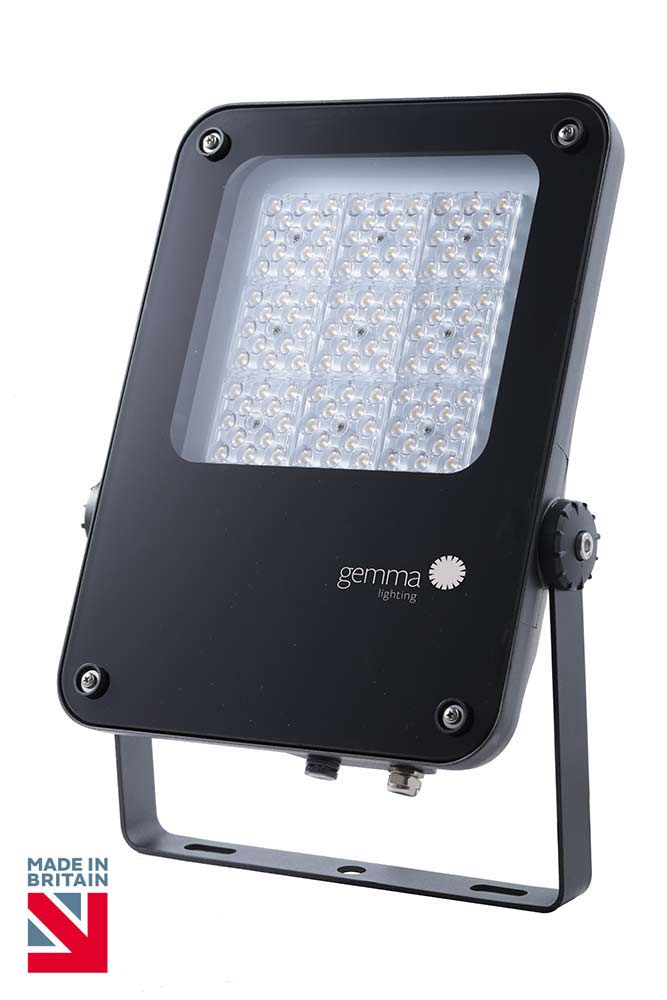

The Drayton 100W is an IP65 – IK08 robust and durable LED Flood Light. Manufactured with a die-cast aluminium body, 4mm thick toughened glass panel and pre-wired with 700mm of cable. Available In CCT 3000K warm white or 4000K neutral white and with a choice of 3 optics types offering Symmetrical and Asymmetrical light distributions. Options available are colour temperature, NEMA Socket, PIR Sensor, 110V Operation, and Flood Light Brackets/ Adaptors.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard (4000K)
DR100-AN-00B-1 Drayton-100W-LED-AC-4K-Std-Black-Optic 1 12,750 100 12,113 121
DR100-AN-00B-2 Drayton-100W-LED-AC-4K-Std-Black-Optic 2 12,750 100 12,113 121
DR100-AN-00B-3 Drayton-100W-LED-AC-4K-Std-Black-Optic 3 12,750 100 12,113 121
Standard (3000K)
DR100-AW-00B-1 Drayton-100W-LED-AC-3K-Std-Black-Optic 1 10,774 100 10,235 102
DR100-AW-00B-2 Drayton-100W-LED-AC-3K-Std-Black-Optic 2 10,774 100 10,235 102
DR100-AW-00B-3 Drayton-100W-LED-AC-3K-Std-Black-Optic 3 10,774 100 10,235 102
Standard-NemaSocket (4000K)
DR100-AN-05B-1 Drayton-100W-LED-AC-4K-Std-Nema Socket-Black-Optic 1 12,750 100 12,113 121
DR100-AN-05B-2 Drayton-100W-LED-AC-4K-Std-Nema Socket-Black-Optic 2 12,750 100 12,113 121
DR100-AN-05B-3 Drayton-100W-LED-AC-4K-Std-Nema Socket-Black-Optic 3 12,750 100 12,113 121
Standard-NemaSocket (3000K)
DR100-AW-05B-1 Drayton-100W-LED-AC-3K-Std-Nema Socket-Black-Optic 1 10,774 100 10,235 102
DR100-AW-05B-2 Drayton-100W-LED-AC-3K-Std-Nema Socket-Black-Optic 2 10,774 100 10,235 102
DR100-AW-05B-3 Drayton-100W-LED-AC-3K-Std-Nema Socket-Black-Optic 3 10,774 100 10,235 102
Legend: Std = Standard. 4K = Neutral White (4000K). 3K = Warm White (3000K). Notes: Nema Socket supplied on 2M flying lead. Nema Cell can be purchased separately as code: LIT- 0010.

Features & benefits

  • LED rating 12,750lm (4000K).
  • LED rating 10,774lm (3000K).
  • Luminaire flux 12,113lm (4000K).
  • Luminaire flux 10,235lm (3000K).
  • Total wattage 100W.
  • Warm White (3K) & Neutral White (4K) colour temperature options.
  • -20 to +40 °C operating temperature.
  • IP65 / IK08 rated.
  • LED life span > 65,000hrs.
  • Premium LEDs and top tier driver.
  • Universal bracket for T/Bar bracket and wall fixing.
  • 4mm thick toughened glass panel.
  • Pre-wired with 700mm of cable.
  • Choice of 3 optics for Symmetrical and Asymmetrical light distribution.
  • Control options available are NEMA Socket, PIR Sensor, and 110V Operation.
  • Optional floodlight brackets and adaptors available.
Width: 285.1mm
Height: 406.3mm
Length: 61mm
Weight: 4.0Kg

Drayton 100W LED Flood Light [4000K – Neutral White]:

100W IP65 / IK08 LED Flood Light manufactured with a black die-cast aluminium body and a 4mm thick toughened glass panel. Fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2 / Asymmetrical Optic 3] and 4000K LEDs with 12,750lm LED rating and minimum Luminaire Flux of 12,113lm. Size: 257mm x 406mm x 61mm. Pre wired with 700mm of cable. To contain [Nema Socket on flying lead / PIR Sensor on flying lead]. As Gemma Lighting – Drayton 100W LED Flood Light.

Drayton 100W LED Flood Light [3000K – Warm White]:

100W IP65 / IK08 LED Flood Light manufactured with a black die-cast aluminium body and a 4mm thick toughened glass panel. Fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2 / Asymmetrical Optic 3] and 3000K LEDs with 10,774lm LED rating and minimum Luminaire Flux of 10,235lm. Size: 257mm x 406mm x 61mm. Pre wired with 700mm of cable. To contain [Nema Socket on flying lead / PIR Sensor on flying lead]. As Gemma Lighting – Drayton 100W LED Flood Light.

Notes: Delete as required.

Security
Gantry
Car Parks
Perimeter Fence
Canopy
Facade
