LED Flood Lighting

Hurricane 250W
LED Flood Light

The Hurricane 250W is an IP66 – IK08 robust and durable LED Flood Light with high performance LEDs and driver.

The Hurricane is a high power sport & security flood light and can be manufactured with Symmetrical or Asymmetrical optics and adjustable modules to provide maximum flexibility on each project.

A modern future proof design that can provide excellent energy savings over traditional technology.

Options available are colour temperature, NEMA Socket, PIR Sensor, 110V Operation, Flood Light Brackets/ Adaptors and Light Visor.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard - Optic 1
HU250-AN-00B-1 Hurricane-250W-LED-AC-4K-Std-Black-SYM-Optic 1 37,500 250 34,125 137
Standard - Optic 2
HU250-AN-00B-2 Hurricane-250W-LED-AC-4K-Std-Black-SYM-Optic 2 37,500 250 32,250 129
Standard - Nema Socket - Optic 1
HU250-AN-05B-1 Hurricane-250W-LED-AC-4K-Std-NemaSocket-Black-SYM-Optic 1 37,500 250 34,125 137
Standard - Nema Socket - Optic 2
HU250-AN-05B-2 Hurricane-250W-LED-AC-4K-Std-NemaSocket-Black-SYM-Optic 2 37,500 250 32,250 129
Standard - PIR 6M - Optic 1
HU250-AN-07B-1 Hurricane-250W-LED-AC-4K-Std-PIR6M-Black-SYM-Optic 1 37,500 250 34,125 137
Standard - PIR 6M - Optic 2
HU250-AN-07B-2 Hurricane-250W-LED-AC-4K-Std-PIR6M-Black-SYM-Optic 2 37,500 250 32,250 129
Standard - PIR 12M - Optic 1
HU250-AN-08B-1 Hurricane-250W-LED-AC-4K-Std-PIR12M-Black-SYM-Optic 1 37,500 250 34,125 137
Standard - PIR 12M - Optic 2
HU250-AN-08B-2 Hurricane-250W-LED-AC-4K-Std-PIR12M-Black-SYM-Optic 2 37,500 250 32,250 129
Legend: Std = Standard. SYM = Symmetrical Beam. A/SYM = Asymmetrical Beam. 4K = Neutral White (4000K). NW = Neutral White.

Features & benefits

  • LED rating 37,500lm (4000K).
  • Luminaire flux 34,125lm (4000K – Symmetrical).
  • Luminaire flux 32,250lm (4000K – Asymmetrical).
  • Total wattage 250W.
  • -20 to +40°C operating temperature.
  • LED life span > 50,000hrs.
  • IP66 / IK08 rated.
  • Premium LEDs and top tier driver.
  • 2 optics types offering Symmetrical (Optic 1) and Asymmetrical (Optic 2) light distributions.
  • Control options avilable are NEMA Socket, PIR Sensor, 110V Operation, and light visors.
  • Optional floodlight brackets, and adaptors available.
  • Universal bracket for T/Bar bracket and wall fixing.
  • Aluminium body with stainless steels fixings.
  • RAL9006 – Black.
  • 4mm thick toughened glass panel.
  • Fixing hole for 20mm bolt for added strength.
  • Pre-wired with 1000mm of cable.

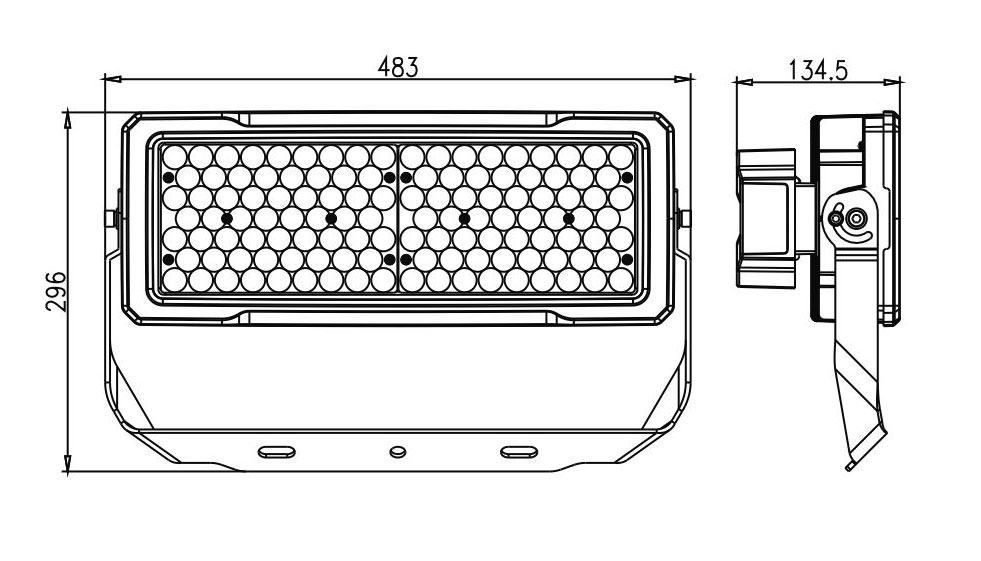

Width: 483mm
Height: 296mm
Length: 134.5mm
Weight: 7.0Kg

Hurricane 250W [4000K – Neutral White]:

250W IP66 / IK08 LED Flood Light manufactured with a black die-cast aluminium body and a 4mm thick toughened glass panel. Fitted with [Symmetrical Optic 1 / Asymmetrical Optic 2] and 4000K LEDs with 37,500lm LED rating and minimum Luminaire Flux of 34,125lm (Symmetrical Optic) / 32,250lm (Asymmetrical Optic). Size: 296mm x 483mm x 13.5mm. Pre wired with 1000mm of cable. To contain [Nema Socket on flying lead / PIR Sensor]. As Gemma Lighting – Hurricane 250W.

Notes: Delete as required.

Security
Gantry
Car Parks
Perimeter Fence
Canopy
Facade
