LED Industrial Lighting

Orion 100W
LED High Bay

The Orion 100W is a robust low weight, high efficiency IP65 / IK08 rated LED High Bay.

Manufactured with a pure aluminium heat sink for maximum heat dissipation and featuring an aluminium reflector in a choice of beam angles.

Options include 1-10V LED driver, Microwave Sensor and 60° or 90° beam reflector.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard
OR100-A4N-00-S60 Orion - 100W - LED - AC - 4K - Std - 60° Beam Reflector 13,500 100 11,516 115
OR100-A4N-00-S90 Orion - 100W - LED - AC - 4K - Std - 90° Beam Reflector 13,500 100 11,516 115
1-10V
OR100-A4N-40-S60 Orion - 100W - LED - AC - 4K - 1-10V - 60° Beam Reflector 13,500 100 11,516 115
OR100-A4N-40-S90 Orion - 100W - LED - AC - 4K - 1-10V - 90° Beam Reflector 13,500 100 11,516 115
1-10V - Microwave
OR100-A4N-42-S60 Orion - 100W - LED - AC - 4K - 1-10V - MW - 60° Beam Reflector 13,500 100 11,516 115
OR100-A4N-42-S90 Orion - 100W - LED - AC - 4K - 1-10V - MW - 60° Beam Reflector 13,500 100 11,516 115

Legend: Std = Standard. 4K = Neutral White (4000K).

Features & benefits

  • LED rating 13,500lm.
  • Luminaire flux 11,516lm
  • Total wattage 100W.
  • 4000K colour temperature – neutral white.
  • IP65/IK08 rated.
  • -20 to +40°C operating temperature.
  • LED life span > 65,000hrs.
  • Standard weight 3.5Kg.
  • Nichia high power LEDs.
  • Options include 1-10V LED driver and Dali.
  • Pure aluminium heat sink for maximum heat dissipation.
  • High impact aluminium reflector.
  • Compact low weight design.

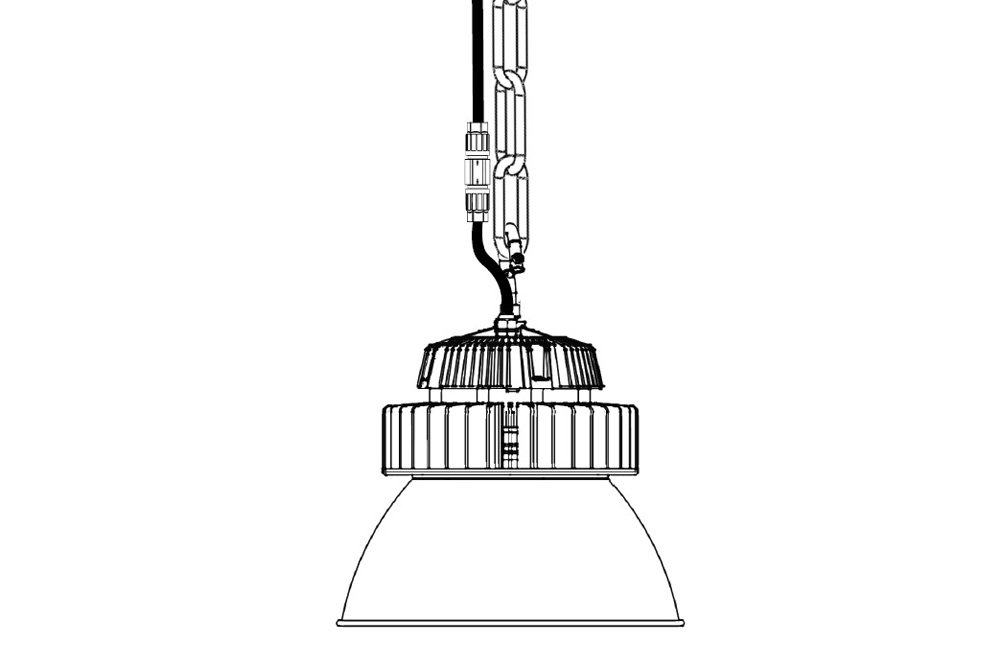

Width: Ø355mm
Height: 371mm
Length: N/A
Weight: 3.5Kg

IP65 LED High Bay with pure aluminium heat sink and high impact [60° / 90°] aluminium reflector – Maximum weight 3.5Kg. 100W with 13,500lm LED rating and minimum Luminaire Flux of 11,516lm from 4000K LEDs. LED Life span of 65,000hrs from Nichia LEDs and [Meanwell LED Driver / 1-10V Driver / Dali Driver]. As Gemma Lighting – Orion 100W.

Notes: Delete as required.

Warehouse
Factories
Manufacturing
Industrial Plant
Retail
Buildings
