LED Industrial Lighting

Orion 150W
LED High Bay

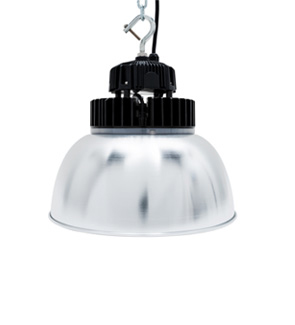

The Orion 150W is a robust low weight, high efficiency IP65 / IK08 rated LED High Bay.

Manufactured with a pure aluminium heat sink for maximum heat dissipation and featuring an aluminium reflector in a choice of beam angles.

Options include 1-10V LED driver,, Microwave Sensor and 60° or 90° beam reflector.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Wattage (W)

Lum. Flux (lm)

Lum. Efficacy (lm/W)

Standard
OR150-A7N-00-S60 Orion - 150W - LED - AC - 4K - Std - 60° Beam Reflector 20,000 150 17,060 114
OR150-A7N-00-S90 Orion - 150W - LED - AC - 4K - Std - 90° Beam Reflector 20,000 150 17,060 114
1-10V
OR150-A7N-40-S60 Orion - 150W - LED - AC - 4K - 1-10V - 60° Beam Reflector 20,000 150 17,060 114
OR150-A7N-40-S90 Orion - 150W - LED - AC - 4K - 1-10V - 90° Beam Reflector 20,000 150 17,060 114
1-10V - Microwave
OR150-A7N-42-S60 Orion - 150W - LED - AC - 4K - 1-10V - MW - 60° Beam Reflector 20,000 150 17,060 114
OR150-A7N-42-S90 Orion - 150W - LED - AC - 4K - 1-10V - MW - 60° Beam Reflector 20,000 150 17,060 114

Legend: Std = Standard. 4K = Neutral White (4000K).

Features & benefits

  • LED rating 20,000lm.
  • Luminaire flux 17,060lm
  • Total wattage 150W.
  • 4000K colour temperature – neutral white.
  • IP65/IK08 rated.
  • -20 to +40°C operating temperature.
  • LED life span > 65,000hrs.
  • Standard weight 4.5Kg.
  • Nichia high power LEDs.
  • Options include 1-10V LED driver and Dali.
  • Pure aluminium heat sink for maximum heat dissipation.
  • High impact aluminium reflector.
  • Compact low weight design.
Width: Ø355mm
Height: 369mm
Length: N/A
Weight: 4.5Kg

IP65 LED High Bay with pure aluminium heat sink and high impact [60° / 90°] aluminium reflector – Maximum weight 4.5Kg. 150W with 20,000lm LED rating and minimum Luminaire Flux of 17,060lm from 4000K LEDs. LED Life span of 65,000hrs from Nichia LEDs and [Meanwell LED Driver / 1-10V Driver / Dali Driver]. As Gemma Lighting – Orion 150W.

Notes: Delete as required.

Warehouse
Factories
Manufacturing
Industrial Plant
Retail
Buildings
