LED Industrial Lighting

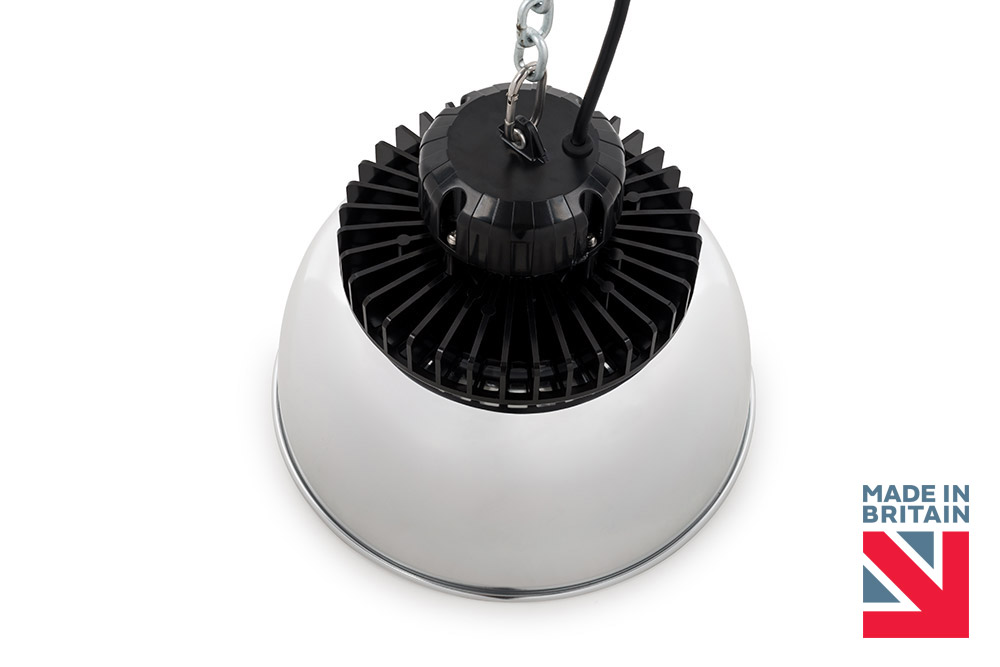

Orion 60W
LED Low Bay

The Orion 60W is a robust low weight, high efficiency IP44 rated LED Low Bay.

Manufactured with a pure aluminium heat sink for maximum heat dissipation and featuring an aluminium reflector in a choice of beam angles.

Request a consultation

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code	Description	LED Rating (lm)	Total Power (W)	Lum. Flux (lm)	Efficacy (llm/cW)
Standard
OR60-A1N-00-S60	Orion - 60W - LED - AC - 4K - Std - 60° Beam Reflector	8,000	60	6,824	114
OR60-A1N-00-S90	Orion - 60W - LED - AC - 4K - Std - 90° Beam Reflector	8,000	60	6,824	114

Legend: Std = Standard. 4K = Neutral White (4000K).

Features & benefits

LED rating 8,000lm.
Luminaire flux 6,824lm.
Total wattage 60W.
LED life span > 65,000hrs.
4000K colour temperature – neutral white.
-20 to +40 operating temperature.
Nichia high power LEDs.
Pure aluminium heat sink for maximum heat dissipation.
High impact aluminium reflector.

Width: Ø304mm

Height: 280mm

Length: N/A

Weight: 2.0Kg

IP44 LED Low Bay with pure aluminium heat sink and high impact [60°/90°]. beam prismatic diffuser – Maximum weight 2.0Kg. 60W with 8,000lm LED rating and minimum Luminaire Flux of 6,824lm from 4000K LEDs. LED Life span of 65,000hrs from Nichia LEDs and [Meanwell LED Driver / 1-10V Driver / Dali Driver]. As Gemma Lighting – Orion 60W.

Notes: Delete as required.
