LED Solar Lighting

GemSun 15W
LED Solar Street Light System

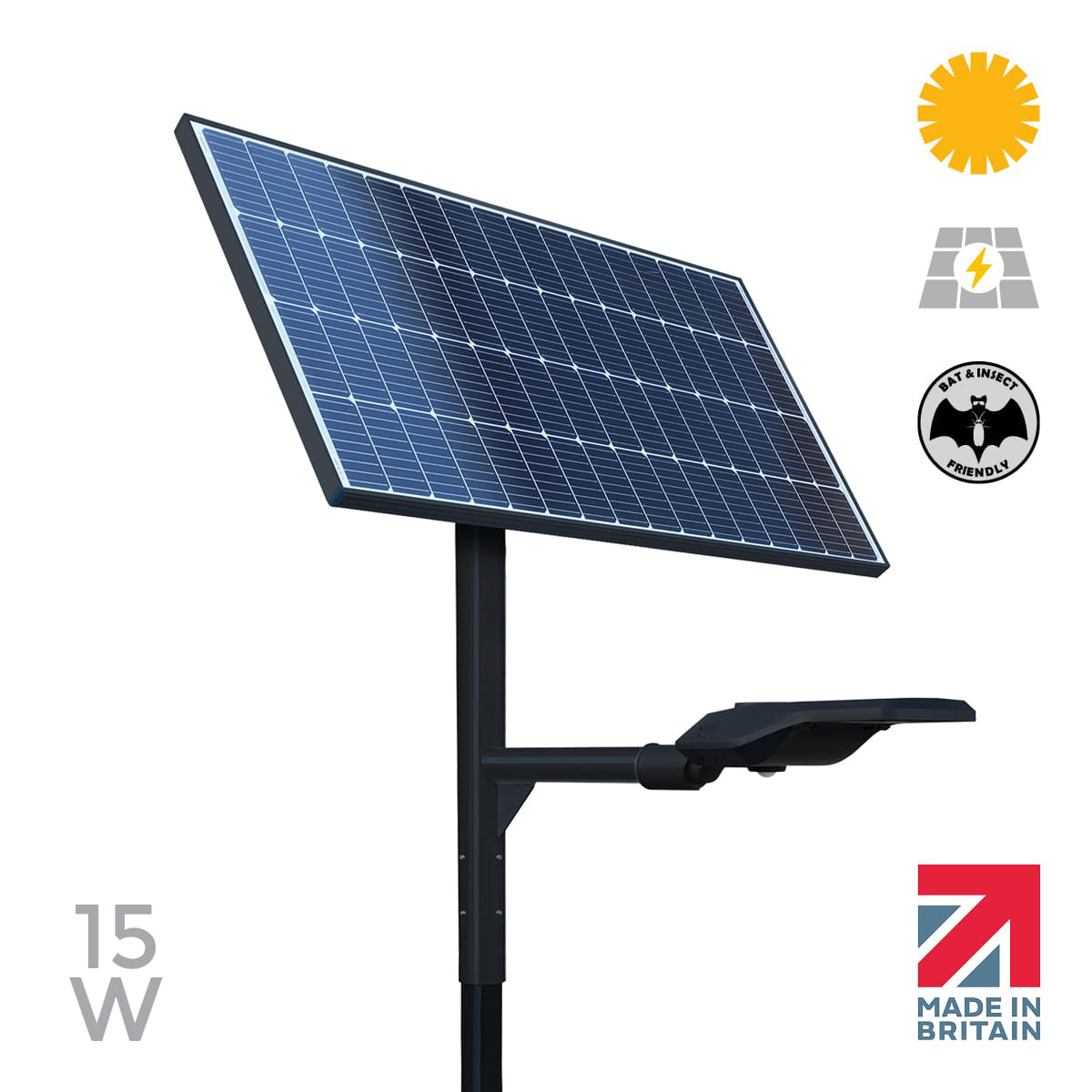

Close-Up Image of the UK Manufactured LED Solar Street Light System with Photocell and PIR sensor for dusk to dawn operation.

The GemSun 15W is a complete solar street light system designed and manufactured for the UK market. (Note: We manufacture solar street light systems for around the world so please call our team for a country specific proposal).

Offering a cost-effective dusk till dawn solution for UK roads. The GemSun 15W can be retrofitted to new or existing columns. Our bespoke column battery and solar controller fitted at the base of the column inside the access door to provide easy monitoring and a future proof design. Solar panel bracket 360 degree rotatable on install with adjustable tilt bracket to optimize the collection of solar energy to exact UK Location.

Supplied with our DC 15W Vesper LED street light complete with 12V DC PIR and 12V DC Photocell.

Request a consultation

Gallery

Luminaire for UK Made 15W LED Solar Street Light System with Photocell, PIR sensor, and choice of optics.

Adjustable PV Panel for UK Made 15W LED Solar Street Light System with 360 degree rotation and 30 degree tilt.

LiFePO4 battery and smart controller for UK Made 15W LED Solar Street Light System.

Close-Up Image of the UK Manufactured 15W LED Solar Street Light System with Photocell and PIR sensor for dusk to dawn operation.

Datasheet

Install Guide

Photometry

Images

BIM files

Code	Description	LED Rating (lm)	Total Power (W)	Lum. Flux (lm)	Efficacy (llm/cW)
89mm (No Spigot) Column - 15W LED Solar Street Light System
GSV15-DA-827-200-54-15GH-89-1	GemSun Vesper 15W Solar System 12V 2700K PIR NEMA RAL7024 89 Optic 1	1,984	15	1,746	116
GSV15-DA-830-200-54-15GH-89-1	GemSun Vesper 15W Solar System 12V 3000K PIR NEMA RAL7024 89 Optic 1	1,984	15	1,746	116
GSV15-DA-740-200-54-15GH-89-1	GemSun Vesper 15W Solar System 12V 4000K PIR NEMA RAL7024 89 Optic 1	1,664	15	1,464	98
101mm (No Spigot) Column - 15W LED Solar Street Light System
GSV15-DA-827-200-54-15GH-101-1	GemSun Vesper 15W Solar System 12V 2700K PIR NEMA RAL7024 101 Optic 1	1,984	15	1,746	116
GSV15-DA-830-200-54-15GH-101-1	GemSun Vesper 15W Solar System 12V 3000K PIR NEMA RAL7024 101 Optic 1	1,984	15	1,746	116
GSV15-DA-740-200-54-15GH-101-1	GemSun Vesper 15W Solar System 12V 4000K PIR NEMA RAL7024 101 Optic 1	1,664	15	1,464	98

Legend: Std = Standard. 740 = 70CRI Neutral White (4000K). 830 = 80CRI Warm White (3000K). 827 = 80CRI Extra Warm White (2700K). Nema = 12VDC Nema Socket & 12VDC Photocell. PIR = 12VDC PIR Sensor. Options: Optic 1 = Add ‘-1’ at the end of the code. Optic 2 = Add ‘-2’ at the end of the code. Optic 3 = Add ‘-3’ at the end of the code.

Features & benefits

LED rating 1,984lm (6000K & 4000K).
LED rating 1,664lm (3000K & 2700K).
Luminaire flux 1,746lm (6000K & 4000K).
Luminaire flux 1,464lm (3000K & 2700K).
Total wattage 15W.
Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
IP65/IK08
0 to +40°C operating temperature.
LED life span > 100,000hrs.
Standard weight 34.0kg
Osram LED and Osram Driver.
76mm / 89mm column options.
Aluminium die-casting housing for maximum heat dissipation.
Optimised optics for high uniformity and maximum spacing’s between columns.
Compliant with Dark Skies recommendations (3000K option).
Bat & Insect friendly (2700K option).

Width: 1480mm

Height: 1053mm

Length: 978-1227mm

Weight: 34.0Kg

GemSun Solar Street Light 15W [6000K – Cool White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 15W with 1,984lm LED Rating and minimum Luminaire Flux of 1,746lm from 6000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 175W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 15W LED Solar Street Light System.

GemSun Solar Street Light 15W [4000K – Neutral White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 15W with 1,984lm LED Rating and minimum Luminaire Flux of 1,746lm from 4000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 175W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 15W LED Solar Street Light System.

GemSun Solar Street Light 15W [3000K – Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 15W with 1,664lm LED Rating and minimum Luminaire Flux of 1,464lm from 3000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 175W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 15W LED Solar Street Light System.

GemSun Solar Street Light 15W [2700K – Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 15W with 1,664lm LED Rating and minimum Luminaire Flux of 1,464lm from 2700K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 175W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 15W LED Solar Street Light System.

Notes: Delete as required.
