LED Solar Lighting

GemSun 20W
LED Solar Street Light System

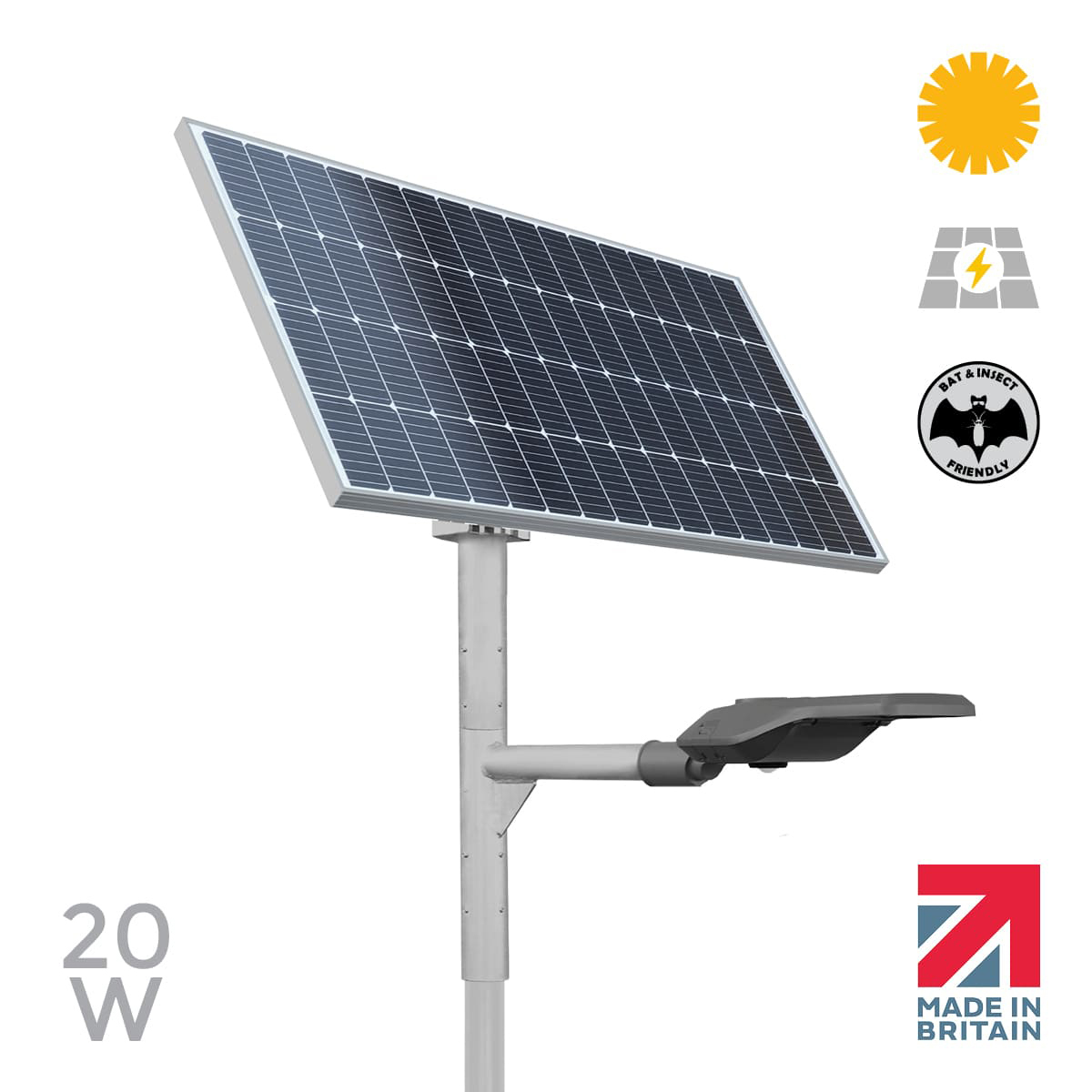

Close-Up Image of the UK Manufactured LED Solar Street Light System with Photocell and PIR sensor for dusk to dawn operation.

The GemSun 20W is a complete solar street light system designed and manufactured for the UK market. (Note: We manufacture solar street light systems for around the world so please call our team for a country specific proposal).

Offering a cost-effective dusk till dawn solution for UK roads. The GemSun 20W can be retrofitted to new or existing columns. Our bespoke column battery and solar controller fitted at the base of the column inside the access door to provide easy monitoring and a future proof design. Solar panel bracket 360 degree rotatable on install with adjustable tilt bracket to optimize the collection of solar energy to exact UK Location.

Supplied with our DC 20W Vesper LED street light complete with 12V DC PIR and 12V DC Photocell.

Gallery

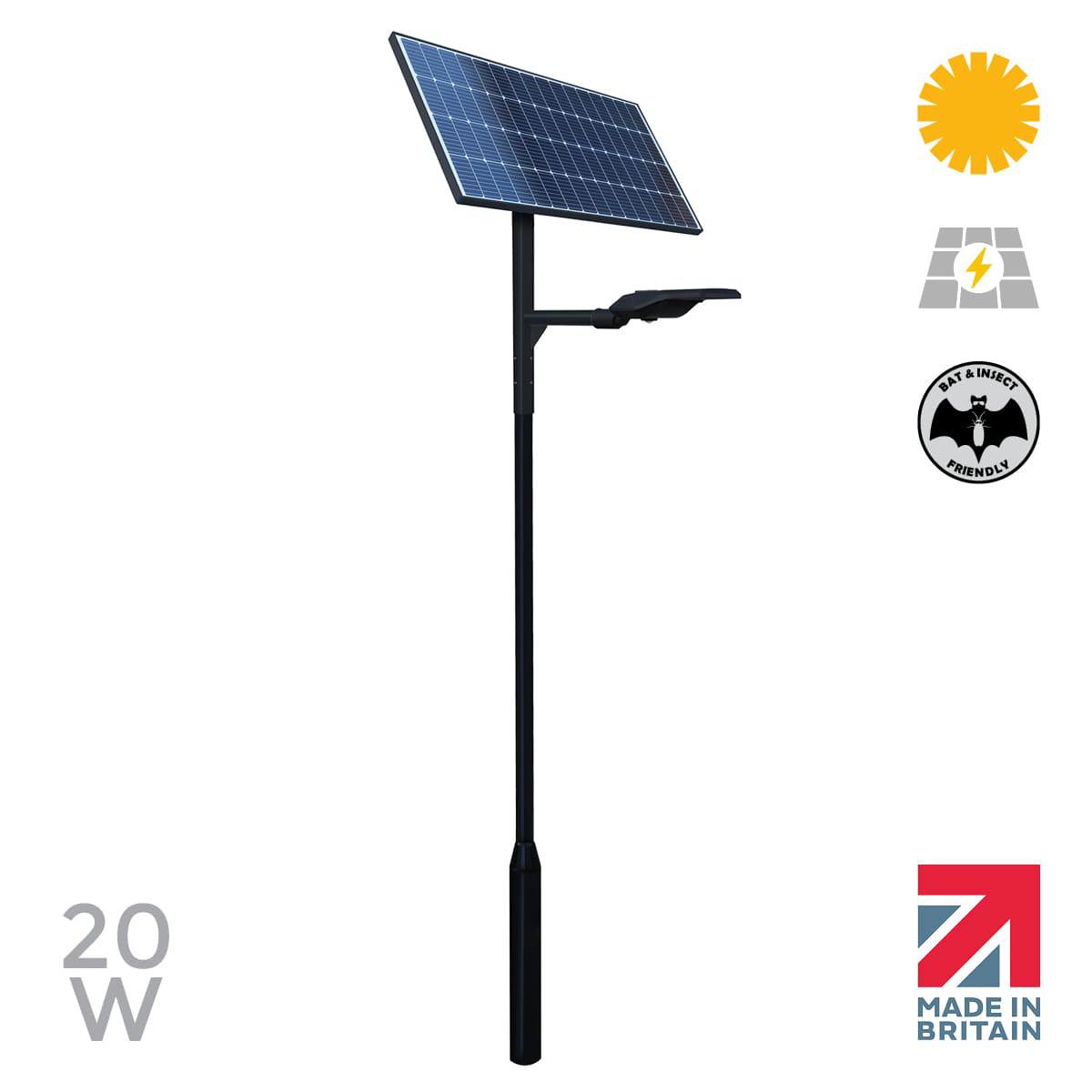

UK Made 20W LED Solar Street Light System with Photocell and PIR sensor for dusk to dawn operation.

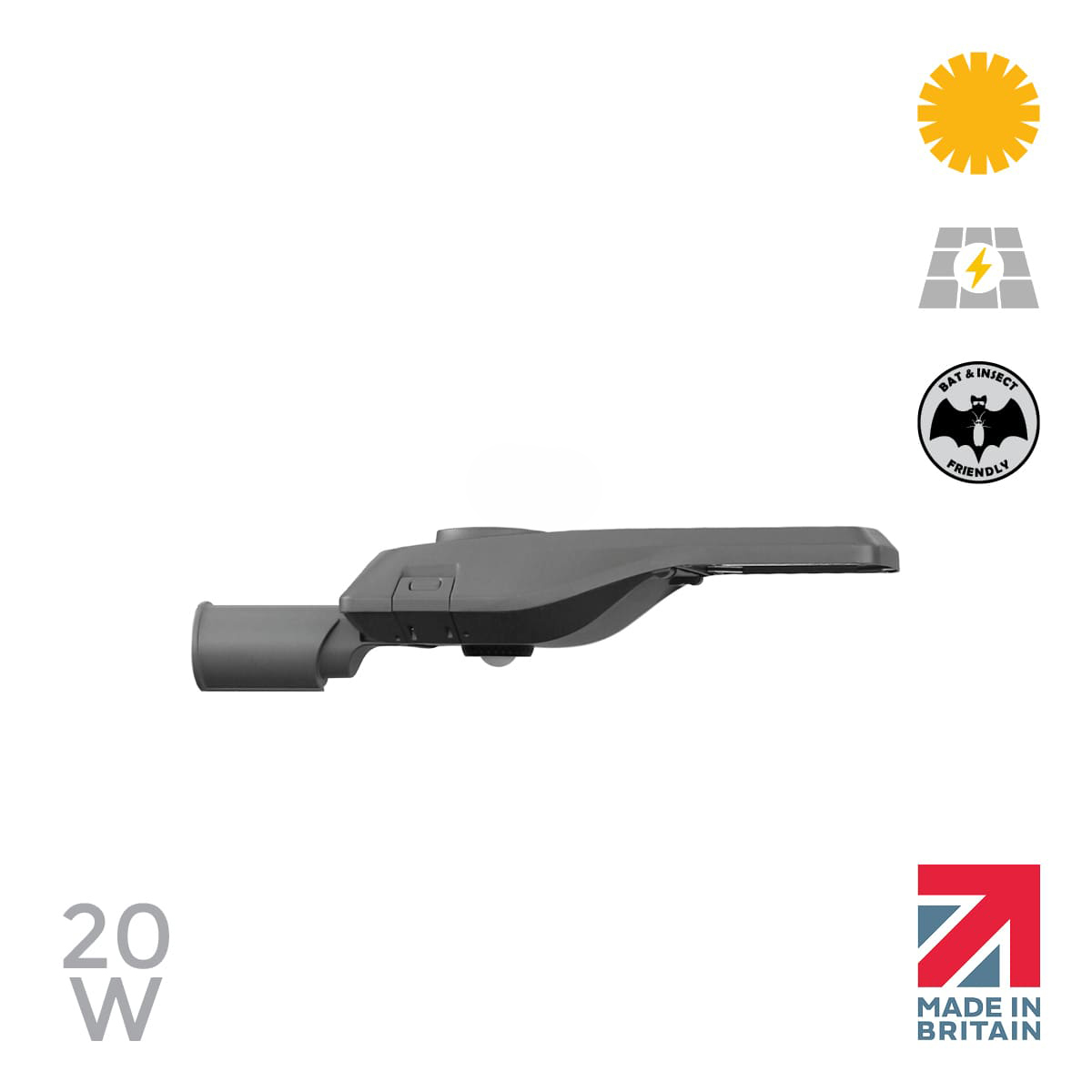

Luminaire for UK Made 20W LED Solar Street Light System with Photocell, PIR sensor, and choice of optics.
Adjustable PV Panel for UK Made 20W LED Solar Street Light System with 360 degree rotation and 30 degree tilt.
LiFePO4 battery and smart controller for UK Made 20W LED Solar Street Light System.

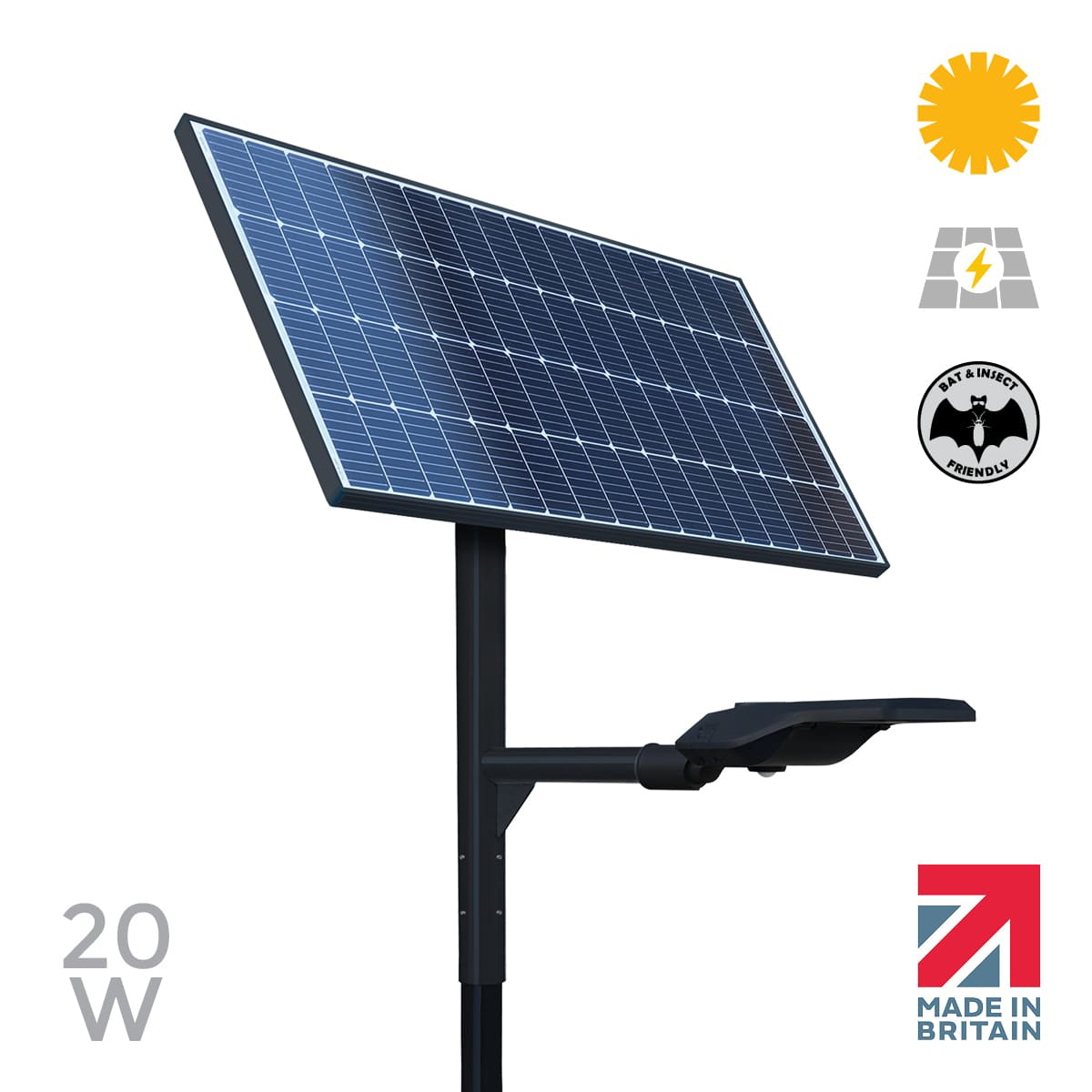

Close-Up Image of the UK Manufactured 20W LED Solar Street Light System with Photocell and PIR sensor for dusk to dawn operation.

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

89mm (No Spigot) Column - 20W LED Solar Street Light System
GSV20-DA-827-200-54-15GH-89-1 GemSun Vesper 20W Solar System 12V 2700K PIR NEMA RAL7024 89 Optic 1 2,640 20 2,323 116
GSV20-DA-830-200-54-15GH-89-1 GemSun Vesper 20W Solar System 12V 3000K PIR NEMA RAL7024 89 Optic 1 2,640 20 2,323 116
GSV20-DA-740-200-54-15GH-89-1 GemSun Vesper 20W Solar System 12V 4000K PIR NEMA RAL7024 89 Optic 1 2,234 20 1,966 98
101mm (No Spigot) Column - 20W LED Solar Street Light System
GSV20-DA-827-200-54-15GH-101-1 GemSun Vesper 20W Solar System 12V 2700K PIR NEMA RAL7024 101 Optic 1 2,640 20 2,323 116
GSV20-DA-830-200-54-15GH-101-1 GemSun Vesper 20W Solar System 12V 3000K PIR NEMA RAL7024 101 Optic 1 2,640 20 2,323 116
GSV20-DA-740-200-54-15GH-101-1 GemSun Vesper 20W Solar System 12V 4000K PIR NEMA RAL7024 101 Optic 1 2,234 20 1,966 98
Legend: Std = Standard. 740 = 70CRI Neutral White (4000K). 830 = 80CRI Warm White (3000K). 827 = 80CRI Extra Warm White (2700K). Nema = 12VDC Nema Socket & 12VDC Photocell. PIR = 12VDC PIR Sensor. Options: Optic 1 = Add ‘-1’ at the end of the code. Optic 2 = Add ‘-2’ at the end of the code. Optic 3 = Add ‘-3’ at the end of the code.

Features & benefits

  • LED rating 2,640lm (6000K & 4000K).
  • LED rating 2,234lm (3000K & 2700K).
  • Luminaire flux 2,323lm (6000K & 4000K).
  • Luminaire flux 1,966lm (3000K & 2700K).
  • Total wattage 20W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • IP65/IK08
  • 0 to +40°C operating temperature.
  • LED life span > 100,000hrs.
  • Standard weight 34.0kg
  • Osram LED and Osram Driver.
  • 76mm / 89mm column options.
  • Aluminium die-casting housing for maximum heat dissipation.
  • Optimised optics for high uniformity and maximum spacing’s between columns.
  • Compliant with Dark Skies recommendations (3000K option).
  • Bat & Insect friendly (2700K option).
Width: 1480mm
Height: 1053mm
Length: 978-1227mm
Weight: 34.0Kg

GemSun 20W [6000K – Cool White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 20W with 2,640lm LED Rating and minimum Luminaire Flux of 2,323lm from 6000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 200W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 20W LED Solar System.

GemSun 20W [4000K – Neutral White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 20W with 2,640lm LED Rating and minimum Luminaire Flux of 2,323lm from 4000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 200W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 20W LED Solar System.

GemSun 20W [3000K – Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 20W with 2,234lm LED Rating and minimum Luminaire Flux of 1,966lm from 3000K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 200W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 20W LED Solar System.

GemSun 20W [2700K – Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7024/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included. 20W with 2,234lm LED Rating and minimum Luminaire Flux of 1,966lm from 2700K High Power LEDs. To contain 12V DC Nema Socket, 12V DC Photocell, 12V DC PIR Sensor. 300mm outreach arm painted to RAL [7024/9005] with [76/89mm] spigot for column entry. Solar PV Panel painted to RAL [7024/9005] with 200W charge, 54A battery and smart controller. Supplied with [5m/6m] column with [root/flange plate] mount and painted to RAL [7024/9005mm] – as Gemma Lighting – GemSun 20W LED Solar System.

Notes: Delete as required.

Residential Roads
Railway Stations
Public Areas
Housing Estates
Footpaths
Car Parks
Bus Stops
Rural Areas
Dark Skies
Bat Friendly
