LED Street Lighting

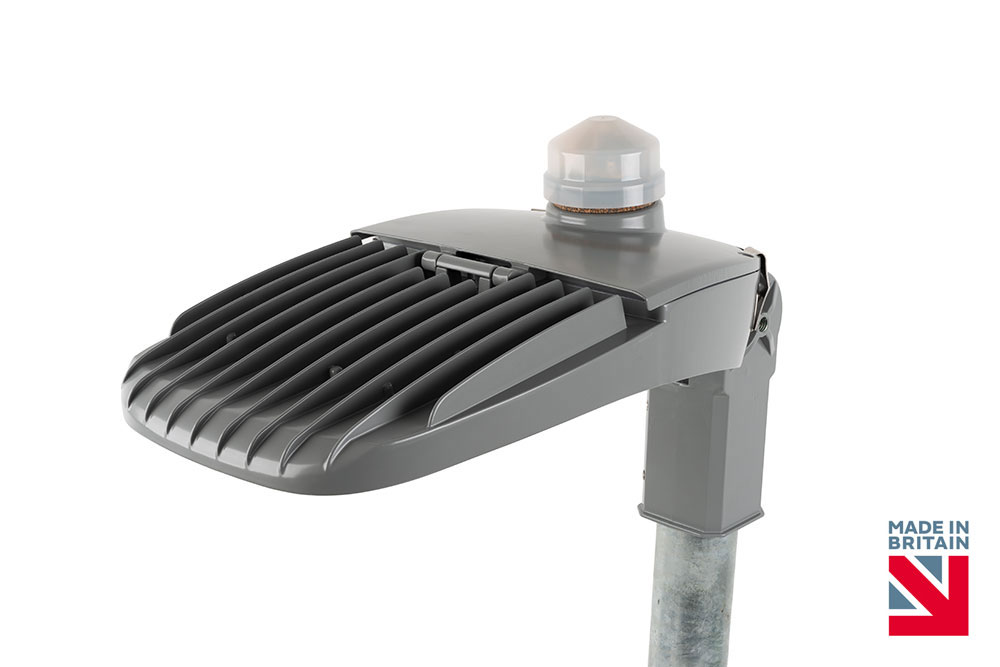

Farlington 50W
LED Street Lighting

The Farlington 50W is a high performance IP65 – IK08 rated street light optimised for high uniformity and maximum spacing between columns.

Manufactured from aluminium die-cast housing, stainless steel fixings and featuring a high impact glass cover for additional protection.

Options available are Colour Temperature, Beam Angle, DALI, NEMA Socket, Spill Shield, Spigot Size/Adaptors, and any painted RAL colour finish.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard - 76mm Spigot
F50-A6C-00G-76 Farlington-50W-LED-AC-6K-Std-Grey-76mm 7,272 50 6,399 128
F50-A6N-00G-76 Farlington-50W-LED-AC-4K-Std-Grey-76mm 7,272 50 6,399 128
F50-A6W-00G-76 Farlington-50W-LED-AC-3K-Std-Grey-76mm 6,144 50 5,407 108
Standard - 60mm Spigot
F50-A6C-00G-60 Farlington-50W-LED-AC-6K-Std-Grey-60mm 7,272 50 6,399 128
F50-A6N-00G-60 Farlington-50W-LED-AC-4K-Std-Grey-60mm 7,272 50 6,399 128
F50-A6W-00G-60 Farlington-50W-LED-AC-3K-Std-Grey-60mm 6,144 50 5,407 108
Standard - 34mm Spigot
F50-A6C-00G-34 Farlington-50W-LED-AC-6K-Std-Grey-34mm 7,272 50 6,399 128
F50-A6N-00G-34 Farlington-50W-LED-AC-4K-Std-Grey-34mm 7,272 50 6,399 128
F50-A6W-00G-34 Farlington-50W-LED-AC-3K-Std-Grey-34mm 6,144 50 5,407 108
Standard - Nema Socket - 76mm Spigot
F50-A6C-05G-76 Farlington-50W-LED-AC-6K-Std-NemaSocket-Grey-76mm 7,272 50 6,399 128
F50-A6N-05G-76 Farlington-50W-LED-AC-4K-Std-NemaSocket-Grey-76mm 7,272 50 6,399 128
F50-A6W-05G-76 Farlington-50W-LED-AC-3K-Std-NemaSocket-Grey-76mm 6,144 50 5,407 108
Standard - Nema Socket - 60mm Spigot
F50-A6C-05G-60 Farlington-50W-LED-AC-6K-Std-NemaSocket-Grey-60mm 7,272 50 6,399 128
F50-A6N-05G-60 Farlington-50W-LED-AC-4K-Std-NemaSocket-Grey-60mm 7,272 50 6,399 128
F50-A6W-05G-60 Farlington-50W-LED-AC-3K-Std-NemaSocket-Grey-60mm 6,144 50 5,407 108
Standard - Nema Socket - 34mm Spigot
F50-A6C-05G-34 Farlington-50W-LED-AC-6K-Std-NemaSocket-Grey-34mm 7,272 50 6,399 128
F50-A6N-05G-34 Farlington-50W-LED-AC-4K-Std-NemaSocket-Grey-34mm 7,272 50 6,399 128
F50-A6W-05G-34 Farlington-50W-LED-AC-3K-Std-NemaSocket-Grey-34mm 6,144 50 5,407 108
Legend: Std = Standard. Nema/SKT = NEMA Socket. DALI = DALI Driver. CMS/SKT = CMS Socket. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). Options: Black Housing = Change 00G to 00B. Optic 1 = Add ‘-1’ at the end of the code. Optic 2 = Add ‘-2’ at the end of the code. Optic 3 = Add ‘-3’ at the end of the code.

Features & benefits

  • LED rating 7,272lm (6000K & 4000K).
  • LED rating 6,144lm (3000K & 2700K).
  • Luminaire flux 6,399lm (6000K & 4000K).
  • Luminaire flux 5,407lm (3000K & 2700K).
  • Total wattage 50W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature.
  • IP65 / IK08 rated.
  • LED life span > 100,000hrs.
  • Standard weight 6.0Kg.
  • Osram LED and Osram Driver.
  • Post–top or side–entry, 34mm / 60mm / 76mm spigot options.
  • Control options available are DALI, NEMA Socket(1), CMS Socket(2), and Spill Shield.
  • Optional highway brackets, adaptors and wall mount brackets available.
  • Any painted RAL colour finish.
  • Aluminium die-casting housing for maximum heat dissipation.
  • Optimised optics for high uniformity and maximum spacing between columns.
  • Compliant with Dark Skies recommendations (3000K + dimmable option).
  • Bat & Insect friendly (2700K + dimmable option).Note:
    (1) Photocell not included with NEMA socket (3 pin), to order separately, use code: LIT-0010.
    (2) CMS cell not included with CMS socket (7 pin), to order separately, contact sales to specify; e.g. DALI.
Width: 240mm
Height: 143mm
Length: 562-601mm
Weight: 6.0Kg

Farlington 50W [6000K – Cool White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7037/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 435mm x 240mm x 143mm. 50W with 7,272lm LED Rating and minimum Luminaire Flux of 6,399lm from 16 x 6000K High Power LEDs @ 245ma. To contain [Nema Socket] and fitted with [34/60/76mm] spigot adaptor – as Gemma Lighting – Farlington 50W.

Farlington 50W [4000K – Neutral White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7037/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 435mm x 240mm x 143mm. 50W with 7,272lm LED Rating and minimum Luminaire Flux of 6,399lm from 16 x 4000K High Power LEDs @ 245ma. To contain [Nema Socket] and fitted with [34/60/76mm] spigot adaptor – as Gemma Lighting – Farlington 50W.

Farlington 50W [3000K – Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7037/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 435mm x 240mm x 143mm. 50W with 6,144lm LED Rating and minimum Luminaire Flux of 5,407lm from 16 x 3000K High Power LEDs @ 245ma. To contain [Nema Socket] and fitted with [34/60/76mm] spigot adaptor – as Gemma Lighting – Farlington 50W.

Farlington 50W [2700K – Extra Warm White]:

IP65 Rated LED Street Light with Aluminium die-casting housing painted to RAL [7037/9005] and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 435mm x 240mm x 143mm. 50W with 6,144lm LED Rating and minimum Luminaire Flux of 5,407lm from 16 x 2700K High Power LEDs @ 245ma. To contain [Nema Socket] and fitted with [34/60/76mm] spigot adaptor – as Gemma Lighting – Farlington 50W.

Notes: Delete as required.

Roads
Railway Stations
Parks & Gardens
Residential
Retail
Security
