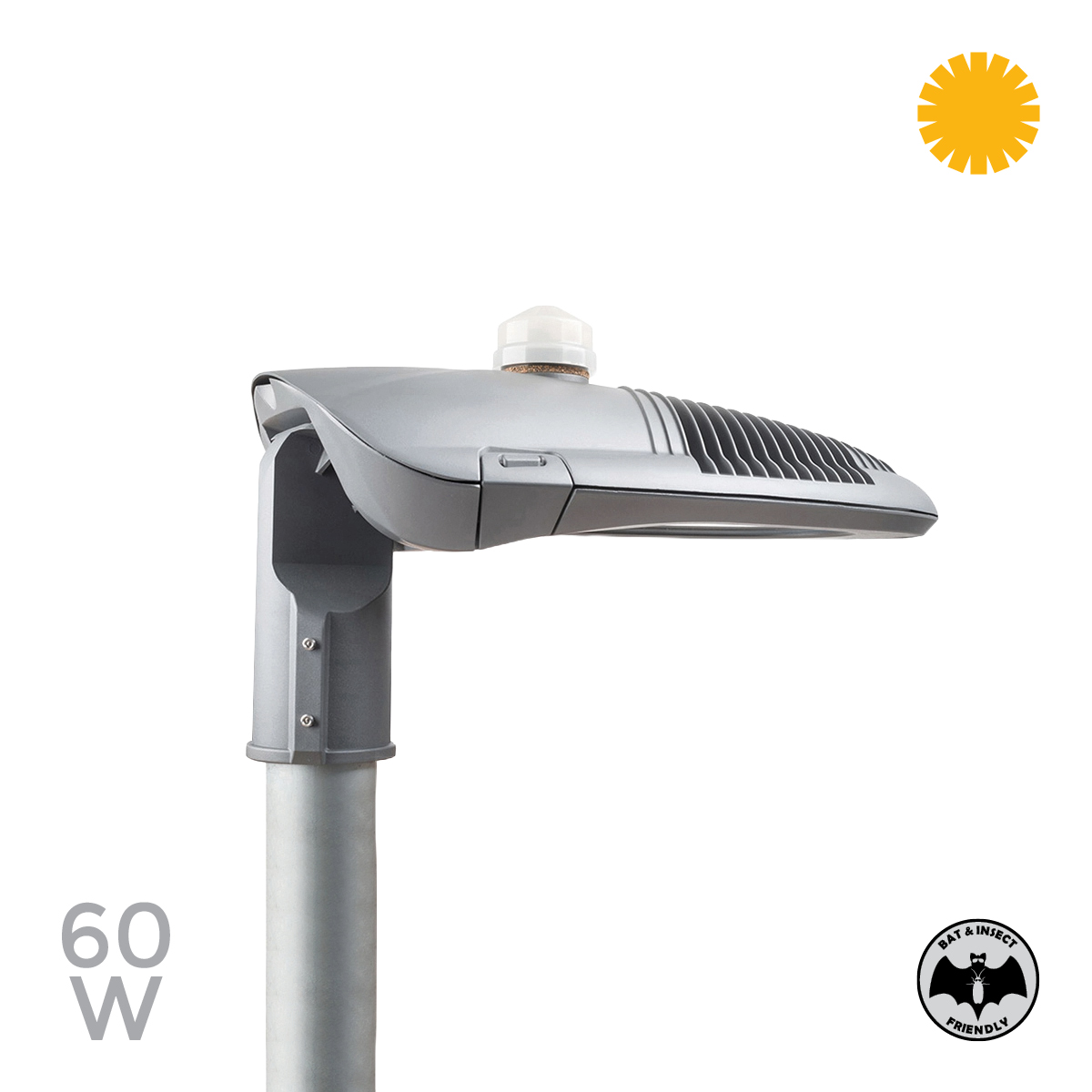

60W LED Street Light
Conquest II

Features & benefits

• LED rating 8,352lm (6000K & 4000K).
• LED rating 7,066lm (3000K & 2700K).
• Luminaire flux 7,517lm (6000K & 4000K).
• Luminaire flux 6,359lm (3000K & 2700K).
• Total wattage 60W.
• Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
• IP65-IP66(2) / IK08 rated.
• -20 to +40 °C operating temperature.
• LED life span > 100,000hrs.
• Standard weight 8.25Kg.
• Osram LED and Osram Driver.
• Post–top or side–entry, 60mm / 76mm spigot options.
• Control options available are DALI, NEMA Socket(1), and Spill Shield.
• Optional highway brackets, adaptors and wall mount brackets available.
• Any painted RAL colour finish.
• Aluminium die-casting housing for maximum heat dissipation.
• Corrosion resistant polyester powder coating.
• Pre-wired with 10m cable for easy installation.
• Optimised optics for high uniformity and maximum spacing between columns.
• Future proof design.
• Compliant with Dark Skies recommendations (3000K + dimmable option).
• Bat & Insect friendly (2700K + dimmable option).Note:
  (1) Photocell not included with NEMA socket (7 pin), to order separately, use code: LIT-0010. CMS cell not included with NEMA socket (7 pin), to order separately, contact sales to specify; e.g. DALI.
  (2) IP66 as standard, IP65 when fitted with NEMA socket.

Conquest 60W [6000K – Cool White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 60W with 8,352lm LED Rating and minimum Luminaire Flux of 7,517lm from 16 x 6000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 60W.

Conquest 60W [4000K – Neutral White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 60W with 8,352lm LED Rating and minimum Luminaire Flux of 7,517lm from 16 x 4000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 60W.

Conquest 60W [3000K – Warm White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 60W with 7,066lm LED Rating and minimum Luminaire Flux of 6,359lm from 16 x 3000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 60W.

Conquest 60W [2700K – Extra Warm White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 60W with 7,066lm LED Rating and minimum Luminaire Flux of 6,359lm from 16 x 2700K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 60W.

Notes: Delete as required.
