LED Street Lighting

Conquest 70W
LED Street Lighting

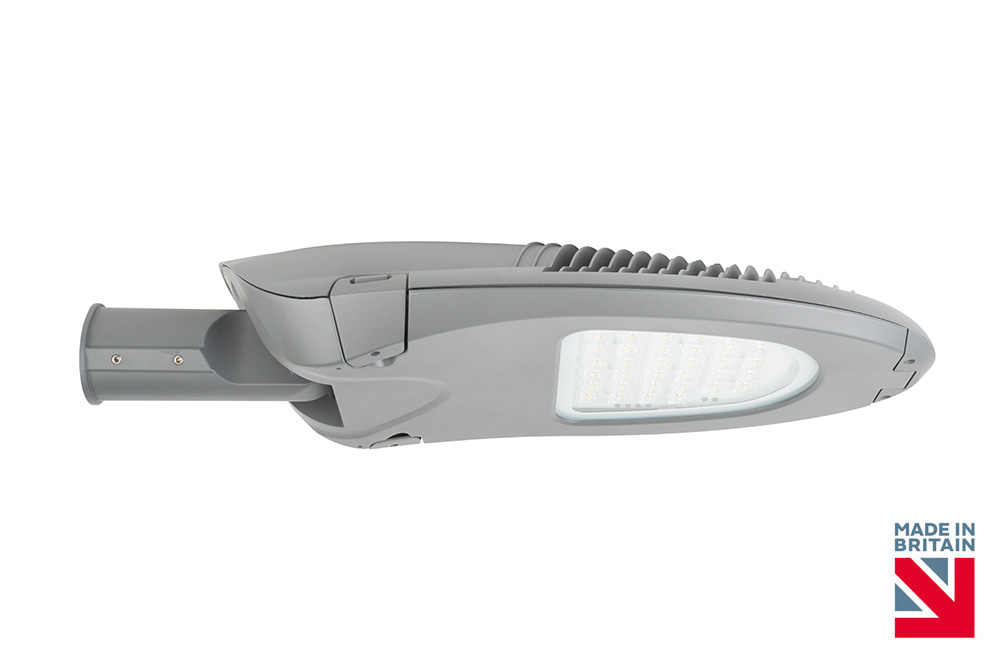

The Conquest 70W is a high performance IP65/IP66 rated street light optimised for high uniformity and maximum spacing’s between columns.

Manufactured with anti-corrosion die cast aluminium, stainless steel fixings and featuring high impact glass for additional protection.

Complete with adjustable spigot for side or column top entry, and 10M of cable for a quick installation.

Options include Nema socket, Dali Driver, LED colour temperature, and spigot size.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Wattage (W)

Lum. Flux (lm)

Lum. Efficacy (lm/W)

Conquest - 70W - Standard - Grey - 76mm Spigot
CQ70-A7C-00G-76 Conquest-70W-LED-AC-6K-Std-Grey-76mm 10,336 70 9,302 133
CQ70-A7N-00G-76 Conquest-70W-LED-AC-4K-Std-Grey-76mm 10,336 70 9,302 133
CQ70-A7W-00G-76 Conquest-70W-LED-AC-3K-Std-Grey-76mm 8,744 70 7,870 112
Conquest - 70W - Standard - Grey - 60mm Spigot
CQ70-A7C-00G-60 Conquest-70W-LED-AC-6K-Std-Grey-60mm 10,336 70 9,302 133
CQ70-A7N-00G-60 Conquest-70W-LED-AC-4K-Std-Grey-60mm 10,336 70 9,302 133
CQ70-A7W-00G-60 Conquest-70W-LED-AC-3K-Std-Grey-60mm 8,744 70 7,870 112
Conquest - 70W - Standard - Grey - Nema Socket - 76mm Spigot
CQ70-A7C-06G-76 Conquest-70W-LED-AC-6K-Std-NemaSocket-Grey-76mm 10,336 70 9,302 133
CQ70-A7N-06G-76 Conquest-70W-LED-AC-4K-Std-NemaSocket-Grey-76mm 10,336 70 9,302 133
CQ70-A7W-06G-76 Conquest-70W-LED-AC-3K-Std-NemaSocket-Grey-76mm 8,744 70 7,870 112
Conquest - 70W - Standard - Grey - Nema Socket - 60mm Spigot
CQ70-A7C-06G-60 Conquest-70W-LED-AC-6K-Std-NemaSocket-Grey-60mm 10,336 70 9,302 133
CQ70-A7N-06G-60 Conquest-70W-LED-AC-4K-Std-NemaSocket-Grey-60mm 10,336 70 9,302 133
CQ70-A7W-06G-60 Conquest-70W-LED-AC-3K-Std-NemaSocket-Grey-60mm 8,744 70 7,870 112
Conquest - 70W - Dali - Grey - 76mm Spigot
CQ70-A7C-20G-76 Conquest-70W-LED-AC-6K-Dali-Grey-76mm 10,336 70 9,302 133
CQ70-A7N-20G-76 Conquest-70W-LED-AC-4K-Dali-Grey-76mm 10,336 70 9,302 133
CQ70-A7W-20G-76 Conquest-70W-LED-AC-3K-Dali-Grey-76mm 8,744 70 7,870 112
Conquest - 70W - Dali - Grey - 60mm Spigot
CQ70-A7C-20G-60 Conquest-70W-LED-AC-6K-Dali-Grey-60mm 10,336 70 9,302 133
CQ70-A7N-20G-60 Conquest-70W-LED-AC-4K-Dali-Grey-60mm 10,336 70 9,302 133
CQ70-A7W-20G-60 Conquest-70W-LED-AC-3K-Dali-Grey-60mm 8,744 70 7,870 112
Conquest - 70W - Dali - Grey - Nema Socket - 76mm Spigot
CQ70-A7C-26G-76 Conquest-70W-LED-AC-6K-Dali-NemaSocket-Grey-76mm 10,336 70 9,302 133
CQ70-A7N-26G-76 Conquest-70W-LED-AC-4K-Dali-NemaSocket-Grey-76mm 10,336 70 9,302 133
CQ70-A7W-26G-76 Conquest-70W-LED-AC-3K-Dali-NemaSocket-Grey-76mm 8,744 70 7,870 112
Conquest - 70W - Dali - Grey - Nema Socket - 60mm Spigot
CQ70-A7C-26G-60 Conquest-70W-LED-AC-6K-Dali-NemaSocket-Grey-60mm 10,336 70 9,302 133
CQ70-A7N-26G-60 Conquest-70W-LED-AC-4K-Dali-NemaSocket-Grey-60mm 10,336 70 9,302 133
CQ70-A7W-26G-60 Conquest-70W-LED-AC-3K-Dali-NemaSocket-Grey-60mm 8,744 70 7,870 112

Legend: Std = Standard. Dali = Dali Driver. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). CW = Cool White. NW = Neutral White. WW = Warm White.

Options: Black Housing = Change 00G to 00B. Optic 1 = Add ‘-1’ at the end of the code. Optic 2 = Add ‘-2’ at the end of the code. Optic 3 = Add ‘-3’ at the end of the code.

NB: Nema Photocell not included with Nema Socket, to purchase separately, use code: LIT-0010.

Features & benefits

  • LED rating 10,336lm (6000K & 4000K).
  • LED rating 8,744lm (3000K).
  • Luminaire flux 9,302lm (46000K & 4000K).
  • Luminaire flux 7,870lm (3000K).
  • Total wattage 70W.
  • 6000K (CW), 4000K (NW) and 3000K (WW) colour temperature.
  • IP65/IP66/IK08 rated.
  • -20 to +40°C operating temperature.
  • LED life span > 100,000hrs.
  • Standard weight 8.25Kg.
  • Osram LED and Osram Driver.
  • Post–top or side–entry, 60/76mm spigot options.
  • Aluminium die-casting housing for maximum heat dissipation.
  • Corrosion resistant polyester powder coating.
  • Optimised optics for high uniformity and maximum spacing’s between columns.
  • Future proof design.
  • Compliant with Dark Skies recommendations (3K option).
  • Bat & Insect friendly (3K option).

*NB: IP66 as standard, IP65 when fitted with Nema socket.

Width: 305mm
Height: 193mm
Length: 717mm
Weight: 8.25Kg

Conquest 70W [6000K – Cool White and 4000K – Neutral White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 70W with 10,336lm LED Rating and minimum Luminaire Flux of 9,302lm from 16 x [4000K / 6000K] High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 70W.

Conquest 70W [3000K – Warm White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 691mm x 305mm x 135mm. 70W with 8,744lm LED Rating and minimum Luminaire Flux of 7,870lm from 16 x 3000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 70W.

Notes: Delete as required.

Roads
Railway Stations
Parks & Gardens
Residential
Retail
Security
