LED Street Lighting

Conquest 80W
LED Street Lighting

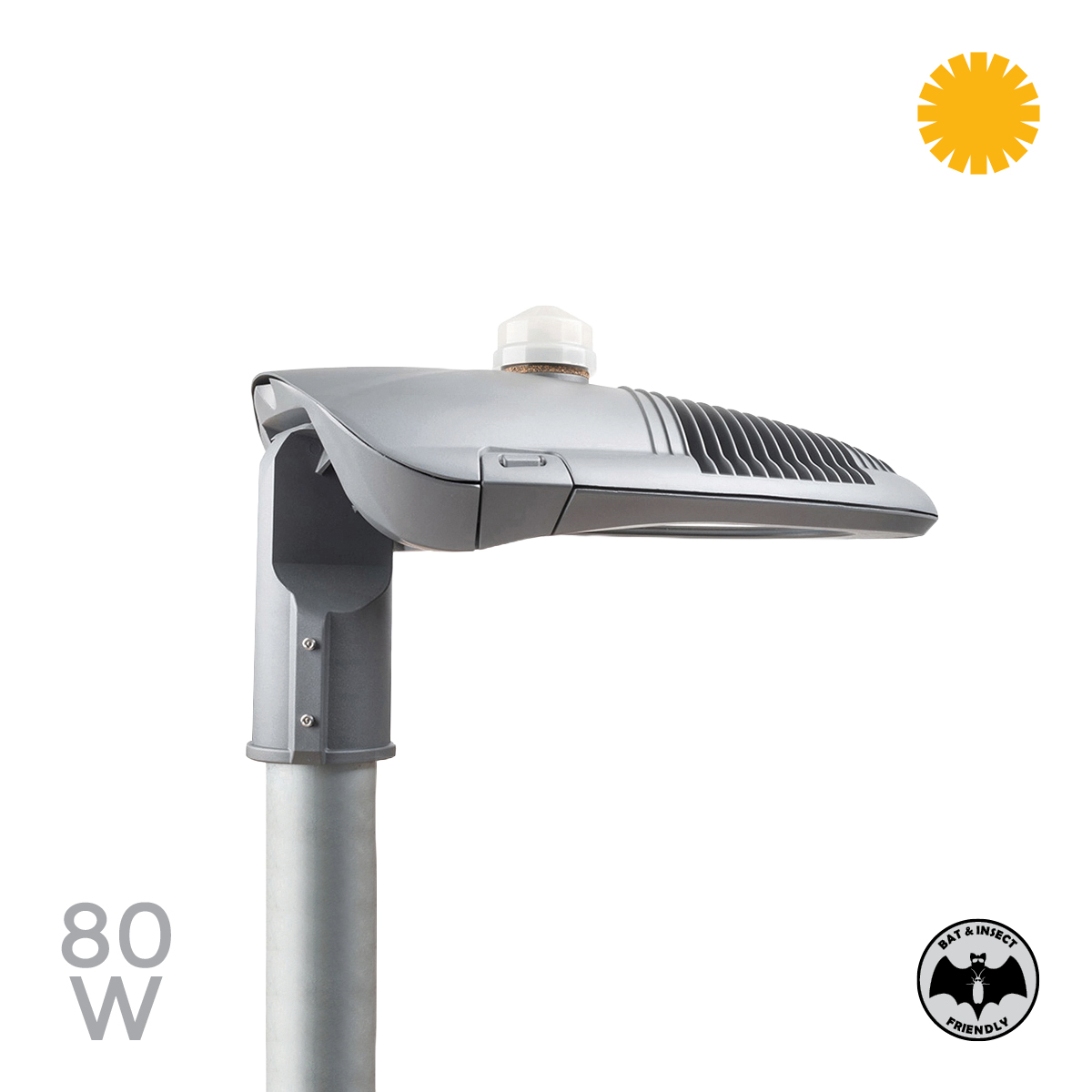

The Conquest 80W is a high performance IP65 / IP66 – IK08 rated street light optimised for high uniformity and maximum spacing between columns.

Manufactured with anti-corrosion die-cast aluminium, stainless steel fixings and high impact glass for additional protection. Complete with adjustable spigot for side or column top entry.

Options available are Colour Temperature, Beam Angle, DALI, NEMA Socket, Spill Shield, Spigot Size/Adaptors, and any painted RAL colour finish.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Conquest - 80W - Standard - Grey - 76mm Spigot
CQ80-A4C-00G-76 Conquest-80W-LED-AC-6K-Std-Grey-76mm 11,584 80 10,194 127
CQ80-A4N-00G-76 Conquest-80W-LED-AC-4K-Std-Grey-76mm 11,584 80 10,194 127
CQ80-A4W-00G-76 Conquest-80W-LED-AC-3K-Std-Grey-76mm 9,800 80 8,624 108
Conquest - 80W - Standard - Grey - 60mm Spigot
CQ80-A4C-00G-60 Conquest-80W-LED-AC-6K-Std-Grey-60mm 11,584 80 10,194 127
CQ80-A4N-00G-60 Conquest-80W-LED-AC-4K-Std-Grey-60mm 11,584 80 10,194 127
CQ80-A4W-00G-60 Conquest-80W-LED-AC-3K-Std-Grey-60mm 9,800 80 8,624 108
Conquest - 80W - Standard - Grey - Nema Socket - 76mm Spigot
CQ80-A4C-06G-76 Conquest-80W-LED-AC-6K-Std-NemaSocket-Grey-76mm 11,584 80 10,194 127
CQ80-A4N-06G-76 Conquest-80W-LED-AC-4K-Std-NemaSocket-Grey-76mm 11,584 80 10,194 127
CQ80-A4W-06G-76 Conquest-80W-LED-AC-3K-Std-NemaSocket-Grey-76mm 9,800 80 8,624 108
Conquest - 70W - Standard - Grey - Nema Socket - 60mm Spigot
CQ80-A4C-06G-60 Conquest-80W-LED-AC-6K-Std-NemaSocket-Grey-60mm 11,584 80 10,194 127
CQ80-A4N-06G-60 Conquest-80W-LED-AC-4K-Std-NemaSocket-Grey-60mm 11,584 80 10,194 127
CQ80-A4W-06G-60 Conquest-80W-LED-AC-3K-Std-NemaSocket-Grey-60mm 9,800 80 8,624 108
Conquest - 80W - Dali - Grey - 76mm Spigot
CQ80-A4C-20G-76 Conquest-80W-LED-AC-6K-Dali-Grey-76mm 11,584 80 10,194 127
CQ80-A4N-20G-76 Conquest-80W-LED-AC-4K-Dali-Grey-76mm 11,584 80 10,194 127
CQ80-A4W-20G-76 Conquest-80W-LED-AC-3K-Dali-Grey-76mm 9,800 80 8,624 108
Conquest - 80W - Dali - Grey - 60mm Spigot
CQ80-A4C-20G-60 Conquest-80W-LED-AC-6K-Dali-Grey-60mm 11,584 80 10,194 127
CQ80-A4N-20G-60 Conquest-80W-LED-AC-4K-Dali-Grey-60mm 11,584 80 10,194 127
CQ80-A4W-20G-60 Conquest-80W-LED-AC-3K-Dali-Grey-60mm 9,800 80 8,624 108
Conquest - 80W - Dali - Grey - Nema Socket - 76mm Spigot
CQ80-A4C-26G-76 Conquest-80W-LED-AC-6K-Dali-NemaSocket-Grey-76mm 11,584 80 10,194 127
CQ80-A4N-26G-76 Conquest-80W-LED-AC-4K-Dali-NemaSocket-Grey-76mm 11,584 80 10,194 127
CQ80-A4W-26G-76 Conquest-80W-LED-AC-3K-Dali-NemaSocket-Grey-76mm 9,800 80 8,624 108
Conquest - 80W - Dali - Grey - Nema Socket - 60mm Spigot
CQ80-A4C-26G-60 Conquest-80W-LED-AC-6K-Dali-NemaSocket-Grey-60mm 11,584 80 10,194 127
CQ80-A4N-26G-60 Conquest-80W-LED-AC-4K-Dali-NemaSocket-Grey-60mm 11,584 80 10,194 127
CQ80-A4W-26G-60 Conquest-80W-LED-AC-3K-Dali-NemaSocket-Grey-60mm 9,800 80 8,624 108
Legend: Std = Standard. Dali = Dali Driver. NEMA/Skt = Nema Socket. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). Options: Black Housing = Change 00G to 00B. Optic 1 = Add ‘-1’ at the end of the code. Optic 2 = Add ‘-2’ at the end of the code. Optic 3 = Add ‘-3’ at the end of the code. NB: Nema Photocell not included with Nema Socket, to purchase separately, use code: LIT-0010.

Features & benefits

  • LED rating 11,584lm (6000K & 4000K).
  • LED rating 9,800lm (3000K & 2700K).
  • Luminaire flux 10,194lm (6000K & 4000K).
  • Luminaire flux 8,624lm (3000K & 2700K).
  • Total wattage 80W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • IP65-IP66(2) / IK08 rated.
  • -20 to +40 °C operating temperature.
  • LED life span > 100,000hrs.
  • Standard weight 14.0Kg.
  • Osram LED and Osram Driver.
  • Post–top or side–entry, 60mm / 76mm spigot options.
  • Control options available are DALI, NEMA Socket(1), and Spill Shield.
  • Optional highway brackets, adaptors and wall mount brackets available.
  • Any painted RAL colour finish.
  • Aluminium die-casting housing for maximum heat dissipation.
  • Corrosion resistant polyester powder coating.
  • Pre-wired with 10m cable for easy installation.
  • Optimised optics for high uniformity and maximum spacing between columns.
  • Future proof design.
  • Compliant with Dark Skies recommendations (3000K + dimmable option).
  • Bat & Insect friendly (2700K + dimmable option).Note:
    (1) Photocell not included with NEMA socket (7 pin), to order separately, use code: LIT-0010. CMS cell not included with NEMA socket (7 pin), to order separately, contact sales to specify; e.g. DALI.
    (2) IP66 as standard, IP65 when fitted with NEMA socket.
Width: 305mm
Height: 193mm
Length: 717mm
Weight: 8.25Kg

Conquest 80W [6000K – Cool White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 830mm x 385mm x 234mm. 80W with 11,584lm LED Rating and minimum Luminaire Flux of 10,194lm from 16 x 6000K  High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 80W.

Conquest 80W [4000K – Neutral White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 830mm x 385mm x 234mm. 80W with 11,584lm LED Rating and minimum Luminaire Flux of 10,194lm from 16 x 4000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 80W.

Conquest 80W [3000K – Warm White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 830mm x 385mm x 234mm. 80W with 9,800lm LED Rating and minimum Luminaire Flux of 8,624lm from 16 x 3000K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 80W.

Conquest 80W [2700K – Extra Warm White]:

IP65/IP66 Rated LED Street Light with Aluminium die-casting housing and IK08 High Impact glass. Power off protection, 10KV Surge protection and Open Circuit Protection included – Size: 830mm x 385mm x 234mm. 80W with 9,800lm LED Rating and minimum Luminaire Flux of 8,624lm from 16 x 2700K High Power LEDs @ 365ma. To contain [Nema Socket] and fitted with [60/76mm] spigot adaptor – as Gemma Lighting – Conquest 80W.

Notes: Delete as required.
