LED Wall Mounted Lighting

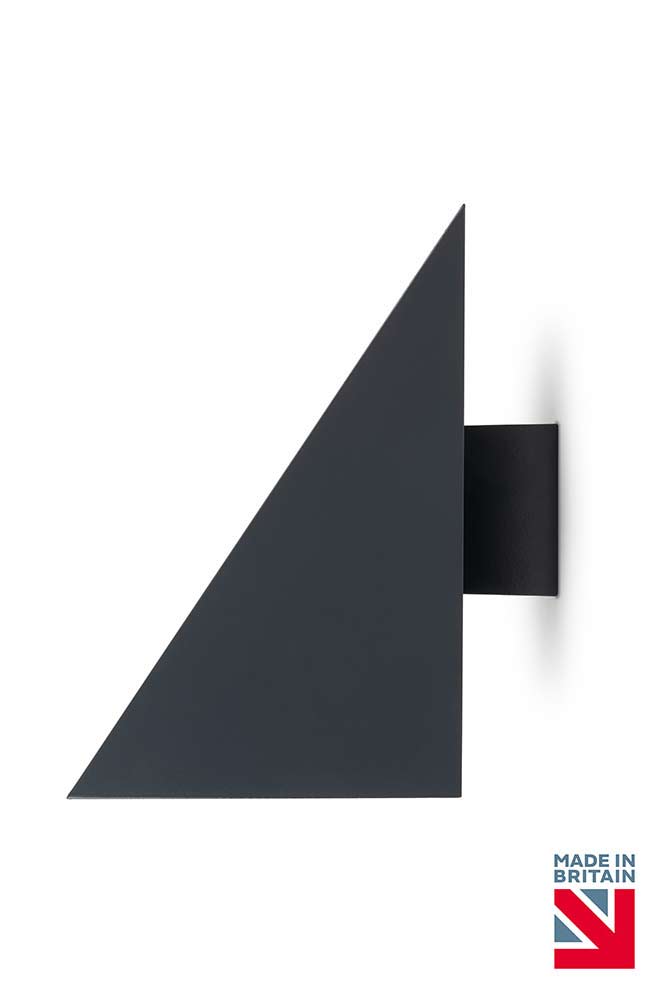

Mayfair 15W
LED Wall Mounted Light

The Mayfair 15W is the perfect combination of aesthetic appeal and optimum illumination performance with an IP65 – IK08 rating.

Manufactured in the UK with the latest Osram LEDs and a choice of 4 optics to create the perfect lighting design.

Options include Colour Temperature, Beam Angle, DALI, Mini Photocell, 3hr Emergency, Spill Shield, and any painted RAL colour finish.

Bat and Insect friendly lighting, compliant with Dark Skies recommendations when specified in 3000K or warmer and with a DALI dimmable control option.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard - Graphite Grey
MF15-A1C-00GH-1 Mayfair - 15W - LED - AC - 6K - Std - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-00GH-1 Mayfair - 15W - LED - AC - 4K - Std - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-00GH-1 Mayfair - 15W - LED - AC - 3K - Std - RAL7024 - Optic 1 1,960 15 1,764 118
Standard - Graphite Grey - Emergency
MF15-A1C-01GH-1 Mayfair - 15W - LED - AC - 6K - Std - E3 - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-01GH-1 Mayfair - 15W - LED - AC - 4K - Std - E3 - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-01GH-1 Mayfair - 15W - LED - AC - 3K - Std - E3 - RAL7024 - Optic 1 1,960 15 1,764 118
Standard - Graphite Grey - Mini Photocell
MF15-A1C-04GH-1 Mayfair - 15W - LED - AC - 6K - Std - M/Photocell - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-04GH-1 Mayfair - 15W - LED - AC - 4K - Std - M/Photocell - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-04GH-1 Mayfair - 15W - LED - AC - 3K - Std - M/Photocell - RAL7024 - Optic 1 1,960 15 1,764 118
Standard - Graphite Grey - Mini Photocell - Emergency
MF15-A1C-10GH-1 Mayfair - 15W - LED - AC - 6K - Std - E3 - M/Photocell - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-10GH-1 Mayfair - 15W - LED - AC - 4K - Std - E3 - M/Photocell - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-10GH-1 Mayfair - 15W - LED - AC - 3K - Std - E3 - M/Photocell - RAL7024 - Optic 1 1,960 15 1,764 118
Dali - Graphite Grey
MF15-A1C-20GH-1 Mayfair - 15W - LED - AC - 6K - Dali - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-20GH-1 Mayfair - 15W - LED - AC - 4K - Dali - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-20GH-1 Mayfair - 15W - LED - AC - 3K - Dali - RAL7024 - Optic 1 1,960 15 1,764 118
Dali - Graphite Grey - Dali/Emergency
MF15-A1C-32GH-1 Mayfair - 15W - LED - AC - 6K - Dali - Dali/E3 - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1N-32GH-1 Mayfair - 15W - LED - AC - 4K - Dali - Dali/E3 - RAL7024 - Optic 1 2,310 15 2,079 139
MF15-A1W-32GH-1 Mayfair - 15W - LED - AC - 3K - Dali - Dali/E3 - RAL7024 - Optic 1 1,960 15 1,764 118
Note: Luminaire will continue to work at 75% for 3Hrs in emergency mode. Legend: Std = Standard. M/Photo = Mini Photocell. Dali = Dali Driver. Dali/E3 = Dali Emergency. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K). Options: Optic 2 = Change 'GH-xx-1' to 'GH-xx-2'. Optic 3 = Change 'GH-xx-1' to 'GH-xx-3'. Optic 4 = Change 'GH-xx-1' to 'GH-xx-4'.

Features & benefits

  • LED rating 2,310lm (6000K & 4000K).
  • LED rating 1,960lm (3000K & 2700K).
  • Luminaire flux 2,079lm (6000K & 4000K).
  • Luminaire flux 1,764lm (3000K & 2700K).
  • Total wattage 15W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK08 rated.
  • LED life span > 100,000hrs.
  • Osram LED and Osram Driver.
  • Easy access to LED and Driver via a removable base plate.
  • Control options available are DALI, Mini Photocell, 3hr Emergency, and Spill Shield (FIX-0488).
  • Luminaire body made of die-cast aluminium.
  • Choice of 4 optics for the perfect lighting design.
  • Optional column clamp bracket, flush wall bracket, or 300mm outreach arm bracket available separately.
  • Compliant with Dark Skies recommendations (3000K + dimmable option).
  • Bat & Insect friendly (2700K + dimmable option).
Width: 214mm
Height: 320mm
Length: 213mm
Weight: 6.0kg

Mayfair 15W [6000K – Cool White]:

IP65 / IK08 Architectural LED wall mounted luminaire with a choice of 4 optics for optimum illumination performance. UK made with Osram LEDs and [Dali] driver. Size: 213mm x 214mm x 320mm. 15W fitted with 6000K LEDs and Optic [1 / 2 / 3 / 4] with 2,310lm LED rating and minimum Luminaire Flux of 2,079lm. To contain [Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Mayfair 15W.

Mayfair 15W [4000K – Neutral White]:

IP65 / IK08 Architectural LED wall mounted luminaire with a choice of 4 optics for optimum illumination performance. UK made with Osram LEDs and [Dali] driver. Size: 213mm x 214mm x 320mm. 15W fitted with 4000K LEDs and Optic [1 / 2 / 3 / 4] with 2,310lm LED rating and minimum Luminaire Flux of 2,079lm. To contain [Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Mayfair 15W.

Mayfair 15W [3000K – Warm White]:

IP65 / IK08 Architectural LED wall mounted luminaire with a choice of 4 optics for optimum illumination performance. UK made with Osram LEDs and [Dali] driver. Size: 213mm x 214mm x 320mm. 15W fitted with 3000K LEDs and Optic [1 / 2 / 3 / 4] with 1,960lm LED rating and minimum Luminaire Flux of 1,764lm. To contain [Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Mayfair 15W.

Mayfair 15W [2700K – Extra Warm White]:

IP65 / IK08 Architectural LED wall mounted luminaire with a choice of 4 optics for optimum illumination performance. UK made with Osram LEDs and [Dali] driver. Size: 213mm x 214mm x 320mm. 15W fitted with 2700K LEDs and Optic [1 / 2 / 3 / 4] with 1,960lm LED rating and minimum Luminaire Flux of 1,764lm. To contain [Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Mayfair 15W.

Notes: Delete as required.

Pathways
Office Buildings
Walkways
Perimeter Lighting
Security
Amenity
