LED Wall Mounted Lighting

Portchester 15W
Circular Clear LED Wall Mounted

The Portchester Clear is a classic and stylish IP65 – IK08 rated vandal resistant circular LED bulkhead.

Manufactured from die-cast aluminium and fitted with a strong UV stabilised polycarbonate lens, the Portchester remains robust whilst offering a subtle diffused light.

Options available are DALI, Microwave Sensor, Mini Photocell, 3hr Emergency, 110V Operation, and any painted RAL colour finish.

Gallery

Datasheet

Install Guide

Photometry

Images

BIM files

Code Description

LED Rating (lm)

Total Power (W)

Lum. Flux (lm)

Efficacy (llm/cW)

Standard - Black
PC15-A3C-00B Portchester - Clear - 15W - LED - AC - 6K - Std - Black 1,782 15 1,426 95
PC15-A3N-00B Portchester - Clear - 15W - LED - AC - 4K - Std - Black 1,782 15 1,426 95
PC15-A3W-00B Portchester - Clear - 15W - LED - AC - 3K - Std - Black 1,508 15 1,206 80
Standard - Grey
PC15-A3C-00G Portchester - Clear - 15W - LED - AC - 6K - Std - Grey 1,782 15 1,426 95
PC15-A3N-00G Portchester - Clear - 15W - LED - AC - 4K - Std - Grey 1,782 15 1,426 95
PC15-A3W-00G Portchester - Clear - 15W - LED - AC - 3K - Std - Grey 1,508 15 1,206 80
Standard - Black - Emergency
PC15-A3C-01B Portchester - Clear - 15W - LED - AC - 6K - Std - E3 - Black 1,782 15 1,426 95
PC15-A3N-01B Portchester - Clear - 15W - LED - AC - 4K - Std - E3 - Black 1,782 15 1,426 95
PC15-A3W-01B Portchester - Clear - 15W - LED - AC - 3K - Std - E3 - Black 1,508 15 1,206 80
Standard - Grey - Emergency
PC15-A3C-01G Portchester - Clear - 15W - LED - AC - 6K - Std - E3 - Grey 1,782 15 1,426 95
PC15-A3N-01G Portchester - Clear - 15W - LED - AC - 4K - Std - E3 - Grey 1,782 15 1,426 95
PC15-A3W-01G Portchester - Clear - 15W - LED - AC - 3K - Std - E3 - Grey 1,508 15 1,206 80
Standard - Black - Microwave
PC15-A3C-02B Portchester - Clear - 15W - LED - AC - 6K - Std - MW - Black 1,782 15 1,426 95
PC15-A3N-02B Portchester - Clear - 15W - LED - AC - 4K - Std - MW - Black 1,782 15 1,426 95
PC15-A3W-02B Portchester - Clear - 15W - LED - AC - 3K - Std - MW - Black 1,508 15 1,206 80
Standard - Grey - Microwave
PC15-A3C-02G Portchester - Clear - 15W - LED - AC - 6K - Std - MW - Grey 1,782 15 1,426 95
PC15-A3N-02G Portchester - Clear - 15W - LED - AC - 4K - Std - MW - Grey 1,782 15 1,426 95
PC15-A3W-02G Portchester - Clear - 15W - LED - AC - 3K - Std - MW - Grey 1,508 15 1,206 80
Standard - Black - Microwave - Emergency
PC15-A3C-03B Portchester - Clear - 15W - LED - AC - 6K - Std - MW - E3 - Black 1,782 15 1,426 95
PC15-A3N-03B Portchester - Clear - 15W - LED - AC - 4K - Std - MW - E3 - Black 1,782 15 1,426 95
PC15-A3W-03B Portchester - Clear - 15W - LED - AC - 3K - Std - MW - E3 - Black 1,508 15 1,206 80
Standard - Grey - Microwave - Emergency
PC15-A3C-03G Portchester - Clear - 15W - LED - AC - 6K - Std - MW - E3 - Grey 1,782 15 1,426 95
PC15-A3N-03G Portchester - Clear - 15W - LED - AC - 4K - Std - MW - E3 - Grey 1,782 15 1,426 95
PC15-A3W-03G Portchester - Clear - 15W - LED - AC - 3K - Std - MW - E3 - Grey 1,508 15 1,206 80
Dali - Black
PC15-A3C-20B Portchester - Clear - 15W - LED - AC - 6K - Dali - Black 1,782 15 1,426 95
PC15-A3N-20B Portchester - Clear - 15W - LED - AC - 4K - Dali - Black 1,782 15 1,426 95
PC15-A3W-20B Portchester - Clear - 15W - LED - AC - 3K - Dali - Black 1,508 15 1,206 80
Dali - Grey
PC15-A3C-20G Portchester - Clear - 15W - LED - AC - 6K - Dali - Grey 1,782 15 1,426 95
PC15-A3N-20G Portchester - Clear - 15W - LED - AC - 4K - Dali - Grey 1,782 15 1,426 95
PC15-A3W-20G Portchester - Clear - 15W - LED - AC - 3K - Dali - Grey 1,508 15 1,206 80
Dali - Black - Emergency
PC15-A3C-21B Portchester - Clear - 15W - LED - AC - 6K - Dali - E3 -Black 1,782 15 1,426 95
PC15-A3N-21B Portchester - Clear - 15W - LED - AC - 4K - Dali - E3 -Black 1,782 15 1,426 95
PC15-A3W-21B Portchester - Clear - 15W - LED - AC - 3K - Dali - E3 -Black 1,508 15 1,206 80
Dali - Grey - Emergency
PC15-A3C-21G Portchester - Clear - 15W - LED - AC - 6K - Dali - E3 - Grey 1,782 15 1,426 95
PC15-A3N-21G Portchester - Clear - 15W - LED - AC - 4K - Dali - E3 - Grey 1,782 15 1,426 95
PC15-A3W-21G Portchester - Clear - 15W - LED - AC - 3K - Dali - E3 - Grey 1,508 15 1,206 80
Dali - Black - Microwave
PC15-A3C-22B Portchester - Clear - 15W - LED - AC - 6K - Dali - MW - Black 1,782 15 1,426 95
PC15-A3N-22B Portchester - Clear - 15W - LED - AC - 4K - Dali - MW - Black 1,782 15 1,426 95
PC15-A3W-22B Portchester - Clear - 15W - LED - AC - 3K - Dali - MW - Black 1,508 15 1,206 80
Dali - Grey - Microwave
PC15-A3C-22G Portchester - Clear - 15W - LED - AC - 6K - Dali - MW - Grey 1,782 15 1,426 95
PC15-A3N-22G Portchester - Clear - 15W - LED - AC - 4K - Dali - MW - Grey 1,782 15 1,426 95
PC15-A3W-22G Portchester - Clear - 15W - LED - AC - 3K - Dali - MW - Grey 1,508 15 1,206 80
Dali - Black - Microwave - Emergency
PC15-A3C-23B Portchester - Clear - 15W - LED - AC - 6K - Dali - MW - E3 -Black 1,782 15 1,426 95
PC15-A3N-23B Portchester - Clear - 15W - LED - AC - 4K - Dali - MW - E3 -Black 1,782 15 1,426 95
PC15-A3W-23B Portchester - Clear - 15W - LED - AC - 3K - Dali - MW - E3 -Black 1,508 15 1,206 80
Dali - Grey - Microwave - Emergency
PC15-A3C-23G Portchester - Clear - 15W - LED - AC - 6K - Dali - MW - E3 - Grey 1,782 15 1,426 95
PC15-A3N-23G Portchester - Clear - 15W - LED - AC - 4K - Dali - MW - E3 - Grey 1,782 15 1,426 95
PC15-A3W-23G Portchester - Clear - 15W - LED - AC - 3K - Dali - MW - E3 - Grey 1,508 15 1,206 80
Legend: Std = Standard. DALI = DALI Driver. E3 = Emergency. MW = Microwave Sensor. M/Cell = Mini Photocell. 6K = Cool White (6000K). 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Features & benefits

  • LED rating 1,782lm (6000K & 4000K).
  • LED rating 1,508lm (3000K & 2700K).
  • Luminaire flux 1,426lm (6000K & 4000K).
  • Luminaire flux 1,206lm (3000K & 2700K).
  • Total wattage 15W.
  • Extra Warm White (2700K), Warm White (3000K), Neutral White (4000K) and Cool White (6000K) colour temperature options.
  • -20 to +40°C operating temperature (Emergency 0 to +40°C).
  • IP65 / IK08 rated.
  • Long life span > 65,000hrs.
  • Standard weight 3.4Kg.
  • Osram LED and Osram Driver.
  • Control options available are DALI, Microwave Sensor, Mini Photocell, 3hr Emergency, and 110V Operation.
  • Any painted RAL colour finish.
  • Non-Hooded Cover for maximum light output.
  • UV stabilised polycarbonate lens for subtle diffused lighting.
  • Tamper proof fixings for increased vandal resistance.
  • Die-cast aluminium body and strong UV stabilised polycarbonate lens.
  • Rear cable entry.
Width: ø360mm

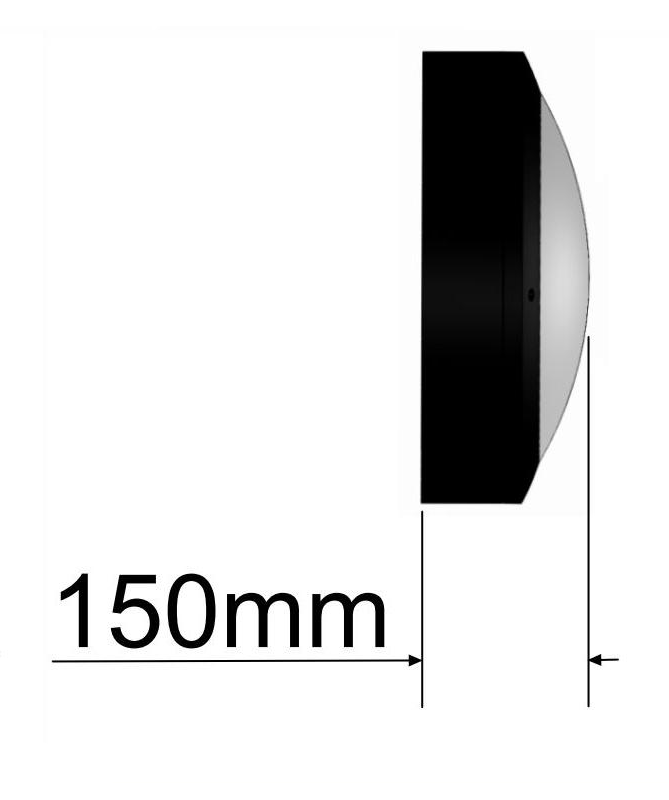

Height: 150mm
Length: N/A
Weight: 3.4kg/3.6kg/3.9kg/4.1kg

Portchester 15W Clear [6000K – Cool White]:

Surface mounted IP65 weather and vandal resistant circular 2D wall mounted light in [Black / Grey] with clear face – Size: 360° x 150mm. 15W with 1,782lm LED rating and minimum Luminaire Flux of 1,426lm from 6000K LEDs. Die-cast aluminium body and strong UV stabilised polycarbonate lens. High Power LED and [Osram LED Driver / Dali Driver]. To contain integral [Microwave Sensor / Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Portchester 15W Clear.

Portchester 15W Clear [4000K – Neutral White]:

Surface mounted IP65 weather and vandal resistant circular 2D wall mounted light in [Black / Grey] with clear face – Size: 360° x 150mm. 15W with 1,782lm LED rating and minimum Luminaire Flux of 1,426lm from 4000K LEDs. Die-cast aluminium body and strong UV stabilised polycarbonate lens. High Power LED and [Osram LED Driver / Dali Driver]. To contain integral [Microwave Sensor / Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Portchester 15W Clear.

Portchester 15W Clear [3000K – Warm White]:

Surface mounted IP65 weather and vandal resistant circular 2D wall mounted light in [Black / Grey] with clear face – Size: 360° x 150mm. 15W with 1,508lm LED rating and minimum Luminaire Flux of 1,206lm from 3000K LEDs. Die-cast aluminium body and strong UV stabilised polycarbonate lens. High Power LED and [Osram LED Driver / Dali Driver]. To contain integral [Microwave Sensor / Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Portchester 15W Clear.

Portchester 15W Clear [2700K – Extra Warm White]:

Surface mounted IP65 weather and vandal resistant circular 2D wall mounted light in [Black / Grey] with clear face – Size: 360° x 150mm. 15W with 1,508lm LED rating and minimum Luminaire Flux of 1,206lm from 2700K LEDs. Die-cast aluminium body and strong UV stabilised polycarbonate lens. High Power LED and [Osram LED Driver / Dali Driver]. To contain integral [Microwave Sensor / Mini Photocell / 3Hr Emergency]. As Gemma Lighting – Portchester 15W Clear.

Notes: Delete as required.

Hospitals
Car Parks
Schools
Hotels
Walkways
Stairwells
