Louvered Reflector Flat Top Bollard
Hamilton 40W

Name: Louvered Reflector Flat Top Bollard - Hamilton 40W
Brand: Gemma Lighting
Availability: InStock

Hamilton 40W LED bollard lights with a louvered reflector and flat-top design

The Hamilton 40W Louvered Reflector Flat Top Bollard delivers high-performance outdoor lighting with energy efficiency and durability. With up to 5,920 lumens LED output and 4,203 lumens of luminaire flux, it provides bright and even illumination. Its efficacy of 105 lumens per watt ensures maximum energy savings.

For a warmer lighting option, the 3000K variant offers 5,120 lumens LED rating, 3,635 lumens flux, and 91 lumens per watt efficacy, creating a softer and inviting glow.

Request a consultation

Gallery

Hamilton 40W flat-top LED bollard lights with a louvered reflector for controlled illumination

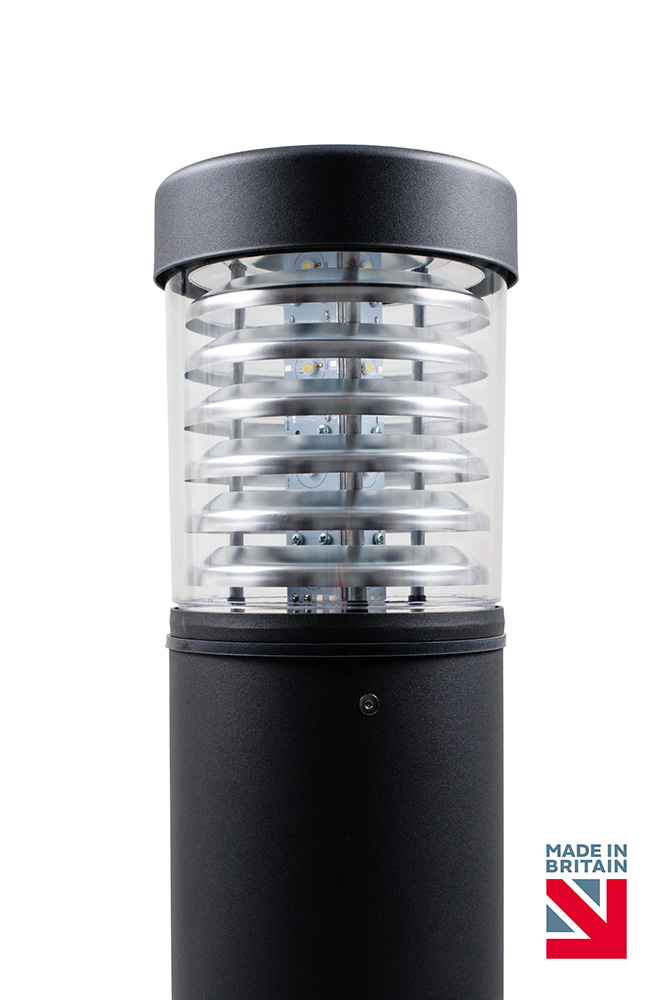

40W LED bollard head with a louvered reflector and flat-top design for efficient lighting

40W black LED bollard light with a root-mount design for secure outdoor installation

40W emergency LED bollard light with a flat-top design for safety and reliability

40W rail LED bollard light with a louvered flat-top design for outdoor applications

Datasheet

Install Guide

Photometry

Images

BIM files

Code	Description	LED Rating (lm)	Total Power (W)	Lum. Flux (lm)	Efficacy (llm/cW)
40W LED Bollard
HB40-A7N-00B	Hamilton-40W-LED-AC-4000K-Std-Black	5,920	40	4,203	105
HB40-A7N-00B	Hamilton-40W-LED-AC-3000K-Std-Black	5,120	40	3,635	91
HB40-A7N-00B	Hamilton-40W-LED-AC-2700K-Std-Black	4,958	40	3,520	88
40W Emergency LED Bollard
HB40-A7N-01B	Hamilton-40W-LED-AC-4000K-Std-E3-Black	5,920	40	4,203	105
HB40-A7N-01B	Hamilton-40W-LED-AC-3000K-Std-E3-Black	5,120	40	3,635	91
HB40-A7N-01B	Hamilton-40W-LED-AC-2700K-Std-E3-Black	4,958	40	3,520	88
40W Mini Photocell LED Bollard
HB40-A7N-04B	Hamilton-40W-LED-AC-4000K-Std-M/Photocell-Black	5,920	40	4,203	105
HB40-A7N-04B	Hamilton-40W-LED-AC-3000K-Std-M/Photocell-Black	5,120	40	3,635	91
HB40-A7N-04B	Hamilton-40W-LED-AC-2700K-Std-M/Photocell-Black	4,958	40	3,520	88
40W Mini Photocell - Emergency LED Bollard
HB40-A7N-10B	Hamilton-40W-LED-AC-4000K-Std-M/Photocell-E3-Black	5,920	40	4,203	105
HB40-A7N-10B	Hamilton-40W-LED-AC-3000K-Std-M/Photocell-E3-Black	5,120	40	3,635	91
HB40-A7N-10B	Hamilton-40W-LED-AC-2700K-Std-M/Photocell-E3-Black	4,958	40	3,520	88
40W PIR LED Bollard (Off / On via presence detector)
HB40-A7N-13B	Hamilton-40W-LED-AC-4000K-Std-PIR-Black	5,920	40	4,203	105
HB40-A7N-13B	Hamilton-40W-LED-AC-3000K-Std-PIR-Black	5,120	40	3,635	91
HB40-A7N-13B	Hamilton-40W-LED-AC-2700K-Std-PIR-Black	4,958	40	3,520	88
40W PIR - Emergency LED Bollard (Off / On via presence detector)
HB40-A7N-14B	Hamilton-40W-LED-AC-4000K-Std-PIR-E3-Black	5,920	40	4,203	105
HB40-A7N-14B	Hamilton-40W-LED-AC-3000K-Std-PIR-E3-Black	5,120	40	3,635	91
HB40-A7N-14B	Hamilton-40W-LED-AC-2700K-Std-PIR-E3-Black	4,958	40	3,520	88
40W Dali LED Bollard
HB40-A7N-20B	Hamilton-40W-LED-AC-4000K-DALI-Black	5,920	40	4,203	105
HB40-A7N-20B	Hamilton-40W-LED-AC-3000K-DALI-Black	5,120	40	3,635	91
HB40-A7N-20B	Hamilton-40W-LED-AC-2700K-DALI-Black	4,958	40	3,520	88
40W Dali - DALI Emergency LED Bollard
HB40-A7N-21B	Hamilton-40W-LED-AC-4000K-DALI-DALI/E3-Black	5,920	40	4,203	105
HB40-A7N-21B	Hamilton-40W-LED-AC-3000K-DALI-DALI/E3-Black	5,120	40	3,635	91
HB40-A7N-21B	Hamilton-40W-LED-AC-2700K-DALI-DALI/E3-Black	4,958	40	3,520	88
40W Dali - Mini Photocell LED Bollard
HB40-A7N-24B	Hamilton-40W-LED-AC-4000K-DALI-M/Photocell-Black	5,920	40	4,203	105
HB40-A7N-24B	Hamilton-40W-LED-AC-3000K-DALI-M/Photocell-Black	5,120	40	3,635	91
HB40-A7N-24B	Hamilton-40W-LED-AC-2700K-DALI-M/Photocell-Black	4,958	40	3,520	88
40W Dali - Mini Photocell - DALI Emergency LED Bollard
HB40-A7N-30B	Hamilton-40W-LED-AC-4000K-DALI-M/Photocell-DALI/E3-Black	5,920	40	4,203	105
HB40-A7N-30B	Hamilton-40W-LED-AC-3000K-DALI-M/Photocell-DALI/E3-Black	5,120	40	3,635	91
HB40-A7N-30B	Hamilton-40W-LED-AC-2700K-DALI-M/Photocell-DALI/E3-Black	4,958	40	3,520	88
40W DALI - PIR LED Bollard (30% On / 100% On via presence detector)
HB40-A7N-33B	Hamilton-40W-LED-AC-4000K-DALI-PIR-Black	5,920	40	4,203	105
HB40-A7N-33B	Hamilton-40W-LED-AC-3000K-DALI-PIR-Black	5,120	40	3,635	91
HB40-A7N-33B	Hamilton-40W-LED-AC-2700K-DALI-PIR-Black	4,958	40	3,520	88
40W Dali - PIR - DALI Emergency LED Bollard (30% On / 100% On via presence detector)
HB40-A7N-34B	Hamilton-40W-LED-AC-4000K-DALI-PIR-DALI/E3-Black	5,920	40	4,203	105
HB40-A7N-34B	Hamilton-40W-LED-AC-3000K-DALI-PIR-DALI/E3-Black	5,120	40	3,635	91
HB40-A7N-34B	Hamilton-40W-LED-AC-2700K-DALI-PIR-DALI/E3-Black	4,958	40	3,520	88
40W AstroDIM - Mini Photocell LED Bollard (100% On / Dim to 30% at night mid point)
HB40-A7N-64B	Hamilton-40W-LED-AC-4000K-Astro-M/Photocell-Black	5,920	40	4,203	105
HB40-A7N-64B	Hamilton-40W-LED-AC-3000K-Astro-M/Photocell-Black	5,120	40	3,635	91
HB40-A7N-64B	Hamilton-40W-LED-AC-2700K-Astro-M/Photocell-Black	4,958	40	3,520	88
40W 110V LED Bollard
HB40-A7N-80B	Hamilton-40W-LED-AC-4000K-110V-Black	5,920	40	4,203	105
HB40-A7N-80B	Hamilton-40W-LED-AC-3000K-110V-Black	5,120	40	3,635	91
HB40-A7N-80B	Hamilton-40W-LED-AC-2700K-110V-Black	4,958	40	3,520	88
40W 12V LED Bollard
HB40-DAN-00B	Hamilton-40W-LED-DC-4000K-12V-Black	5,920	40	4,203	105
HB40-DAW-00B	Hamilton-40W-LED-DC-3000K-12V-Black	5,120	40	3,635	91
HB40-DAX-00B	Hamilton-40W-LED-DC-2700K-12V-Black	4,958	40	3,520	88

Note: Bollard will continue to work at 25% for 3Hrs in emergency mode. Legend: Std = Standard. DALI = DALI Driver. Astro = AstroDIM Driver. M/Photocell = Mini Photocell. PIR = PIR Sensor. E3 = Emergency. 4K = Neutral White (4000K). 3K = Warm White (3000K). 2.7K = Extra Warm White (2700K). 2.2K = Ultra Warm White (2200K).

Key Features & Benefits:

Wattage: 40W
LED Rating (lm): 5,920Lm (4000K), 5,120Lm (3000K) and 4,958Lm(2700K).
Luminaire Flux (lm): 4,203Llm (4000K), 3,635Llm (3000K) and 3,520Llm(2700K).
Luminaire Efficacy (lm/W): 105lm/W (4000K), 91lm/W (3000K) and 88lm/W (2700K).
Material: Die-cast aluminium with UV-stabilised polycarbonate diffuser
Louvre Reflector Design: Optimized for precise light control with minimal upward spill
Colour Temperatures: 2700K, 3000K, 4000K
LED Lifespan: 100,000+ hours
Control Options: DALI, Mini Photocell, AstroDIM, PIR Sensor, 3hr Emergency, 110V Operation, 180° Spill Shield
Mounting: Flange plate or 300mm bolt-on root mount
Security: Tamper-proof fixings
Easy Maintenance: Removable head
Operating Temperature: -20°C to +40°C (Emergency: 0°C to +40°C)
Customisation: Any RAL-painted colour finish
Mini / Short Version Available

Powered by Osram LED and Osram Driver, the Hamilton 40W Louvered Reflector Flat Top Bollard is a high-performance, durable, and efficient lighting solution for commercial and architectural outdoor spaces.

Width: ⌀180mm

Height: 960mm

Length: N/A

Weight: 6.25kg/7.25kg

Hamilton 40W [4000K – Neutral White]:

IP65 Black Flat Head LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 40W with 5,920lm LED rating and minimum Luminaire Flux of 4,203lm from 4000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Hamilton 40W.

Hamilton 40W [3000K – Warm White]:

IP65 Black Flat Head LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 40W with 5,120lm LED rating and minimum Luminaire Flux of 3,635lm from 3000K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Hamilton 40W.

Hamilton 40W [2700K – Extra Warm White]:

IP65 Black Flat Head LED Bollard with aluminium louvres and UV stabilised polycarbonate diffuser – Size 960mm x ø180mm. 40W with 4,958lm LED rating and minimum Luminaire Flux of 3,520lm from 2700K LEDs. IK10 Housing with tamper proof fixings. LED Life span of 100,00hrs using Osram LEDs and Osram Driver. To contain integral [3Hr Emergency / Mini Photocell / PIR Sensor]. As Gemma Lighting – Hamilton 40W.

Notes: Delete as required.
